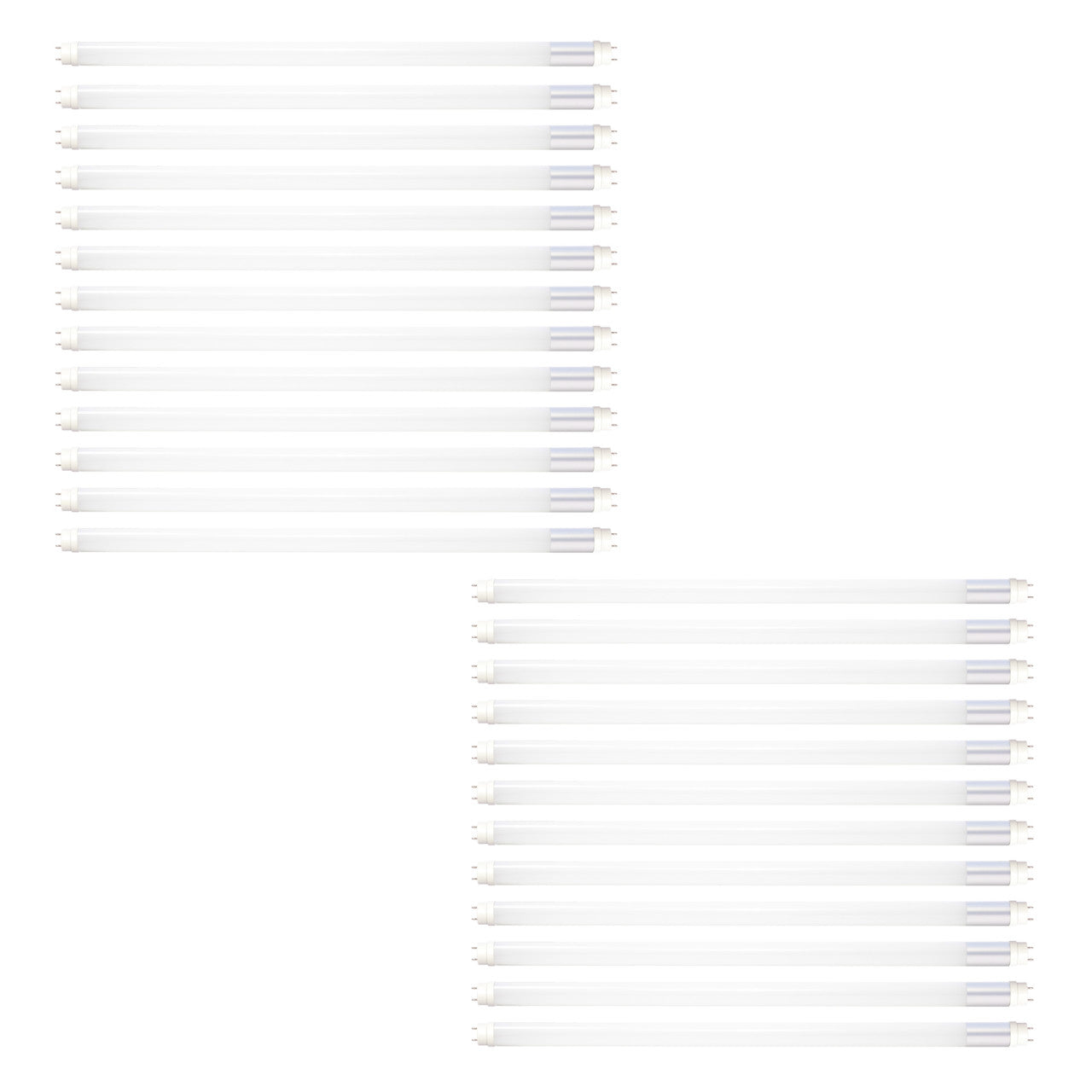

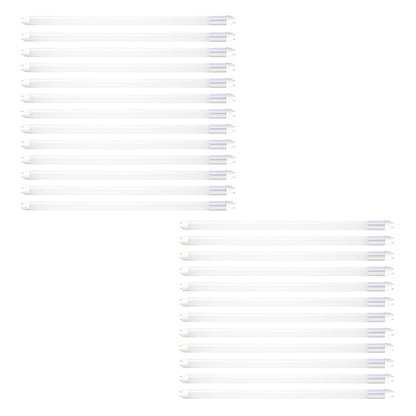

Case of 25 - T8 4ft. LED Tube - 16W - 1600 Lumens - Direct Wire - Single Ended Power - LumeGen

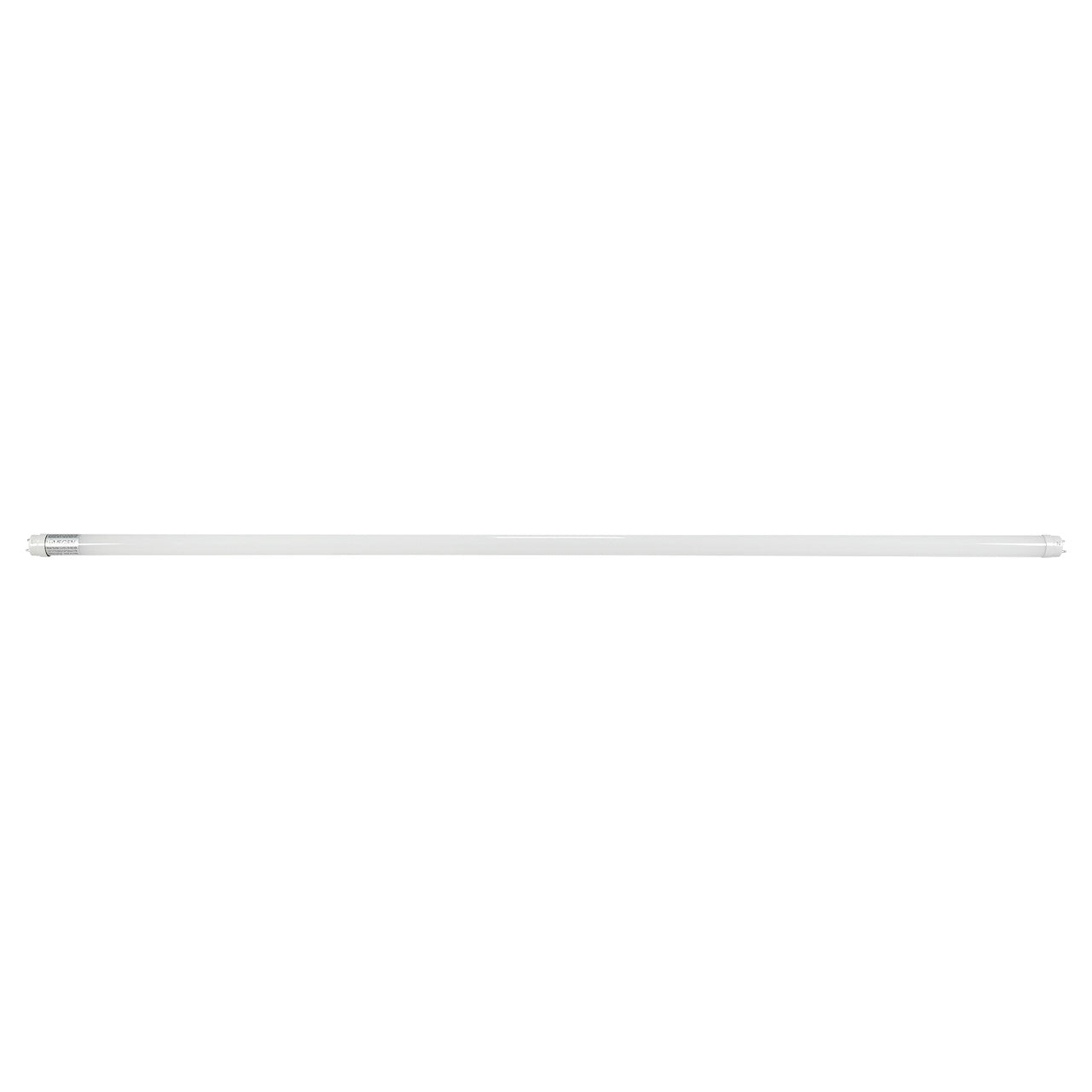

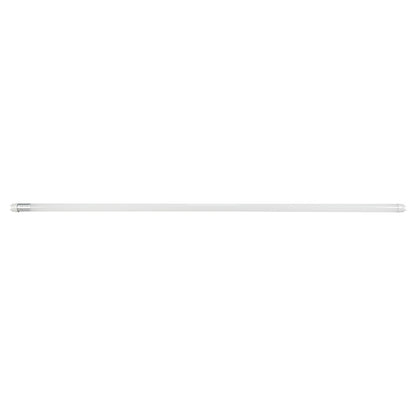

This 4ft. LED T8 Direct Wire Glass Tube is a perfect pick for any commercial or residential setting. LED Tubes are more energy efficient and longer lasting than fluorescent tubes and contain no hazardous materials!
This LED Tube is configured for Single-Ended Power, meaning this tube has both the live and neutral on one end and should be installed with non-shunted socket.
Existing fluorescent ballast must be bypassed for proper operation!
Specifications

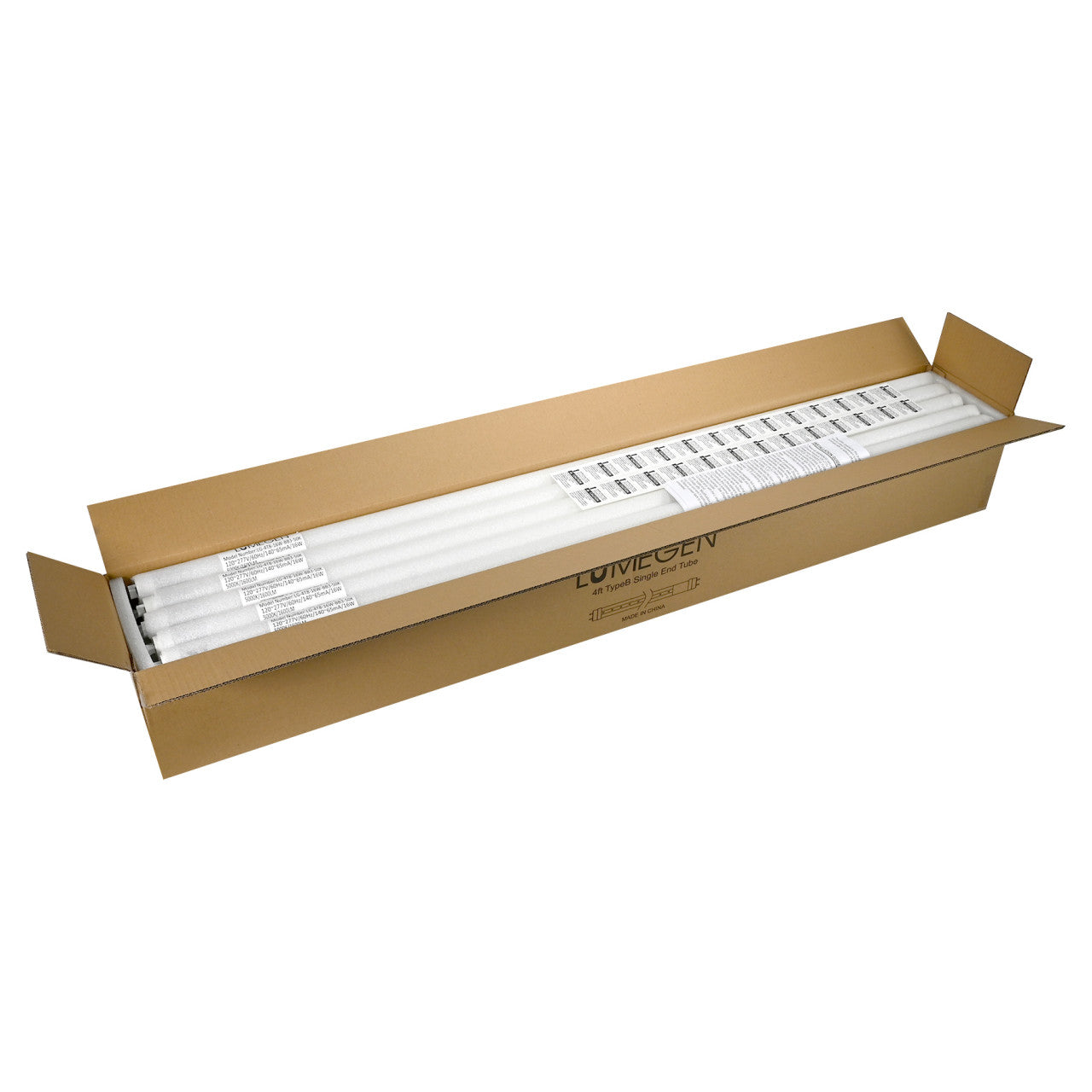

- Case of 25
- Type B
- 4ft. Length
- 16W
- 32W Fluorescent Tube Equivalent
- 1600 Lumens
- Available in 4000K and 5000K Color Temperatures
- 240° Beam Angle
- AC120-277V Input Voltage

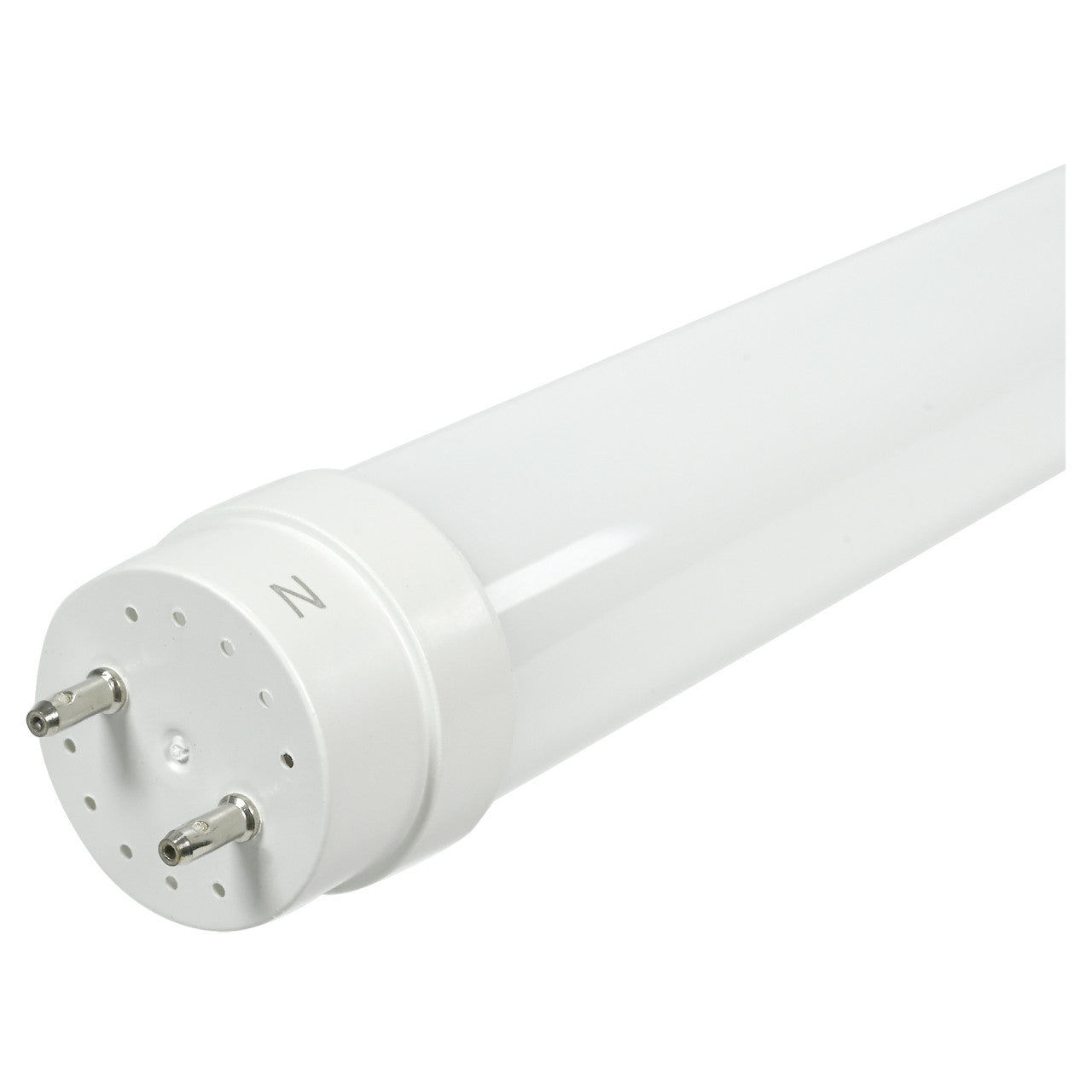

- Single Ended Power
- Frosted Glass lens
- UL Listed
FAQ
Q: Can you put led tube lights in a fluorescent fixture? Can I replace my fluorescent T8 linear bulbs with LEDs?
A: Yes, LED tubes are designed fit in the same sockets as traditional fluorescent tubes however there are two main types of LED tube lamps available - Type A Ballast Compatible and Type B Ballast Bypass.
Type A Ballast Compatible (also known as plug-and-play) are designed to work with the existing fluorescent ballast in the fixture. It is important to know the specific ballast in the fluorescent fixture and ensure compatibility with the LED Tube BEFORE selecting a Type A tube. Not all Type A LED Tubes work with every fluorescent ballast. Ensuring compatibility is vital to safe installation and operation!
Type B Ballast Bypass (also know as direct wire) require the fluorescent ballast to be cut out and removed from the circuit before installation. These tubes CANNOT be installed with a fluorescent ballast in place!
Combination Type AB tubes are hybrid which can be installed as plug-and-play or as ballast bypass. It is important to ensure ballast compatibility for these tubes if planned to use with existing fluorescent ballast. Type AB can be used with or without a ballast. It is ultimately the buyer's preference what they want to do. Type A installation uses the LED Tube + Ballast power for more energy consumption compared to Type B installation only uses the raw tube power and is more energy-efficient.
Q: Can a T8 LED Replace a T12?
A: Yes, a T8 can replace a T12 bulb of the same length and wattage.
Q: What is the lifespan of LED Tubes?
A: LED Tubes last 50,000 hours on average compared to an average of 20,000 hours for fluorescent tubes.
Need more lighting options? Explore flat panels, solar lighting, and more from LumeGen.
Product Specifications
| Certificate | Description |
|---|---|
UL Listed |
UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US. |
