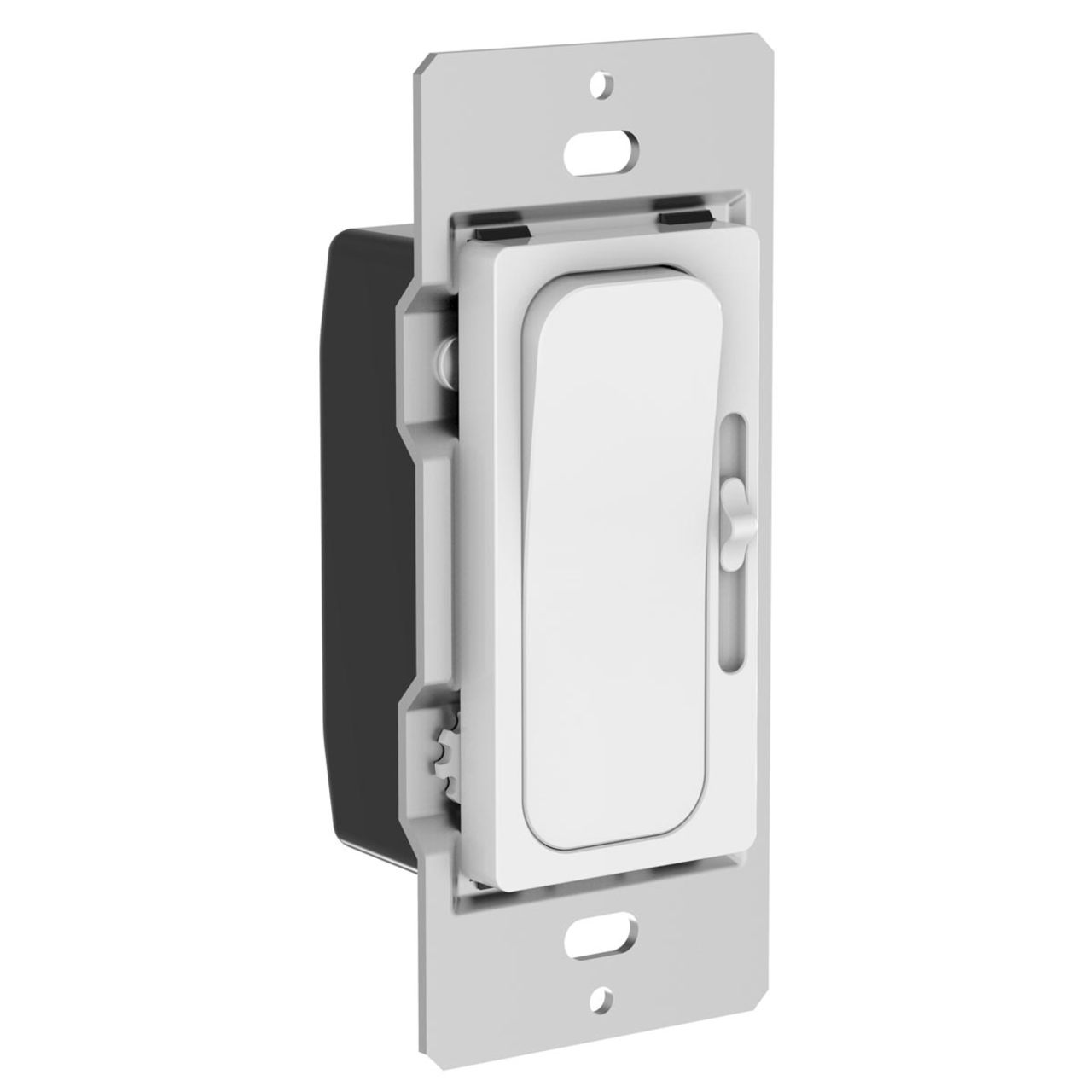

This LED paddle switch slide dimmer works with 0-10V dimmable power supplies or lighting fixtures only and can be used in single pole or 3-way applications.
Additional Specifications:
- Rated Voltage: 120-277V~
- Rated Frquency: 60Hz
- Rated Wattage: 600VA
-
Rated Load:
-
Load Type: 120V~
- Electronic Ballast or LED Driver: 5A
-
Load Type: 277V~
- Electronic Ballast or LED Driver: 2A
-
Load Type: 120V~
- Dimming Method: 0-10V Dimming
- Dimensions: 4.1" L x 1.7" W x 1.3" H

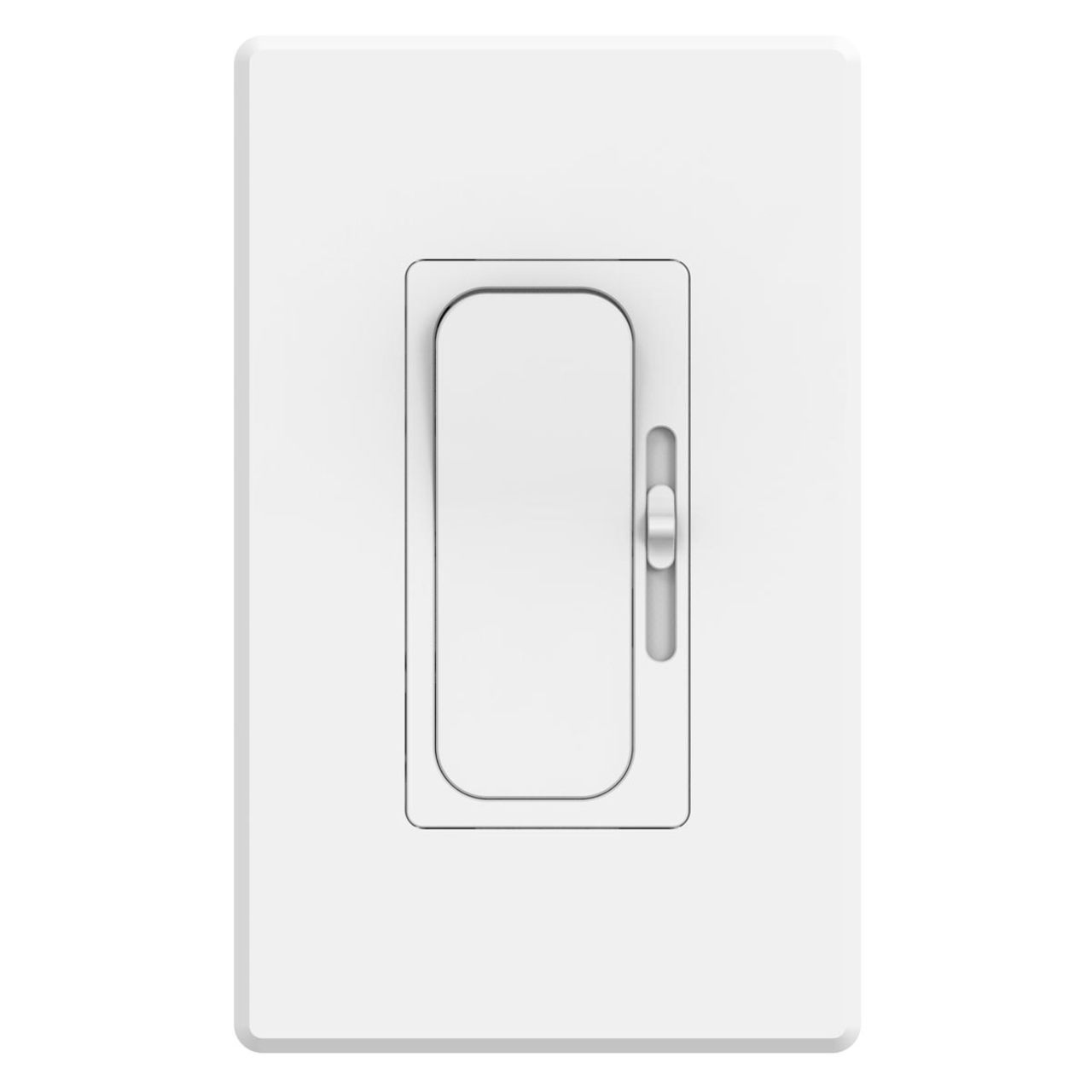

***Please note that the main image for this dimmer also shows a white wall plate installed. The wall plate can be added at no charge by selecting the "Wall Plate ($0.00)" drop down option under accessories! If the wall plate is not selected when adding to cart, it will not be included! This device works with standard size decorator wall plates.
Need more lighting options? Explore flat panels, solar lighting, and more from LumeGen.
Product Specifications
Brand: LumeGen
Case Qty: 1
Clearance: Non-Clearance
Country of Origin: China
Warranty: 1 Year
Operating Temp - Low: 0C / 32F
Operating Temp - High: 40C / 104F
Color: White
Dimmable: Dimmable
Light Fixture Type: Dimmer
