This LED Photocell Daylight Sensor from Keystone is used for a number of applications including parking lots, streets, passage ways, playing fields, and outdoor venues. It is compatible with the below Keystone Corn Cob Retrofit Bulbs:
- LEDCORN1000051504
- LEDCORN1000051505
- LEDCORN1000051506
- LEDCORN1000051507
- LEDCORN1000051508
- LEDCORN1000051509
- LEDCORN1000051510
- LEDCORN1000051511

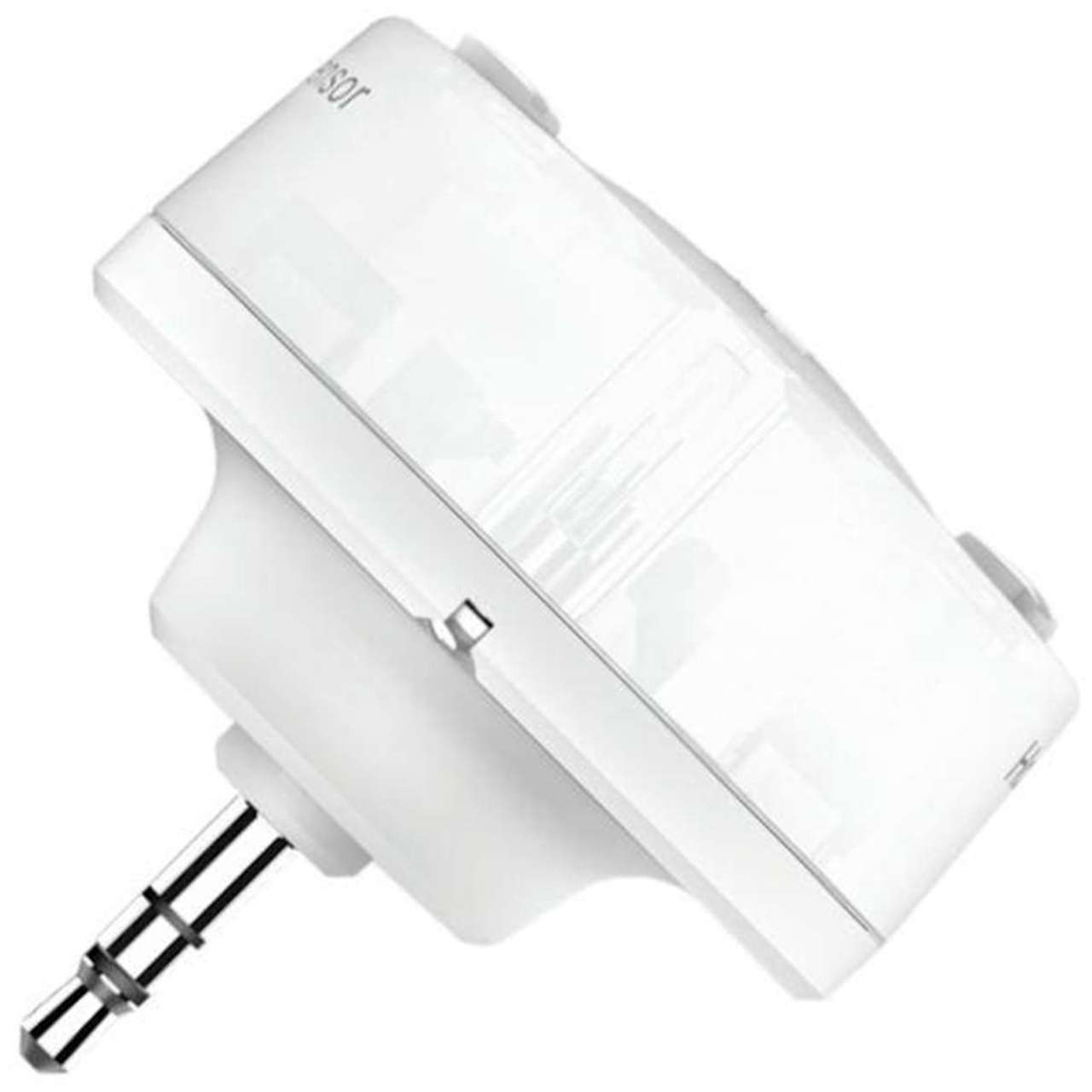

This occupancy sensor has an On/Off with adjustable daylight threshold and timing. The connection method is through the 3.5mm standard AUX port and it is suitable for use within an enclosed fixture. It is also able to operate in a range of temperatures including -4ºF/-20ºC to 95ºF/35ºC. Additionally, this daylight sensor features the following specs:
- Input Voltage: 12V
- Output Voltage: 0-10V
- Operating Current: 20mA

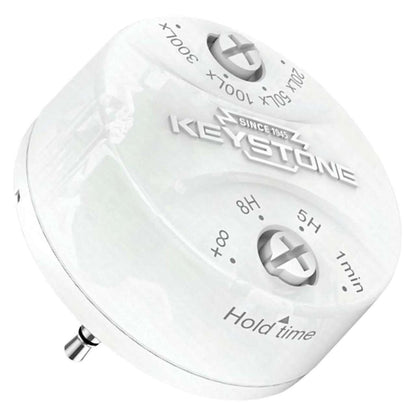

- Lux Options: 20 lx, 50 lx, 100 lx, 300 lx
- Hold Time Options: 1 minute, 5 hours, 8 hours, unlimited
Product Dimensions: 1.75" H x 1.69" Dia.
Product Specifications
Brand: Keystone
Case Qty: 1
Clearance: Non-Clearance
Country of Origin: China
Voltage: 12 V
Warranty: 5 Year
Color: White
Light Fixture Type: Photo Sensor
