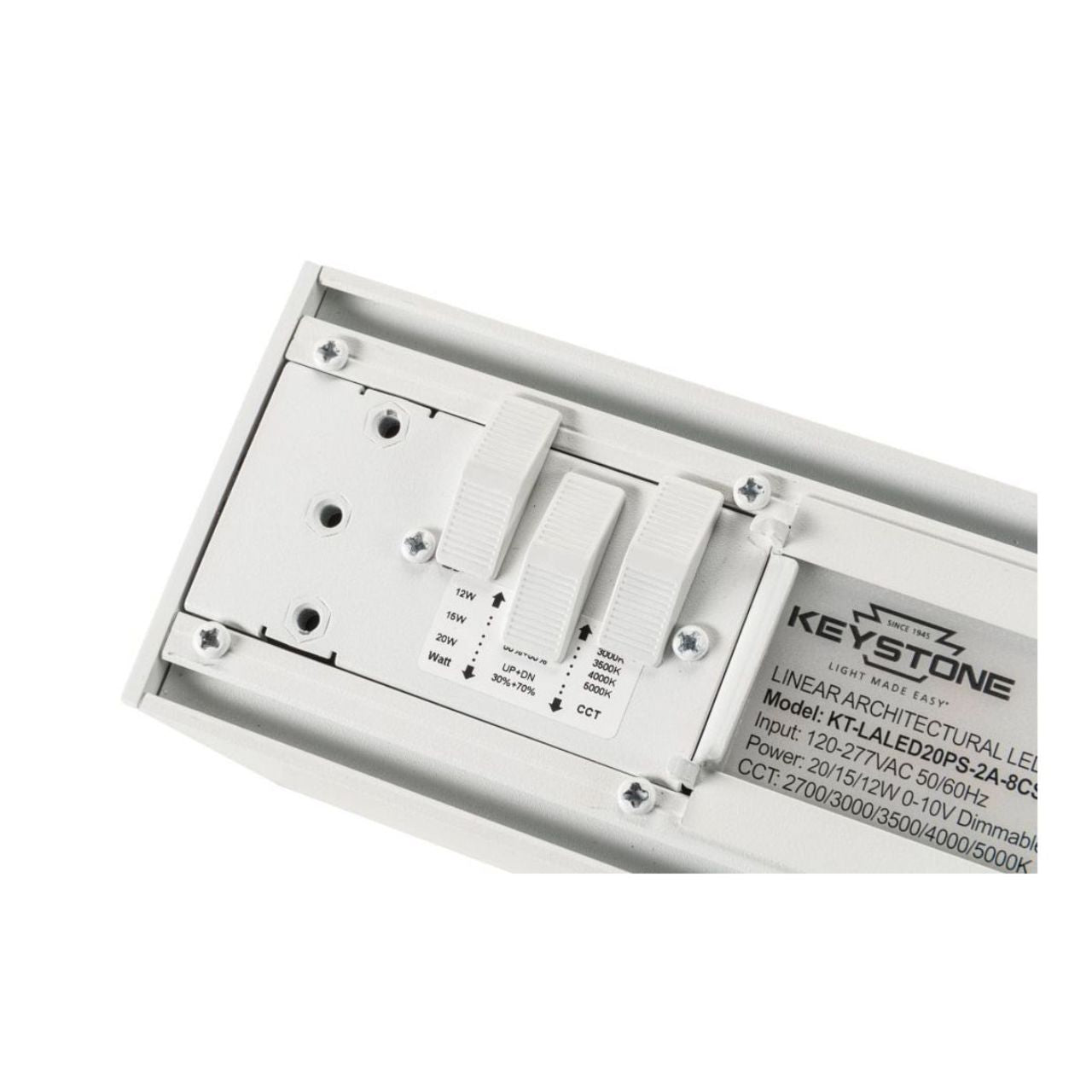

Introducing the versatile and stylish 2ft. LED Linear Pendant Fixture, featuring Keystone Power Select Technology and Keystone Color Select Technology. This modern architectural linear fixture offers unparalleled flexibility with three selectable wattage settings and five different CCT settings (2700K, 3000K, 3500K, 4000K, 5000K) to perfectly match your lighting needs. Additionally, you can choose from three lighting modes: 100% down, 70% down/30% up, and 50% down/50% up, ensuring optimal light distribution for any environment.

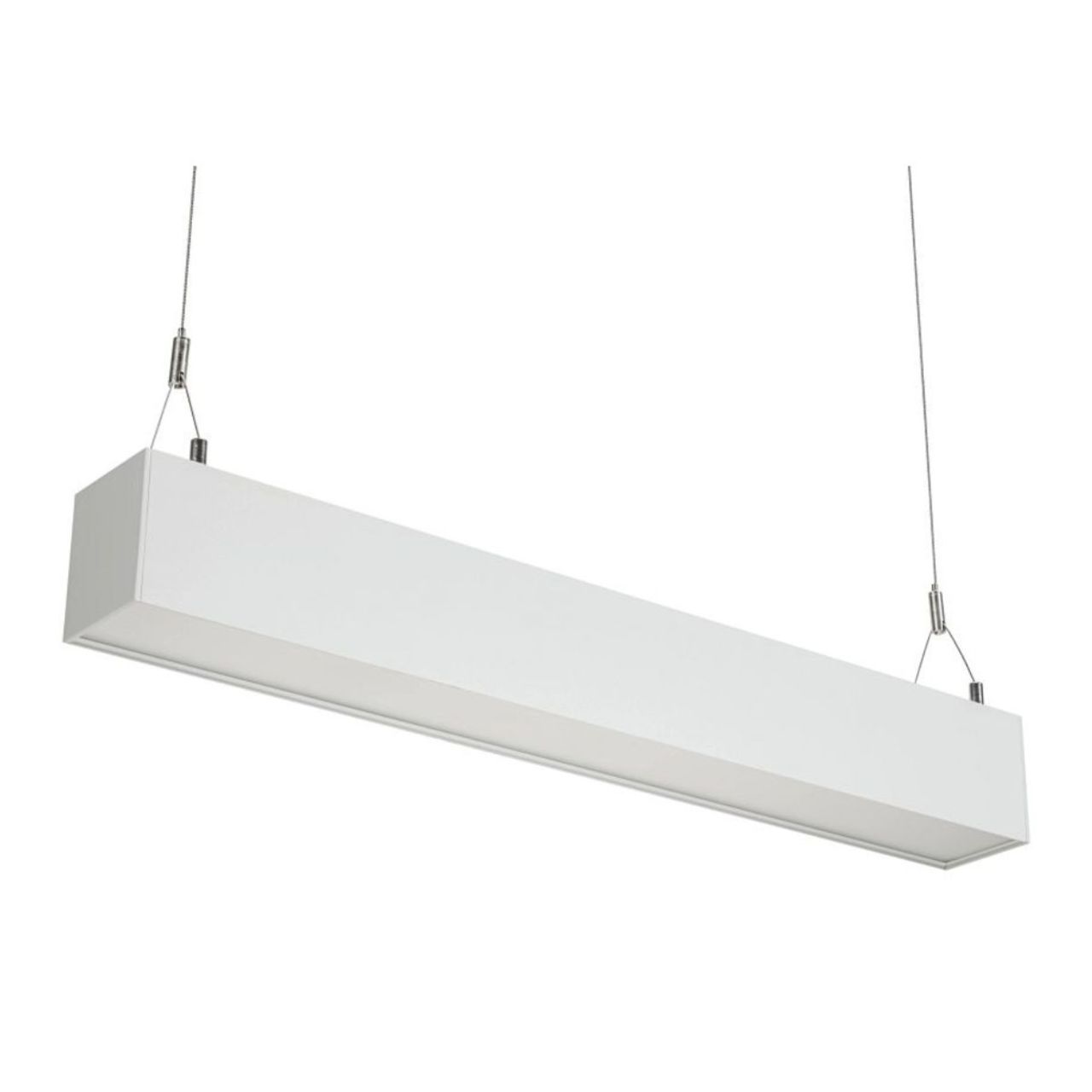

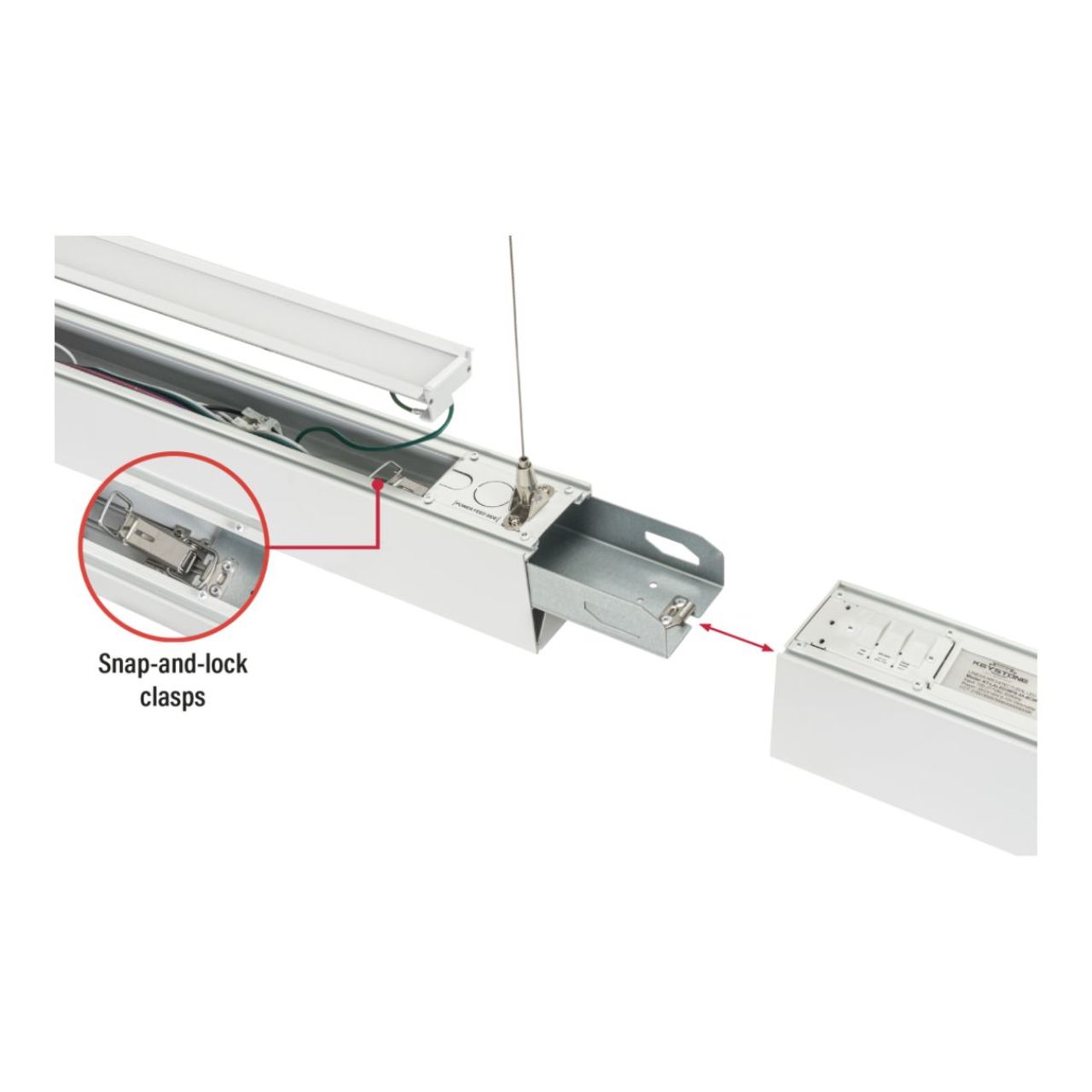

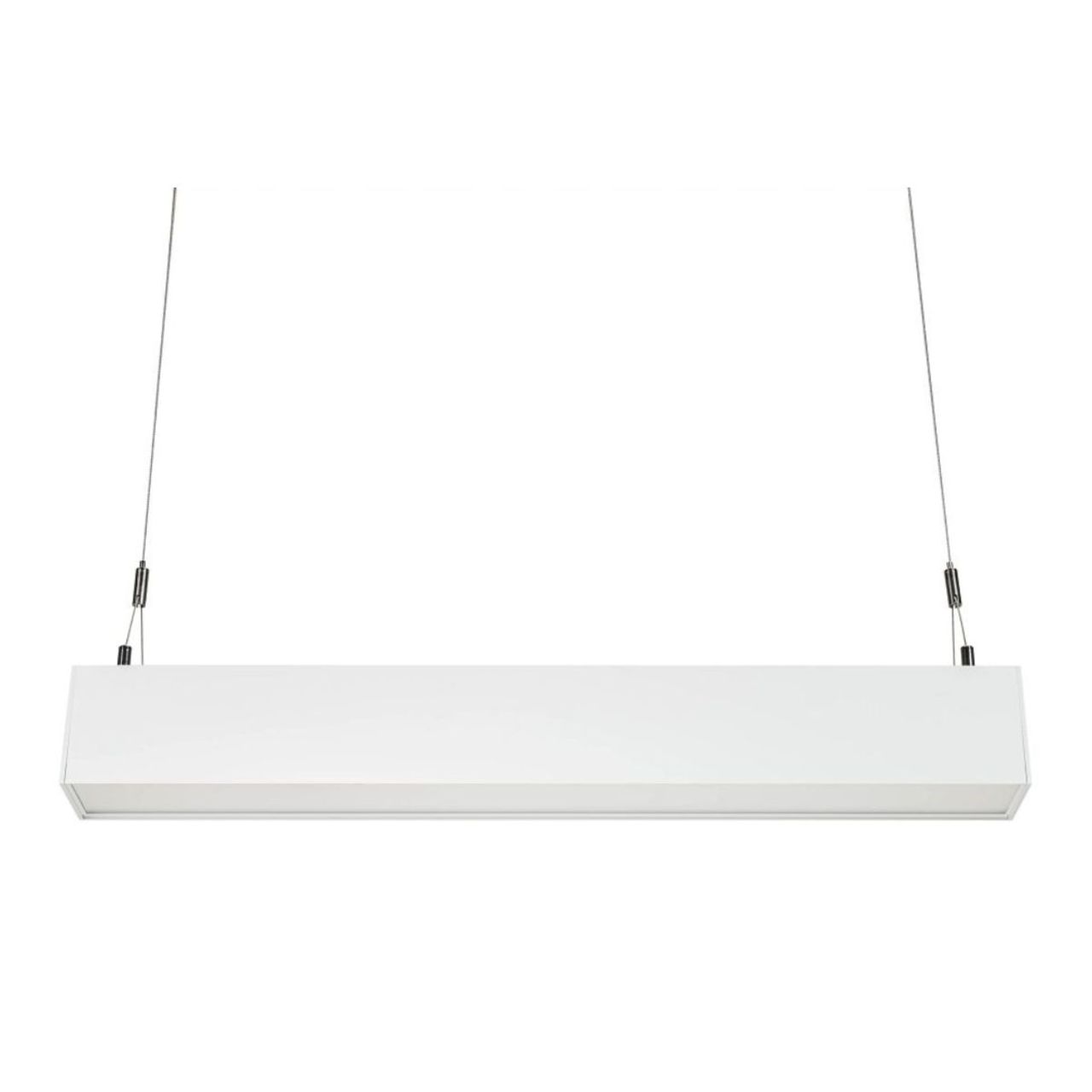

Each fixture includes a standard 15ft. aircraft cable hanging kit for suspension mounting. The fixture is designed for easy linking and daisy-chaining, allowing for seamless connection of up to seven fixtures without exceeding 420W at 120V or 960W at 277V. This modular capability makes it ideal for creating continuous rows of illumination, enhancing any space with its sleek extruded aluminum housing and diffused polycarbonate lens for uniform lighting.
Powered by a Keystone 0-10V Dimming LED driver with Dim-to-Off and 12V AUX power tap, this fixture ensures smooth dimming and energy efficiency. The 2ft. LED Linear Pendant Fixture is UL Certified for dry or damp locations, making it suitable for various applications, including offices, educational facilities, healthcare settings, hospitality venues, and retail environments.
Notable Specs:
- Available in White or Black Housing Color
- 2ft. Length
- Selectable Wattage 12W/15W/20W
- Selectable CCT 2700K/3000K/3500K/4000K/5000K
- Max Lumens 2600
- 130 lm/W
- Input Voltage 120-277W
- Dimmable 0-10V
- CRI >80
- Lifetime of 50,000 Hours
Dimensions: 23.86" L x 3.15" H x 2.76" W
Upgrade your space with the 2ft. LED Linear Pendant Fixture for a modern, efficient, and customizable lighting solution. Shop our selection of lighting from Keystone Technologies.
See the Specification Sheet and Instruction Manual for additional details. IES Files are also attached.
Product Specifications
| Certificate | Description |
|---|---|
UL Listed |
UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US. |
DLC Listed |
The DesignLights Consortium (DLC), sets criteria for energy-efficient LED products, ensuring they meet strict performance and efficiency standards. DLC Listed products meet baseline requirements and are eligible for rebates. |
