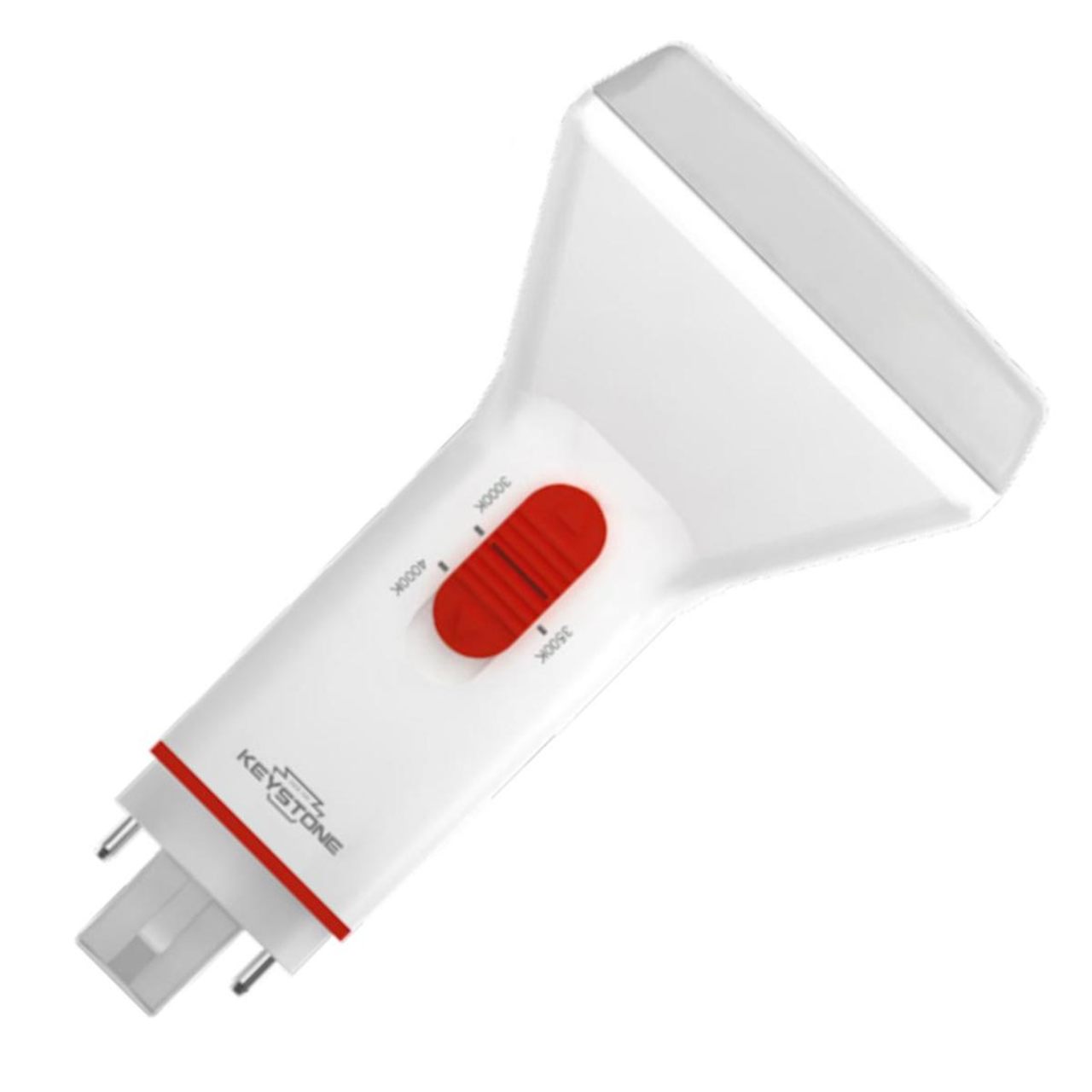

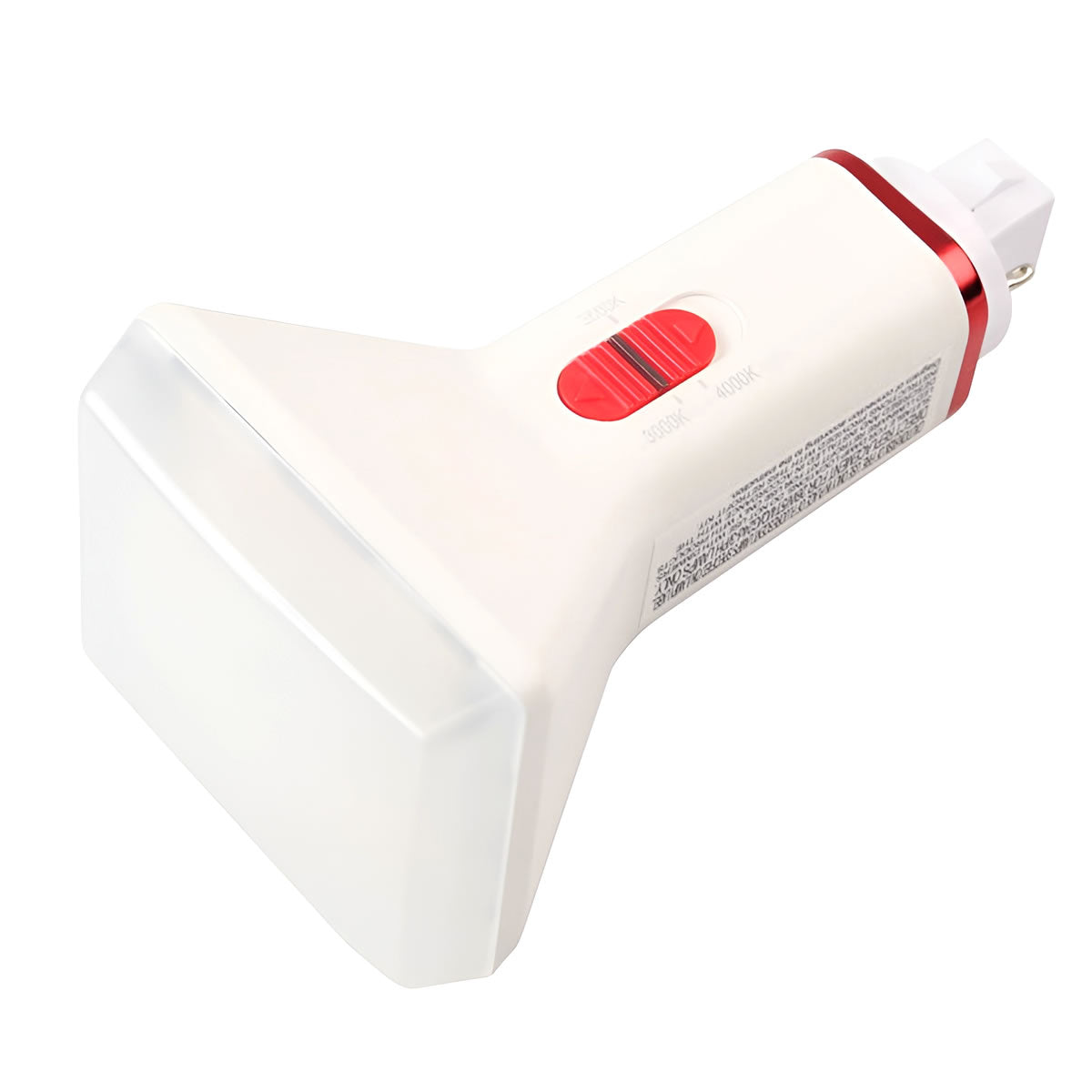

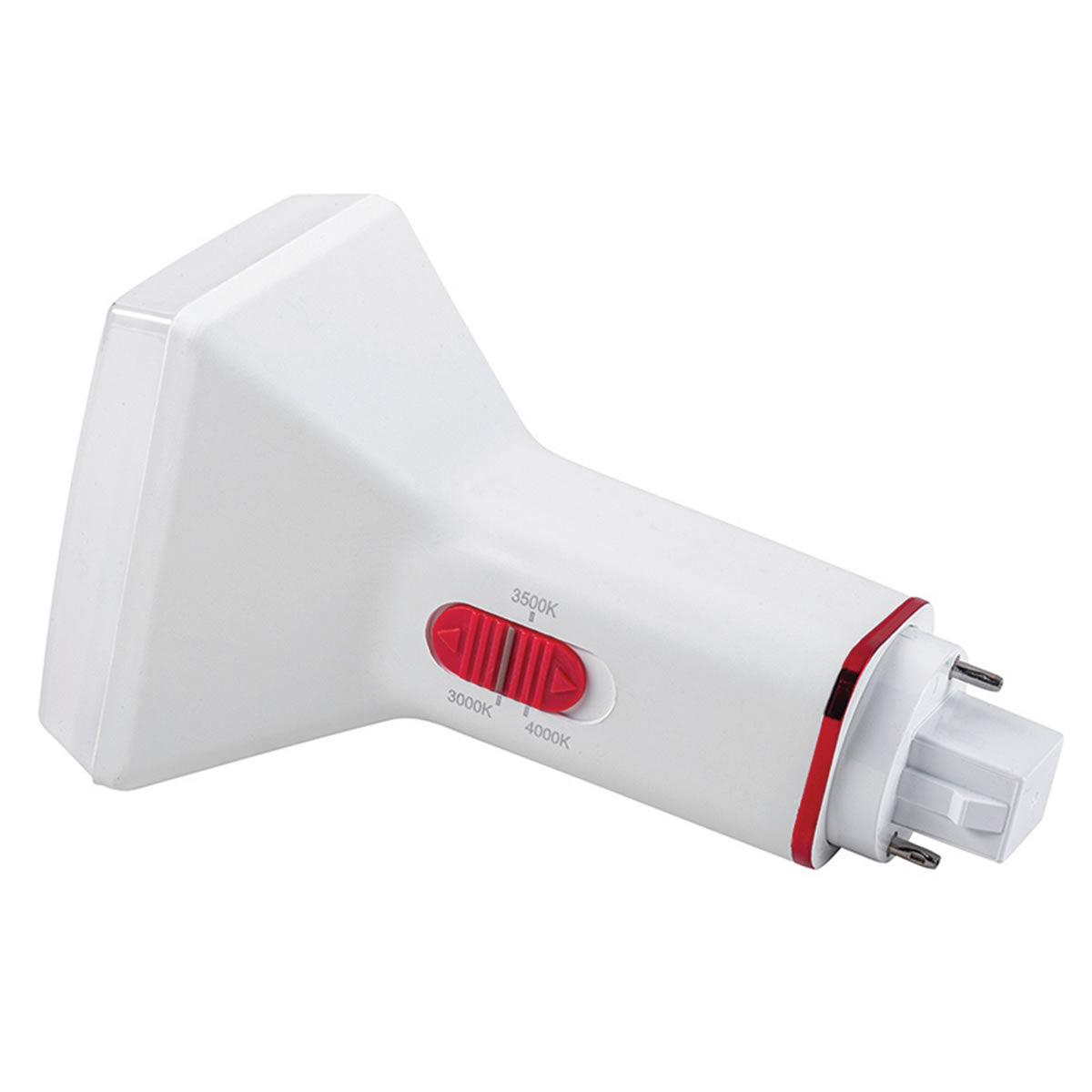

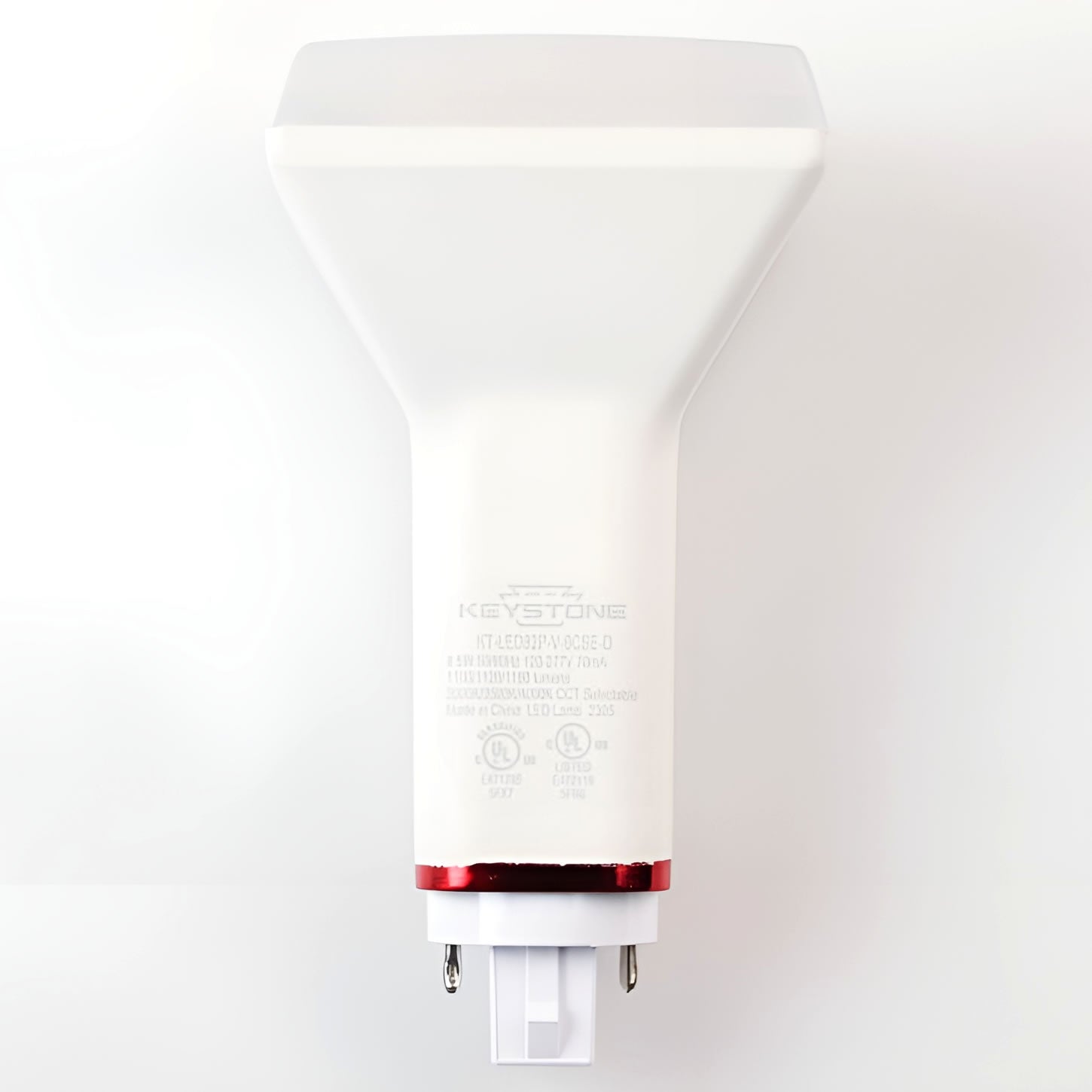

Replace 13W CFL Light Bulbs with Ballast Bypass LED PL Lamps
This Keystone LED Color Tunable Vertical 2-Pin PL Lamp is energy efficient option to replace CFL bulbs and has a rated life of 50,000 hours. With its G24d Base, 8.5W, Color Select between 3000K/3500K/4000K color temperatures, and Ballast Bypass options, this lamp is sure to provide the perfect lighting solution for any space. This LED bulb is also UL Classified, rotatable 270°, and its G24d base can also be used in G24Q 4-pin applications for ballast bypass. This 2-pin LED PL light bulb eliminates the need for an external driver or ballast.
This LED PL lamp is part of Keystone's DirectDrive LED compact lamp selection that comes with Keystone's Color Select technology. Three color temperatures are available to the user that are easy to choose from with the touch of a switch. Additionally, this LED lamp is instant startup, suitable for use in dry and damp locations with an operating temperature of -4°F/-20°C to 113°F/45°C, and has a frosted lens to eliminate pixelation. Please note that this light bulb should not be used in enclosed fixtures but is environmentally friendly with no mercury used and saves 50 percent on energy consumption than its CFL predecessor.
Specifications:
- Wattage: 8.5W
-
Color Temperature (Selectable) and Lumen Output:
- 3000K: 1100 Lumens
- 3500K: 1120 Lumens
- 4000K: 1150 Lumens
- Input Voltage: 120-277V
- CRI: ≥82
Product Dimensions: 5.1" H x 2.7" D
Please review the Specification Sheet attached as there are before and after wiring diagrams to assist with the ballast bypass for magnetic and electronic ballast applications. The diagrams also give wiring directions for both types of ballast applications with one lamp and two lamps installed.
Product Specifications
| Certificate | Description |
|---|---|
UL Listed |
UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US. |
