3-Pin Photocell - Twist Lock - Built in Time Delay - 120-277V

LumeGen

SKU: LEDLHLS1000051560

MPN: LYLS240B

Brand:

LumeGen

Certification:

UL Listed

Technical Specifications

Operating Temperature:
-40C / -40F to 60C / 140F
Warranty:
5 Year
Product Dimensions:
2.0"L X 2.0"W X 3.0"D
Regular price $8.39
Regular price $0.00 Sale price $8.39
Sold out
Shipping calculated at checkout.

Availability: Out of Stock: Call for Availability

  • Shipping With TrackingShipping With Tracking
  • Secure PaymentsSecure Payments
  • 141K+ Happy Customers141K+ Happy Customers
View full details
3-Pin Photocell - Twist Lock - Built in Time Delay - 120-277V

3-Pin Photocell - Twist Lock - Built in Time Delay - 120-277V

Regular price $8.39
Regular price $0.00 Sale price $8.39
Sold out

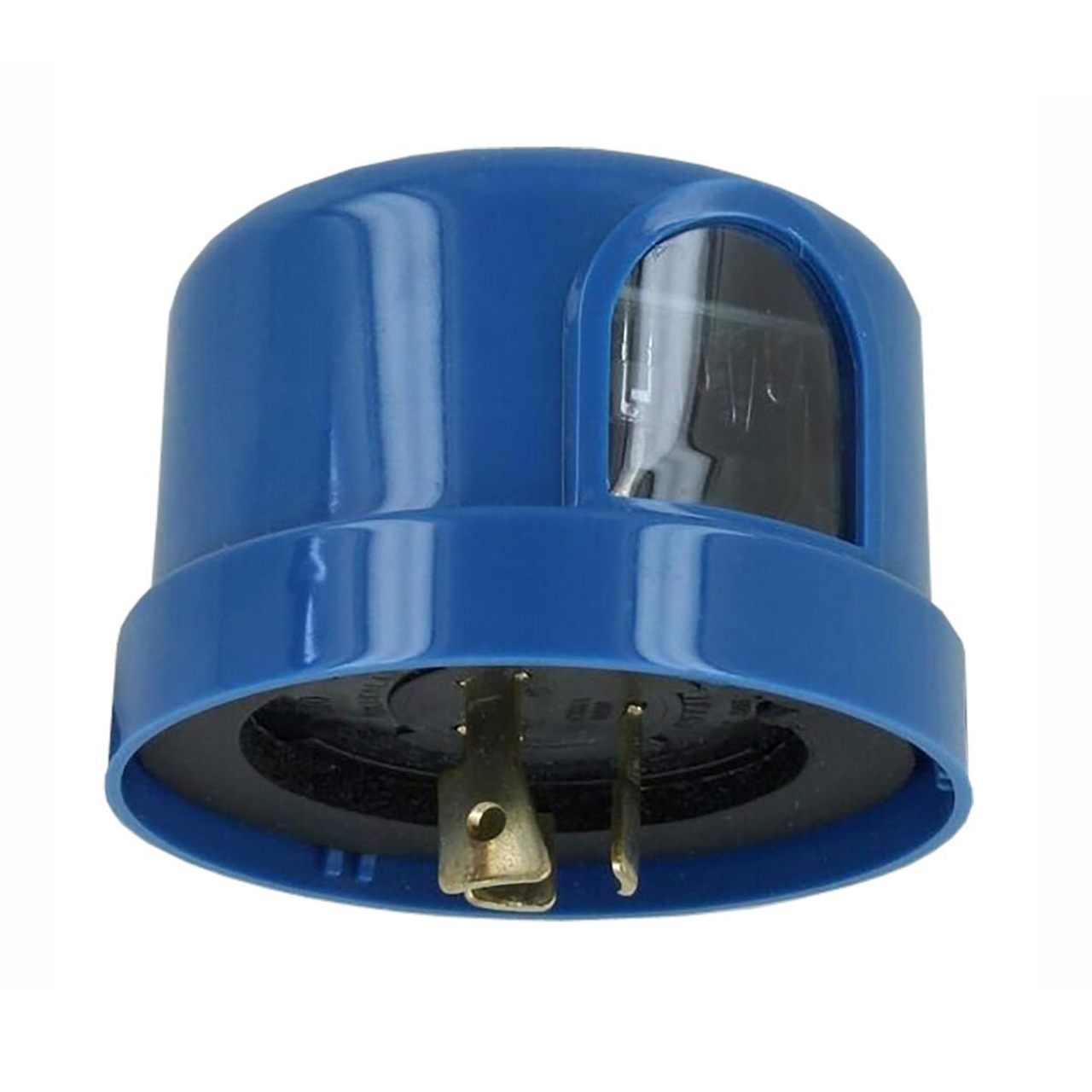

The photocell controller is a great addition to any parking light, street light, area light or any other application that requires dusk to dawn lighting. Made from high impact polycarbonate, this product comes standard with a transparent UV stabilized window. With twist lock terminals, the item meets the technical requirements of ANSI C136.10-2010 and the standard for Plug-In, Locking Type Photo-controls for use with Area Lighting UL773.This product is rated for use with 120-277VAC. Long lasting life cycle of greater than 50,000 cycles

Features time delay - will not allow the sporadic presence of car lights, lightning or other forms of light trip the controlled light to turn off.

  • Turn-ON Light Level -- 16Lux
  • Turn-OFF Light Level -- <24Lux
  • Time Delay -- 5-20s

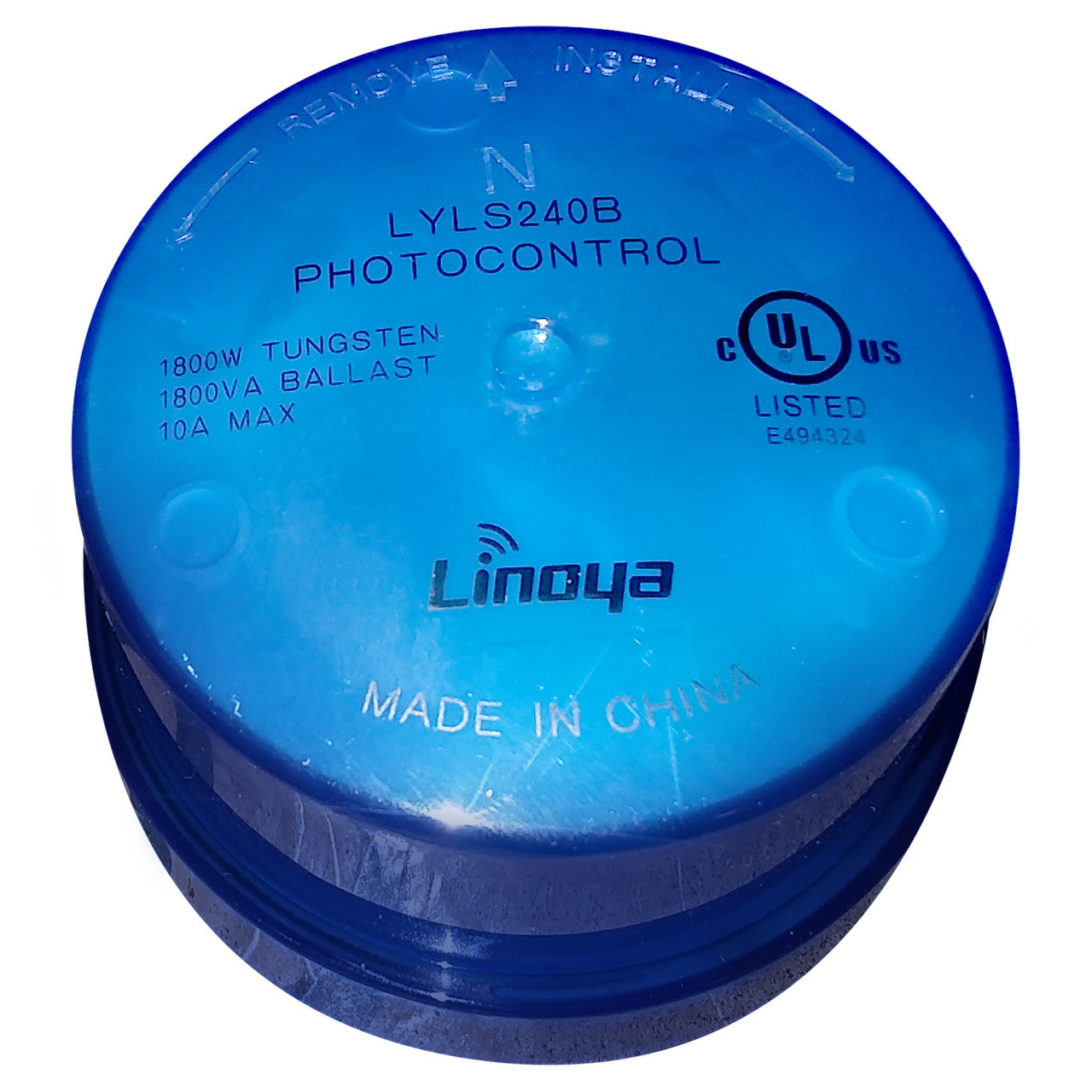

  • Rated Loading -- 1800W Tungsten, 1800VA Ballast
  • 10A MAX

Product Dimensions - 3.3" Dia x 2.6" H

Product Specifications

Brand: LumeGen
Case Qty: 1
Clearance:  Non-Clearance
Country of Origin: China
Warranty:  5 Year
Operating Temp - Low: -40C / -40F
Operating Temp - High: 60C / 140F
Color: Blue
Light Fixture Type: Photo Sensor
Ratings and Certifications:RoHS Compliant
Ratings and Certifications:UL Listed
Certificate Description
UL Listed

UL Listed

UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US.
