VOLUME PRICING - SAVE 5% WHEN YOU BUY A PALLET OF 50! WHILE SUPPLIES LAST!

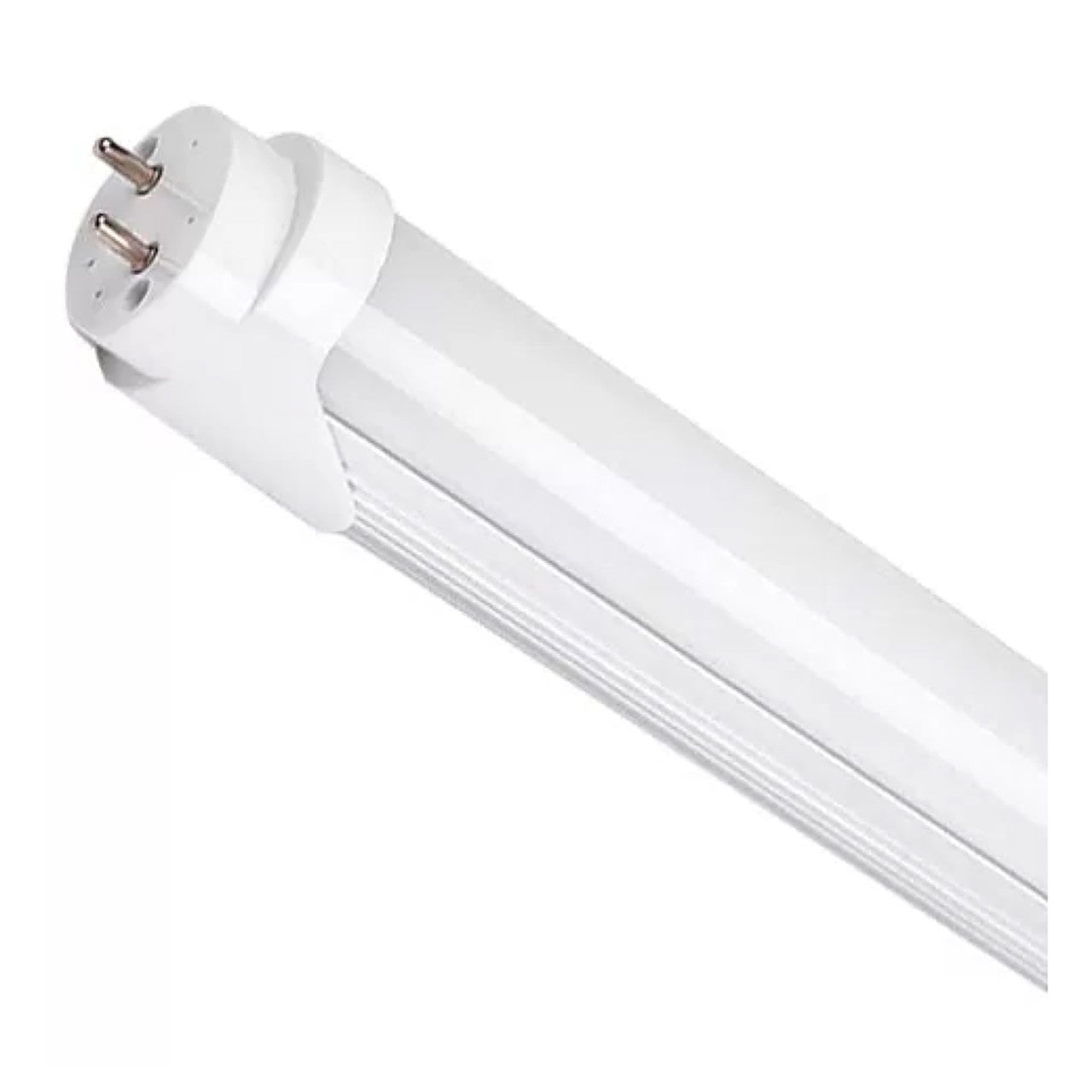

This 4ft. LED T8 Direct Wire (Type B) Tube is a perfect pick for any commercial or residential setting. LED Tubes are more energy efficient and longer lasting than fluorescent tubes and contain no hazardous materials!
This LED Tube is configured for Single-Ended Power, meaning this tube has a live pin and a neutral pin on the same end. For fluorescent retrofits, you must replace one of the shunted lampholders (or tombstones) on the fluorescent fixture with a non-shunted socket.
This LED tube is no longer DLC Listed. It was previously DLC V5.0.
Existing fluorescent ballast must be bypassed for proper operation!
Notable Specs:
- Type B
- Case of 25
- 4ft. Length
- 12W
- 32W Fluorescent Tube Equivalent
- 1684 Lumens
- >80 CRI
- Dimmable
- Available in 4000K Color Temperature
- 180° Beam Angle
- AC120-277V Input Voltage
- Single Ended Power
- Frosted polycarbonate (PC) plastic lens with aluminum back
- RoHS Compliant, UL Listed
Dimensions (of one LED Tube) - 47.16" L
Can you put led tube lights in a fluorescent fixture? Can I replace my fluorescent T8 linear bulbs with LEDs?
Yes! LED Tubes can be installed into a fluorescent fixture. When tubes are Type A + B, Type A or Type B, it is easy to replace those flickering fluorescents. A brief explanation of Type A and B LED linear tubes is below.
Type A LED Linear Tubes are often called "plug and play" tubes. This is because they can simply be installed into the existing fixture.
Type B LED Linear Tubes are often referred to as "ballast bypass." They work with all fluorescent fixtures including ballast-free fixtures. Type B linear tubes power goes directly to the lamp sockets and no longer through the ballast.
Type A + B can be used with or without a ballast. It is ultimately the buyer's preference what they want to do. Type A installation uses the LED Tube + Ballast power for more energy consumption compared to Type B installation only uses the raw tube power and is more energy-efficient.
What does ballast bypass mean? How does ballast bypass work?
Ballast bypass means when installing the LED linear tube, the fixture's ballast will need to be removed first. The power will then go directly to the lamp sockets and no longer through the ballast. The benefits of ballast bypass LED replacement tubes include lights not being shut down by a ballast failure, no more ballast replacements, and savings on the energy bill because energy is no longer drawing from the ballast.
Product Specifications
| Certificate | Description |
|---|---|
UL Listed |
UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US. |
