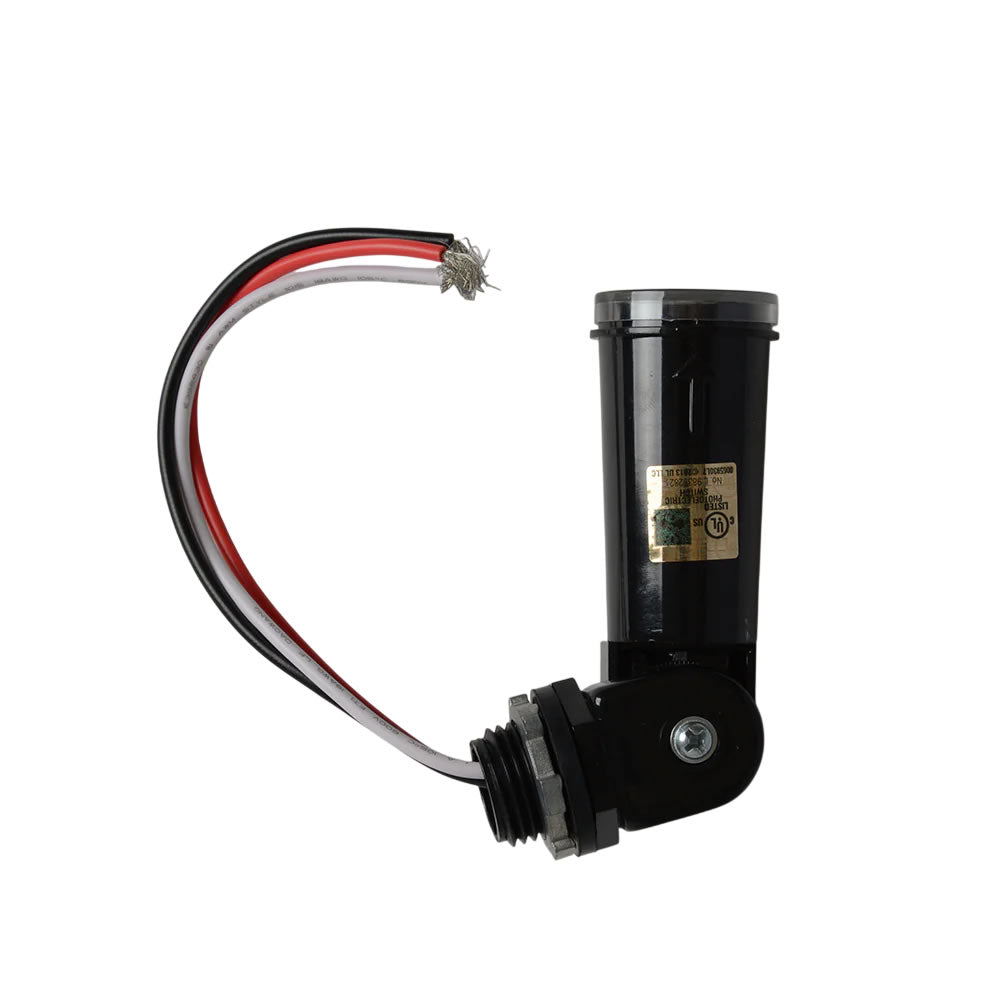

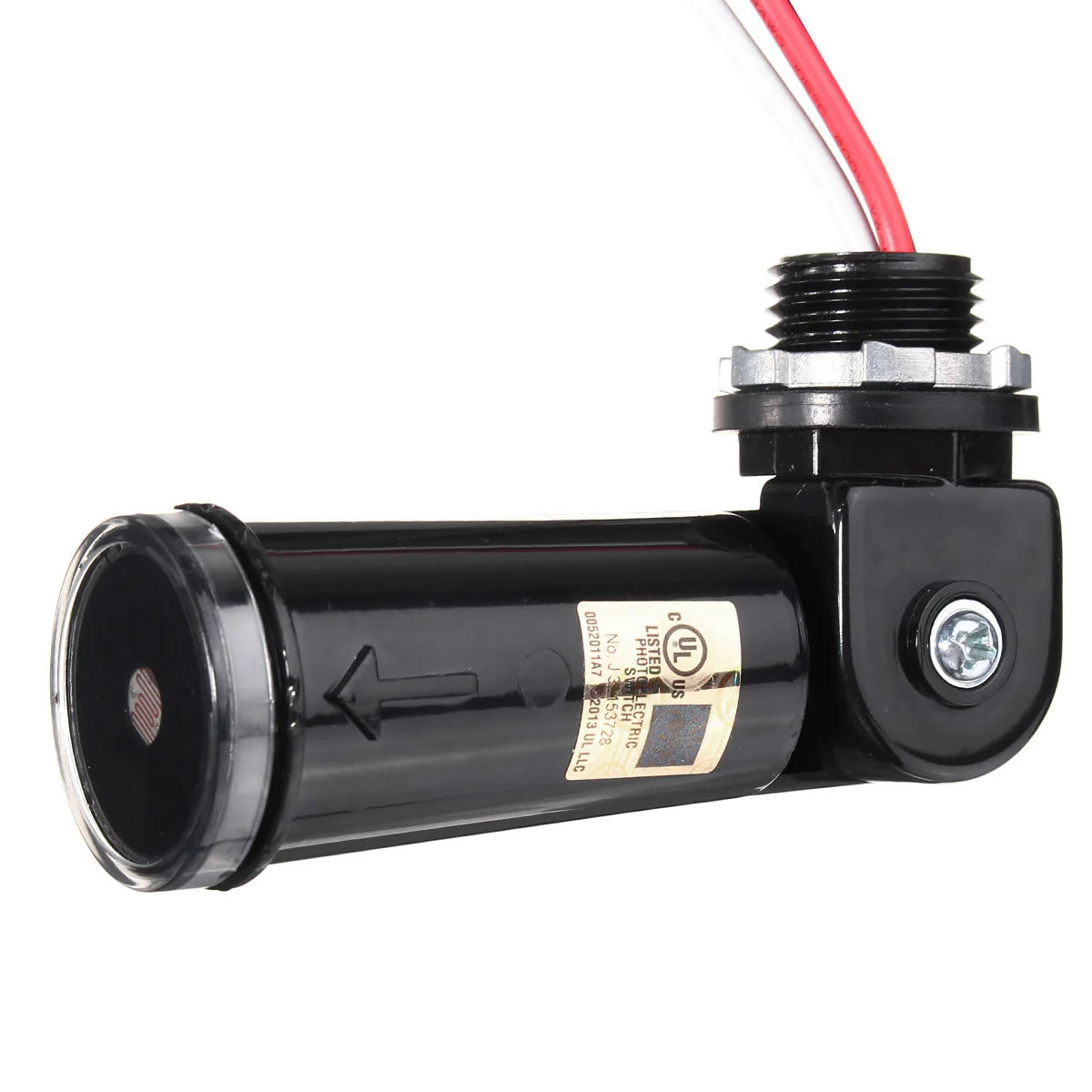

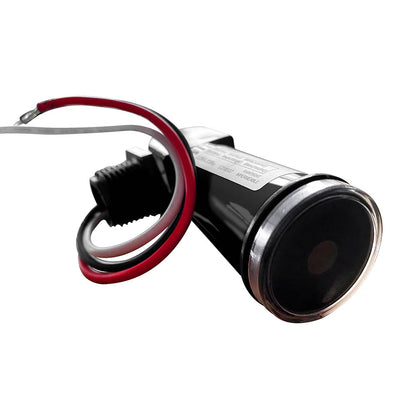

Light-sensitive photocell switches luminaires off when ambient light is present, and witches them on when ambient light is absent. Ideal for use with outdoor luminaires requiring photoelectric automation. Rain-tight for outdoor use. Preset time delay prevents unintended switching from flashes due to headlights, lightning, and other transitory lighting sources.
- Rated Load (Tungsten lamp) - 500W
- Rated Load (Ballasted Lamp) - 850VA
- Works with LED, incandescent, HID and fluorescent light sources.
- Heavy-duty, rain-proof, polycarbonate housing and lens
- Photocell is 1/2" diameter CdS (cadmium-sulfide)
- Universal 120-277 AC voltage (50-60Hz)
- Presets 3 to 10 second time-delay prevents unintended switching due to momentary flashes of light.
- Power consumption: 2W
- Switches light source on when ambient light levels decrease to 1-2 foot-candles.
- Switches light source off when ambient lighting levels increase to 3-8 foot-candles.
- Suitable for ambient temperatures ranging from -40F to 158F, 99% relative humidity.
- 5-Year Warranty
Mounts via 1/2" (NPS)threaded conduit & Zinc alloy nut to fixture knockout. Includes 16AWG 6" power lead. 0-200degree swivel.
Product Specifications
Brand: LightUp Select
Case Qty: 1
Clearance: Non-Clearance
Country of Origin: China
Warranty: 5 Year
Color: bluetooth
Light Fixture Type: Motion Sensor
