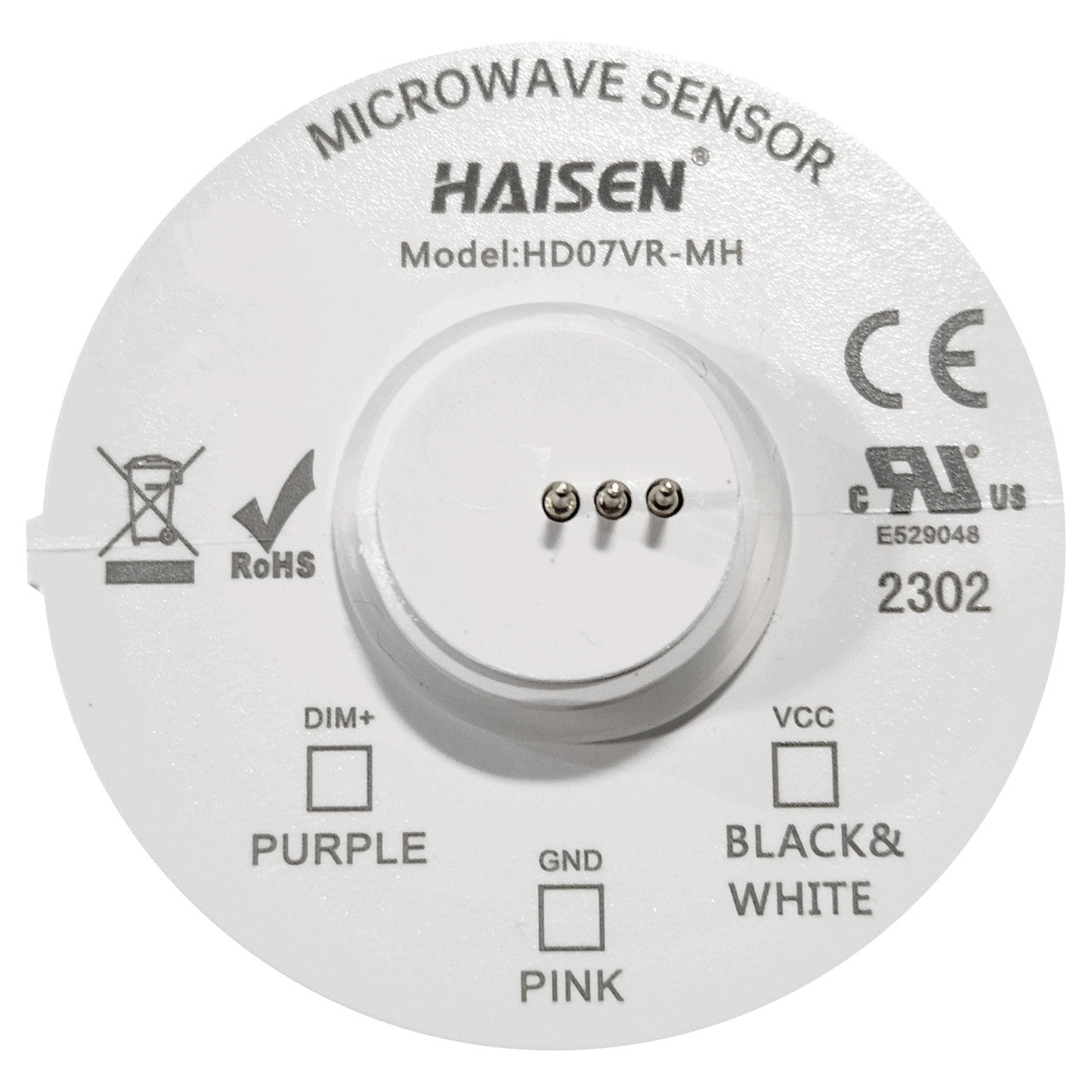

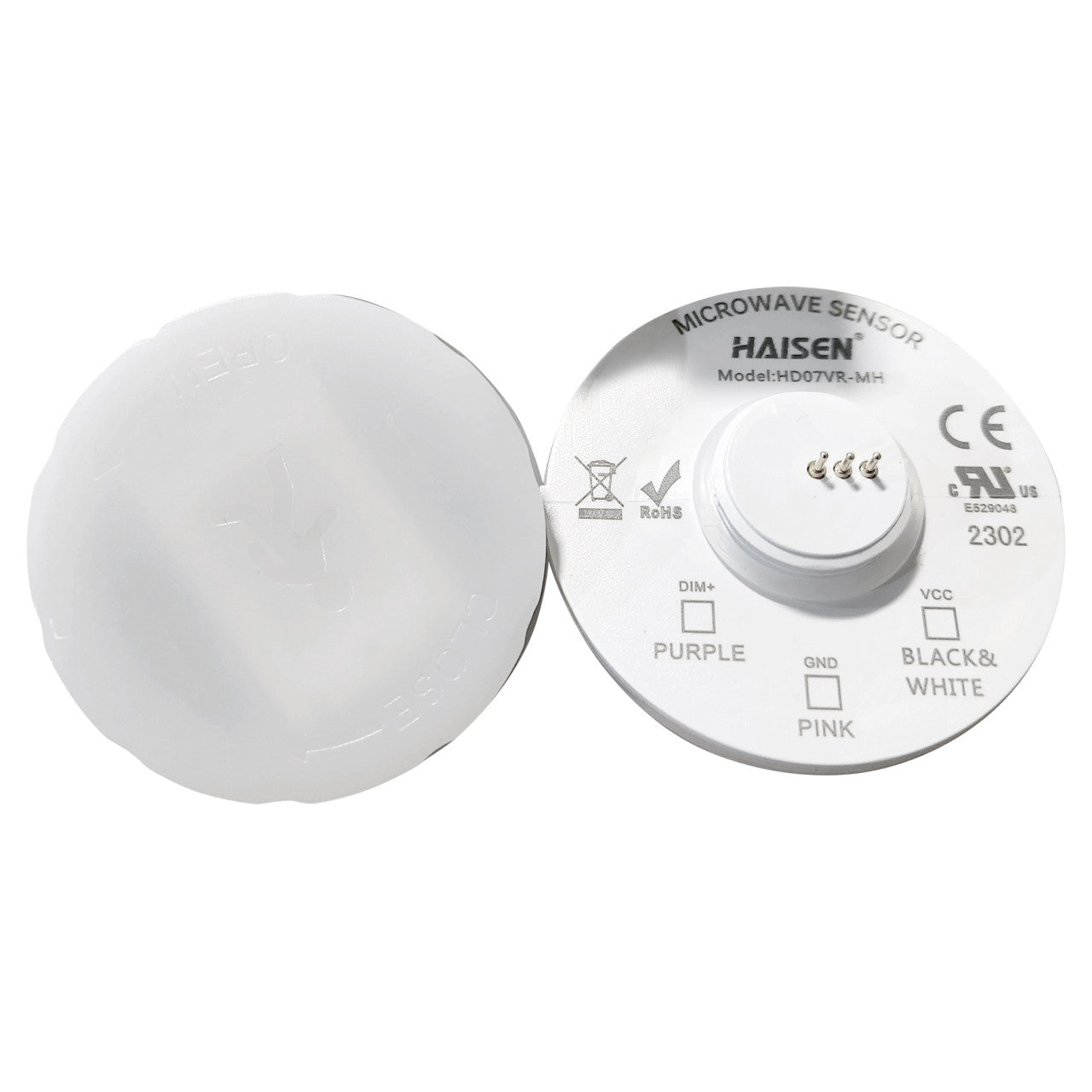

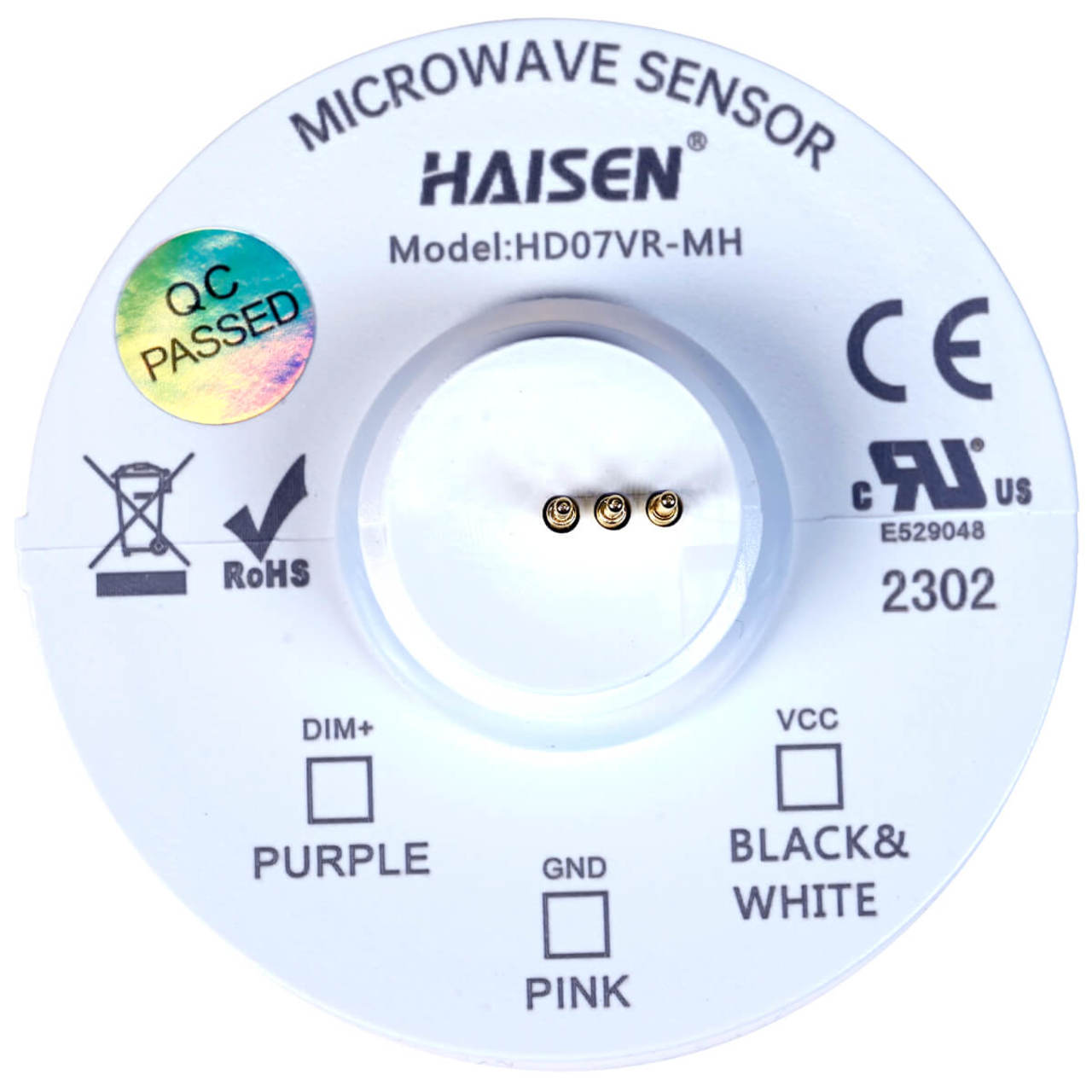

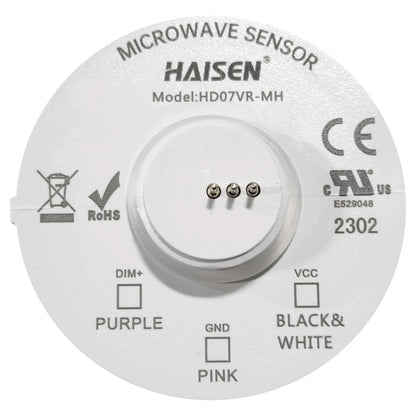

Transmitting and receiving antenna technology using planar microwave sensors automatically turn on/off the lights when it detects motion.
This motion sensor is an add-on for Jen Lighting UFO and Linear High Bay Light Fixtures. Requires remote control HD05R (SKU LEDLHMS1000054068 sold separately) in order to program this sensor from default settings.
Technical Specs (Default Settings):
- Operating Voltage - 10-15VDC
- Operating Current - 30mA
- Output - Dim 0-10V
- Stand-by Power - <0.5W
- Hold Time - 5 seconds
- Microwave Frequency -5.8GHz
- Microwave Power - <0.3mW
- Mounting Height - 19' Max
- Detection Range - 9'
- Operating Temperature - -4°F ~ 140°F
- IP Rating - IP65
Product Specifications
Brand: Jen Lighting Corp.
Case Qty: 1
Clearance: Non-Clearance
Country of Origin: China
Operating Temp - Low: -20C / -4F
Operating Temp - High: 60C / 140F
Color: Sensor
Light Fixture Type: Motion Sensor
Ratings and Certifications:CE Certified
Ratings and Certifications:RoHS Compliant
Ratings and Certifications:UL Listed
| Certificate | Description |
|---|---|
UL Listed |
UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US. |
