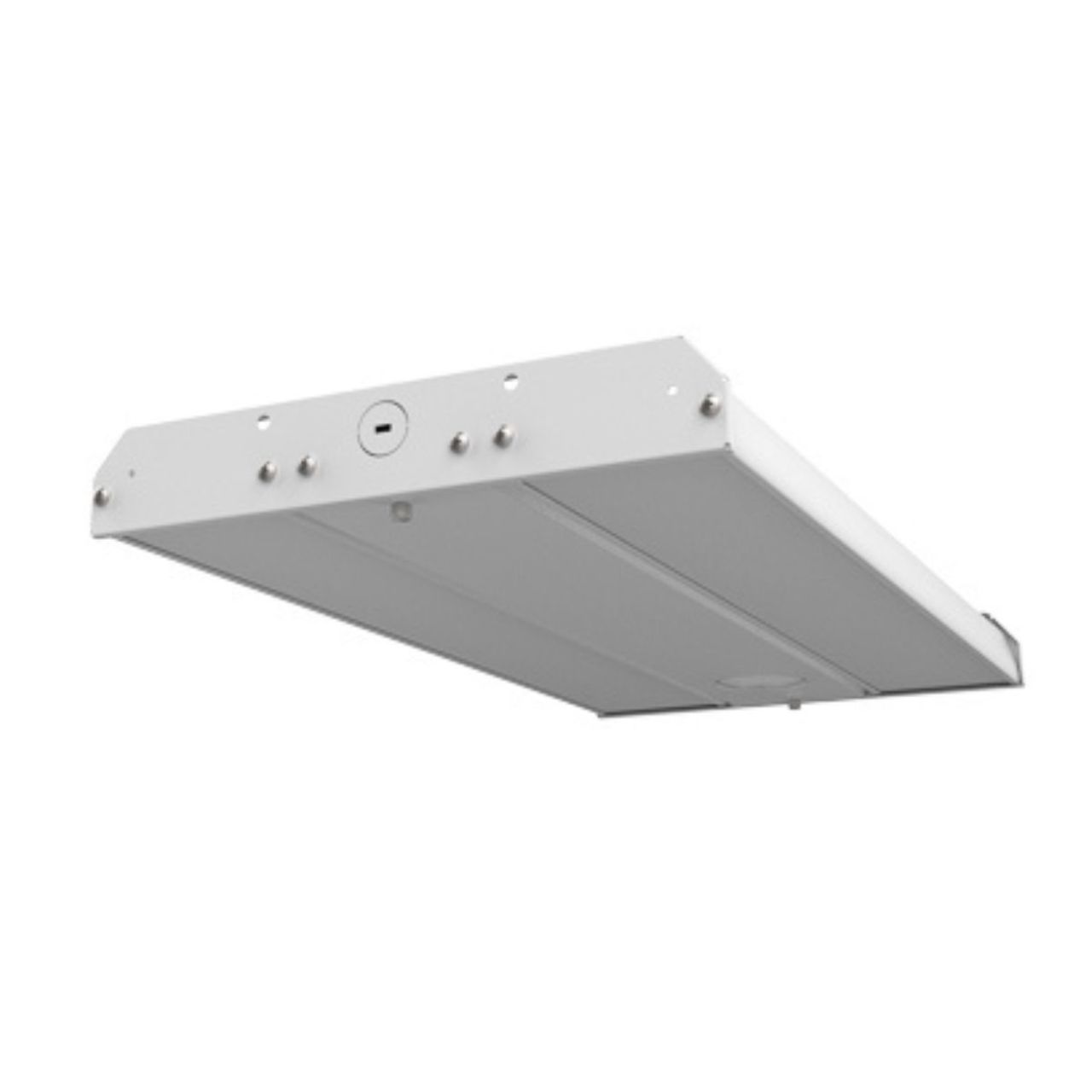

LED Linear High Bay - Wattage Selectable up to 200W - Color Selectable - Energetic Lighting
This Wattage and Color Selectable LED Linear High Bay from Energetic Lighting combines cutting-edge features and versatile design, offering the perfect solution for efficient, customizable lighting in demanding commercial and industrial spaces. With advanced field-selectable options and compact engineering, these fixtures provide exceptional flexibility and performance.
Key Features:
- EZCCT Field-Selectable CCT: Choose between 4000K and 5000K color temperatures, both delivering >90 CRI for vibrant, true-to-life illumination.
- EZWATT Field-Selectable Wattage: Adapt the wattage to meet specific lighting requirements, maximizing energy efficiency.
- Suspension Chain Hardware: Included for quick and secure installations.
- Advanced Heat Sink Design: Efficient fins ensure optimal LED performance by maintaining ideal operating temperatures.
- Slim Housing Profile: Ultra-thin design minimizes plenum space requirements for seamless installation.
- Versatile Conduit Knockouts: Multiple trade-size knockouts positioned at both ends and the back for flexible wiring configurations.
Applications:
- Warehouses
- Manufacturing Facilities
- Retail Spaces
Specifications
- Wattage Adjustable 120W/160W/200W
- 120W - 18,000 Lumens
- 160W - 24,000 Lumens
- 200W - 30,000 Lumens
- 4000K, 5000K Selectable Color Temperature
- 82 CRI
- 120-277V
- 0-10V Dimming
- ETL Listed and Title 24 Compliant
Dimensions: 15.85" L x 10.79" W x 1.85" H
From commercial and residential lighting fixtures to electrical accessories, Energetic Lighting has lighting and accessories to fit your needs. Shop Now!
Product Specifications
Brand: Energetic Lighting
Case Qty: 1
Clearance: Non-Clearance
Country of Origin: China
CRI: 82
Light Source: LED
Lumens per Watt: 145 lm/W
Voltage: AC120-277V
Warranty: 5 Year
Operating Temp - Low: -20C / -4F
Operating Temp - High: 50C / 122F
Lumens: 18,000-30,000
Color: Color Tunable 4000K-5000K
Dimmable: Dimmable
Wattage: Wattage Adjustable 120W/160W/200W
High Bay Body Type: Split Body
Color Temperature (CCT): 4000K, 5000K, and Color Tunable
Light Fixture Type: High Bay (Linear) and Color & Wattage Adjustable
Ratings and Certifications:ETL Listed
Ratings and Certifications:RoHS Compliant
Ratings and Certifications:Title 24 Compliant
| Certificate | Description |
|---|---|
ETL Listed |
ETL Listed refers to products that have been tested and cetified by global testing, inspection, and certification organization Intertek. Intertek is an OSHA recognized NRTL and the ETL mark is an approved listing for product that comply with North American safety standards. The ETL mark is one of the most prominent marks for lighting fixtures in the US besides UL. |
Title 24 Compliant |
Title 24 Compliant refers to products that meet the energy efficiency and performance standards outlined in Title 24 of the California Code of Regulations. Title 24, also known as the California Building Energy Efficiency Standards, sets requirements for energy conservation, green building design, and sustainability in new construction and renovations in California. |
