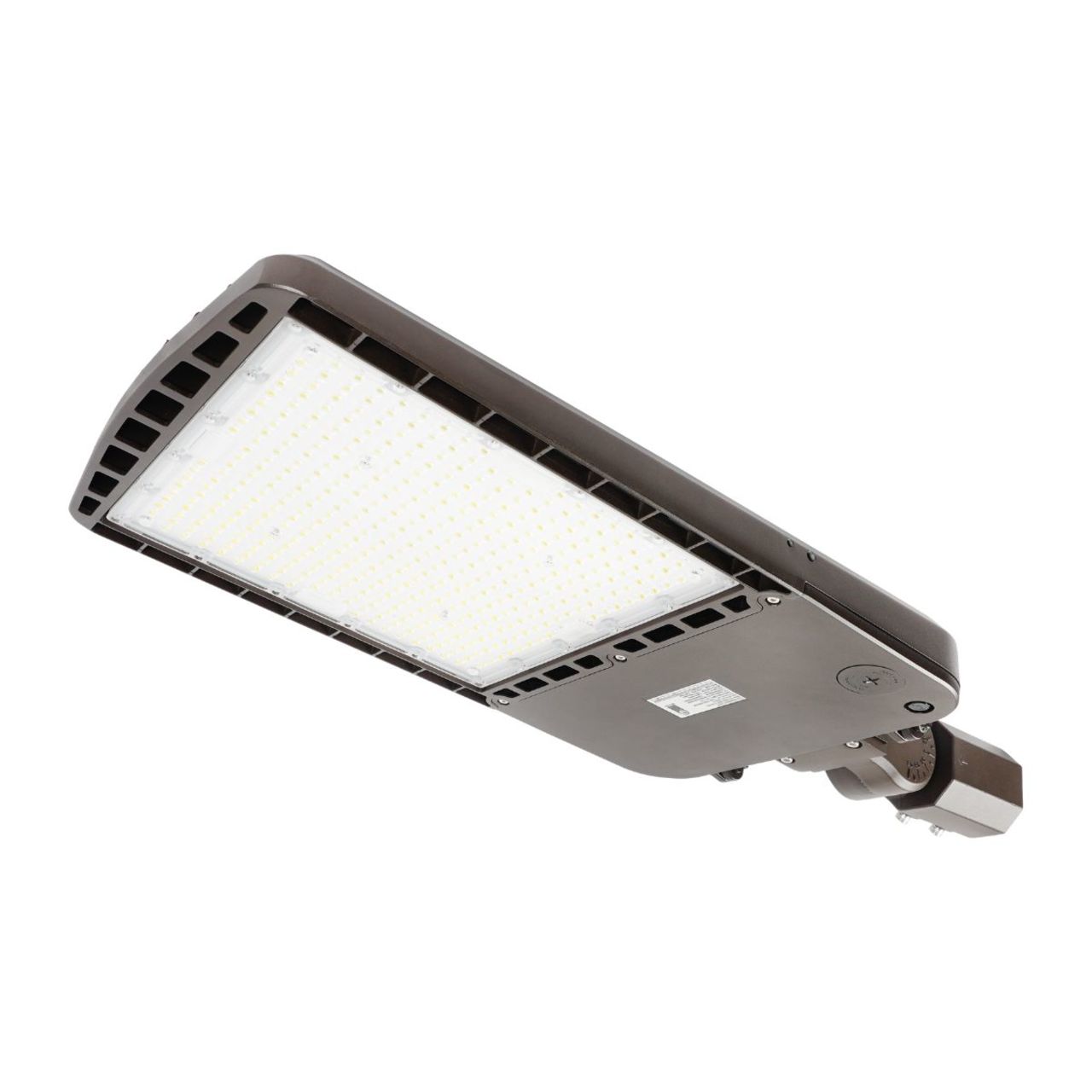

LED Wattage Adjustable Area Light Shoebox - 70W/100W/150W - LumeGen
This wattage tunable LED area light is built to deliver powerful, energy-efficient illumination for a wide range of large outdoor spaces—including roadways, walkways, parking lots, building exteriors, and loading docks. Designed with a classic HID area light silhouette, its slim profile and simplified installation process help reduce setup time by up to 50%. Rated for wet locations, this versatile fixture supports multiple mounting options (mounting adapters sold separately) and is compatible with an optional photosensor (sold separately) for enhanced efficiency and control.
Specifications
This light uses a high efficiency LED driver with a wide range input voltage of AC 100-277V. It also uses BRIDGELUX 2835 LED Chips. It is equipped with Type III optics as well.
At 130 lumens per watt, this Wattage Selectable LED area light produces up to 19,500 lumens when operating at the highest wattage of 150W and 13,000 lumens at the 100W setting. It produces approximately 9,100 lumens at lowest setting of 70W.
This light is available in 5000K color temperature that is perfect for various outdoor applications. This area light boasts die-cast aluminum housing with a dark brown powder finish. Its lens is made of heat-resistant polycarbonate (PC) that is anti-UV and flame resistant. It is also IP65 rated meaning it is dust-tight and can withstand jets of water to ensure a long lifespan out in the elements.
Product Dimensions - 15.9" L x 9.8" W x 2.6" H
Accessories
Different Mounting Accessories - Pole or Wall Mounting
There are four mounting accessories for this light that can be purchased separately:
- LEDMKAL1000050700 - Type A Slip Fitter Bracket
- LEDMKAL1000050701 - Type B Square/Round Pole Mount with Knuckle Bracket
- LEDMKAL1000050702 - Type C Fixed Arm Bracket
- LEDMKAL1000050703 - Type D Trunion Bracket
LED Area Light - Sensors Available (Sold Separately)
This area light comes with a shorting cap by default. The following sensors are available for purchase separately:
- PhotoCell Sensor SKU LEDLHLS1000050732
- Plug-In Microwave Motion Sensor SKU LEDLHLS1000050736
The photocell sensor detects ambient light, turning the light off during the day and on at night (making it a dusk-to-dawn fixture). The microwave motion sensor includes both motion detection and photocell functionality, meaning it also turns the light off during the day and on at night but only illuminates when it detects motion after dark. If no motion is detected for a while, the light will turn off. Both sensors can be installed simultaneously.
Utility Rebates
This LED area light is also DLC Premium V5.1 listed meaning it is highly energy efficient and may qualify for utility rebates in certain areas. Learn more about LED Rebates.
FAQs
What are area lights?
Area lights are used to illuminate large outdoor areas including but not limited to parking lots, student or work campuses, The main purpose other than illumination is safety. Area lights can be mounted in a variety of ways making them ideal for numerous applications.
Need more lighting options? Explore flat panels, solar lighting, and more from LumeGen.
Product Specifications
| Certificate | Description |
|---|---|
UL Listed |
UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US. |
DLC Premium |
The DesignLights Consortium (DLC), sets criteria for energy-efficient LED products, ensuring they meet strict performance and efficiency standards. DLC Premium products surpass basic standards and are eligible for higher rebate incentives. |
