LED Exit & Emergency Combo Sign - White - 90 Min. Emergency Runtime - 120/277V

LightUp Select

SKU: LEDEMEX1000051577-GRN

MPN: LEDCXTEU2GW

Certification:

UL Listed

Technical Specifications

Nominal Power:
3.5W
Input Voltage:
AC120-277V
Operating Temperature:
0C / 32F to 40C / 104F
Warranty:
5 Year
Regular price $52.49
Regular price $0.00 Sale price $52.49
Sold out
Shipping calculated at checkout.
Color

Availability: In Stock: Ships in 5 to 7 business days

  • Shipping With TrackingShipping With Tracking
  • Secure PaymentsSecure Payments
  • 141K+ Happy Customers141K+ Happy Customers
View full details
LED Exit & Emergency Combo Sign - White - 90 Min. Emergency Runtime - 120/277V

LED Exit & Emergency Combo Sign - White - 90 Min. Emergency Runtime - 120/277V

Regular price $52.49
Regular price $0.00 Sale price $52.49
Sold out

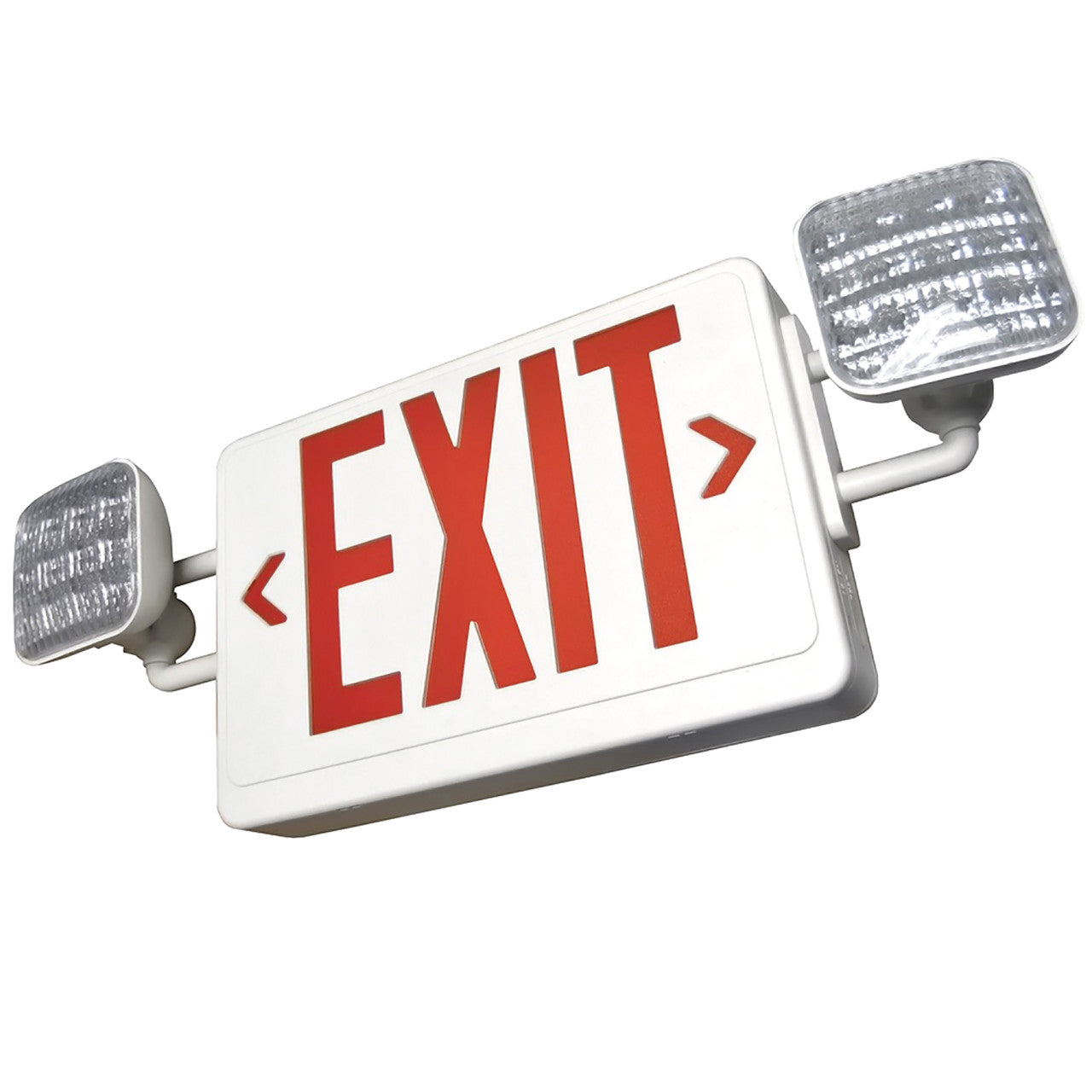

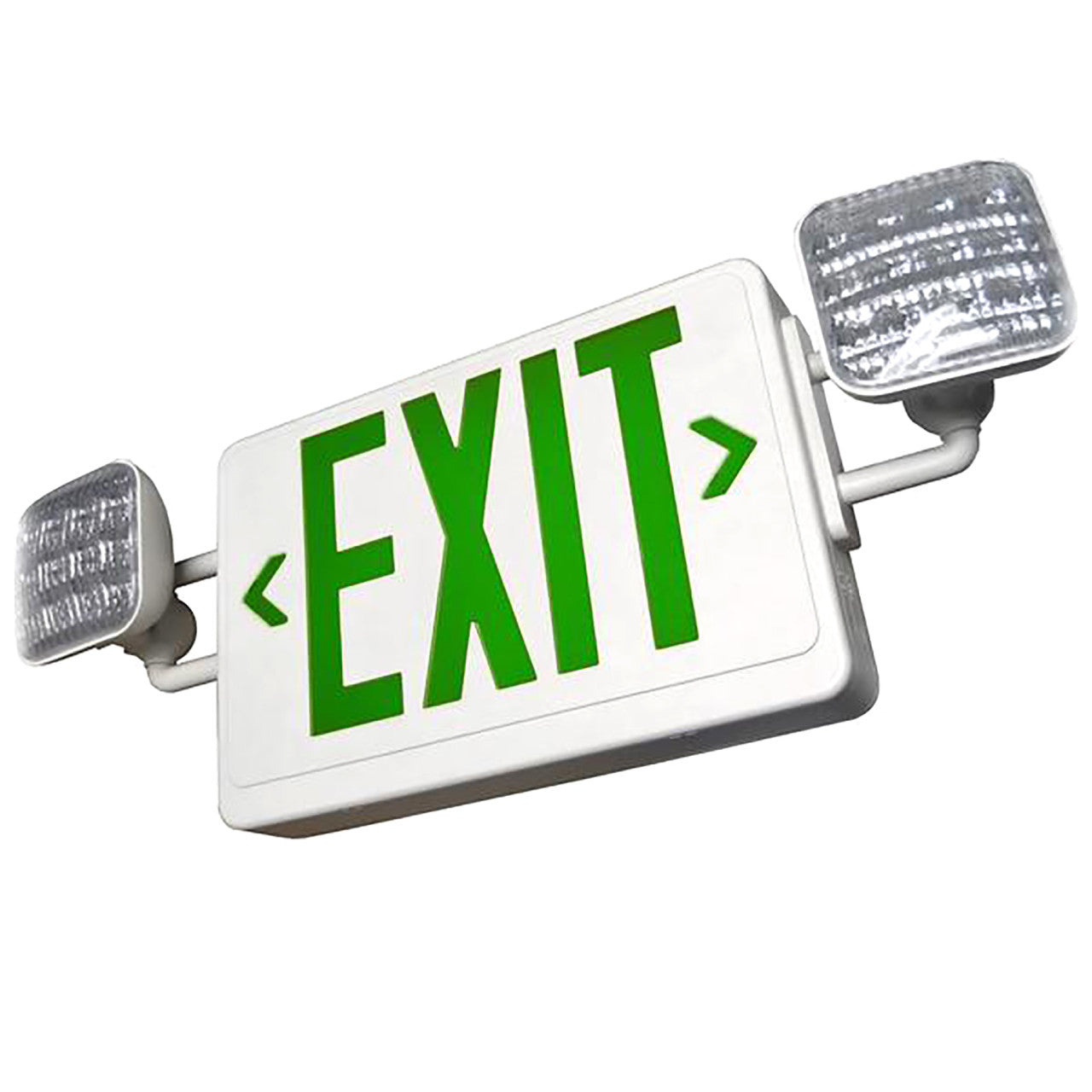

Protect your building's occupants and provide safety with this LED Exit & Emergency Combo Sign. This LED combo exit light produces ultra-bright, energy efficient, long life red or green light and complies with building fire codes and insurance standards. It can be ordered with green or red LEDs and lettering.

This LED Combo Exit & Emergency Sign has dual light heads to provide illumination in the event of power outage.  Each head is 1W with 8 LEDs per head with high performance chrome-plated metallized reflector and plastic lens for optimal light distribution. The adjustable LED lamp heads provide optimal center-to-center spacing.

This LED combo exit sign is made with injection-molded, engineering grade, 5VA flame retardant, high-impact resistant, thermoplastic in white finish. It comes with EZ snap-out chevron directional indicators. It can be configured with a single- or double-sided face with EZ-snap mounting canopy included for top or end mount. It has a universal knockout pattern on the back plate for wall mount.

This LED combo exit sign is UL Listed for damp locations and certified to CEC under Title 20 Regulations. Meets UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State Codes. Five year warranty on all electronics and housing. Battery pro-rated for five years.

This LED exit sign operates on 120/277 voltage and includes 9.6V long-life, maintenance-free, rechargeable NiCd battery. It includes a charge rate/power "ON" LED indicator light and push-to-test switch for mandated code compliance testing. Internal solid-state transfer switch automatically connects the internal battery to LED board for minimum 90-minute emergency illumination. Fully automatic solid-state, two rate charger initiates battery charging to recharge a discharged battery in 24 hours.

  • LED life-cycle of more than 10 years
  • Molded-in template for Quick installation
  • Universal Knockout Directional Indicators
  • Dual Voltage: 120V or 277V
  • 90 min Emergency Runtime operation
  • Provided with test switch and AC-On indicator
  • Canopy Included
  • UL Listed for Damp Locations
  • NFPA 101
  • OSHA certified
  • 5 Year Warranty

Exit Light Dimensions (without canopy) - 20-5/16" L x 2" W x 8" H

Canopy Dimensions - 5-1/2" L x 4-5/16" W x 5/8" H

Product Specifications

Brand: LightUp Select
Case Qty: 1
Clearance:  Non-Clearance
Country of Origin: China
Light Source: LED
Voltage: AC120-277V
Warranty:  5 Year
Operating Temp - Low: 0C / 32F
Operating Temp - High: 40C / 104F
Color: Green;Red
Wattage: 3.5W
Light Fixture Type: Combo Emergency Light Exit Sign
Ratings and Certifications:UL Listed
Ratings and Certifications:CEC
Certificate Description
UL Listed

UL Listed

UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US.
