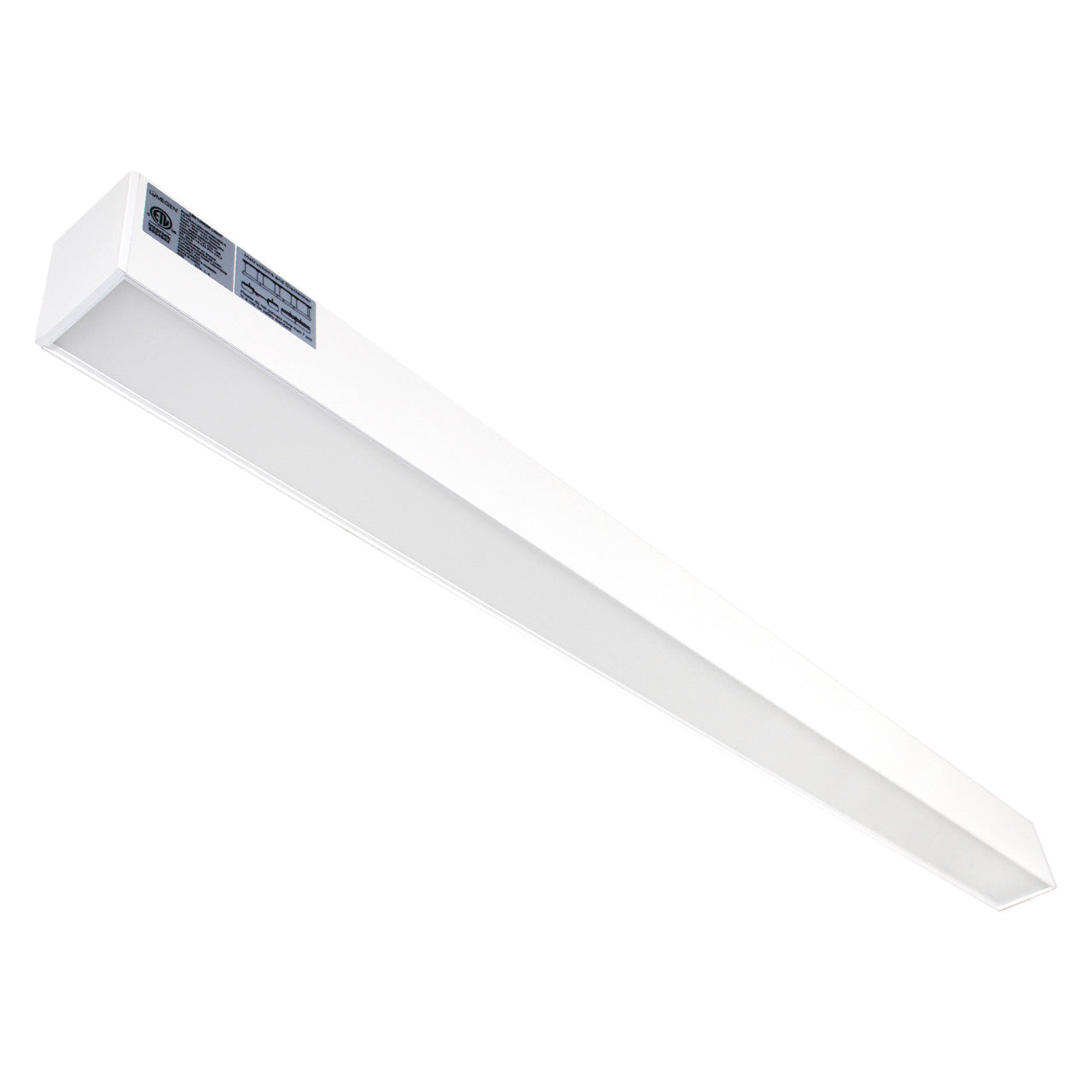

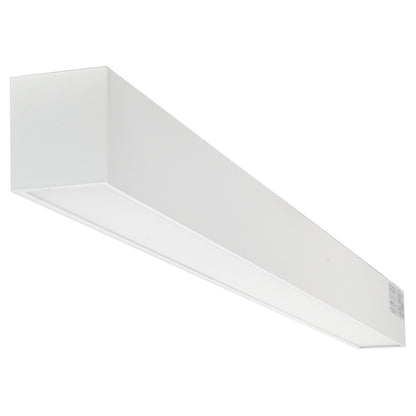

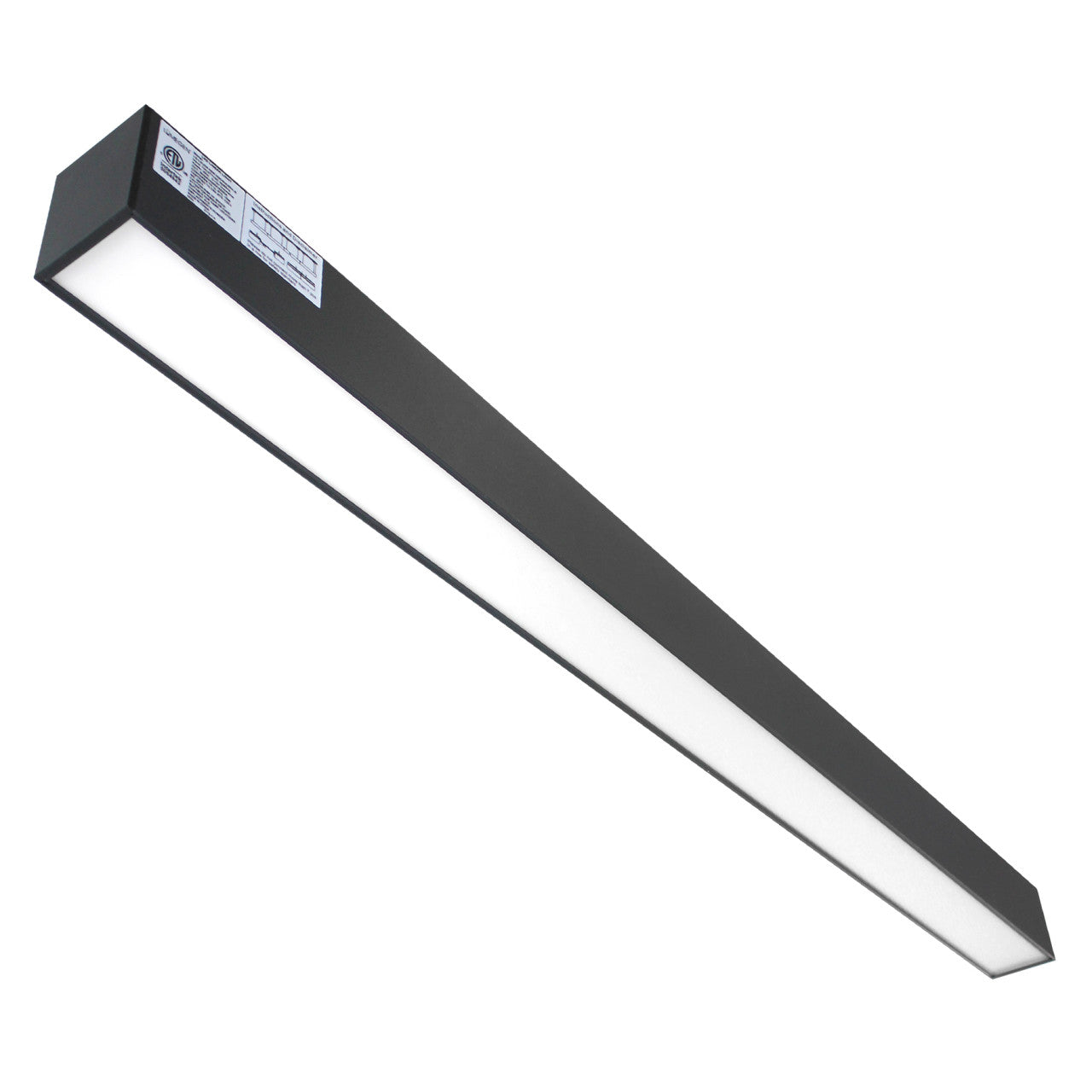

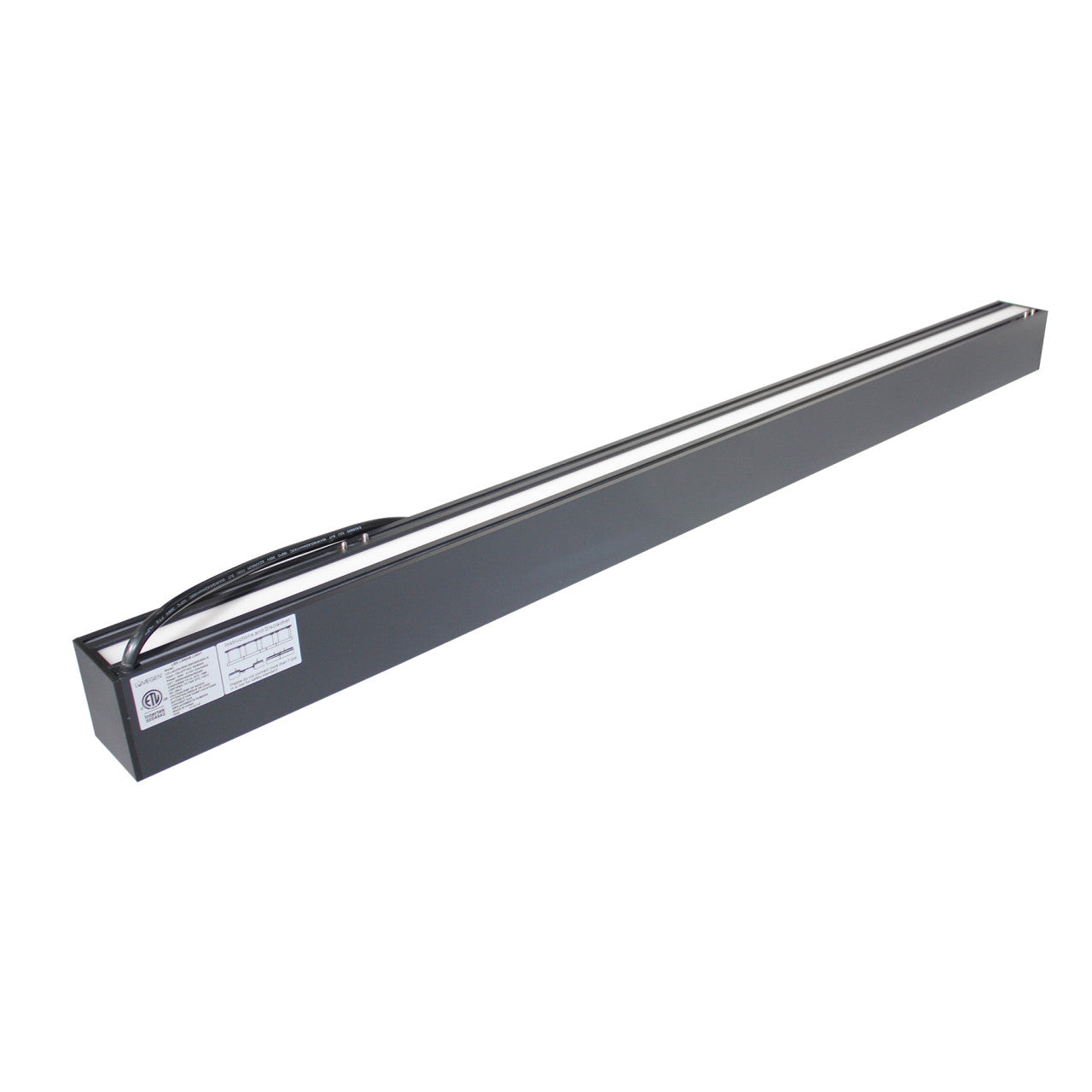

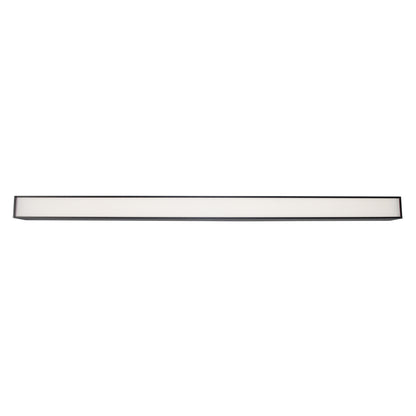

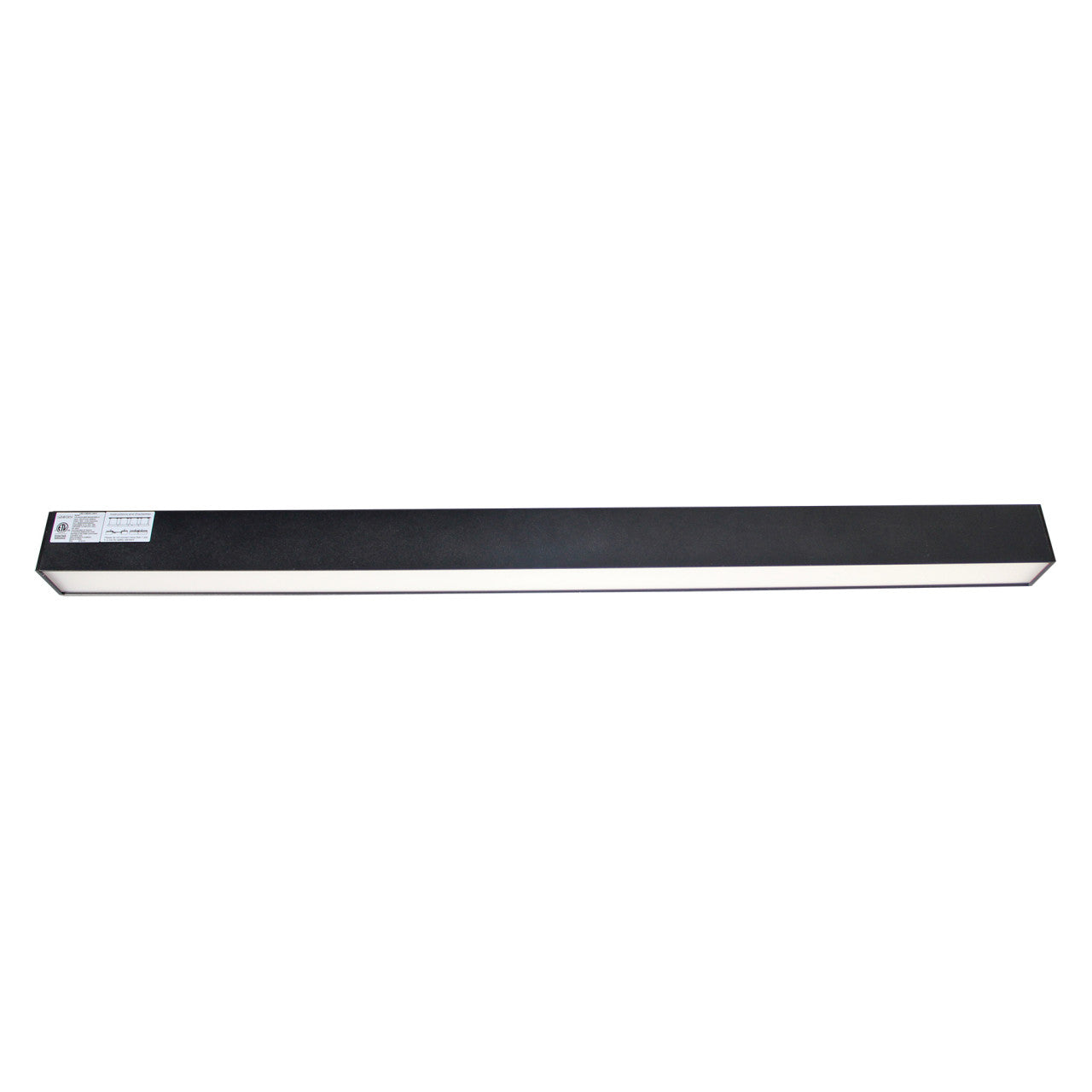

LED 4ft. Premium Architectural Up/Down Linear Light - 50 Watt - Color Tunable 30K/40K/50K - White, Black, or Silver Lamp Body - LumeGen

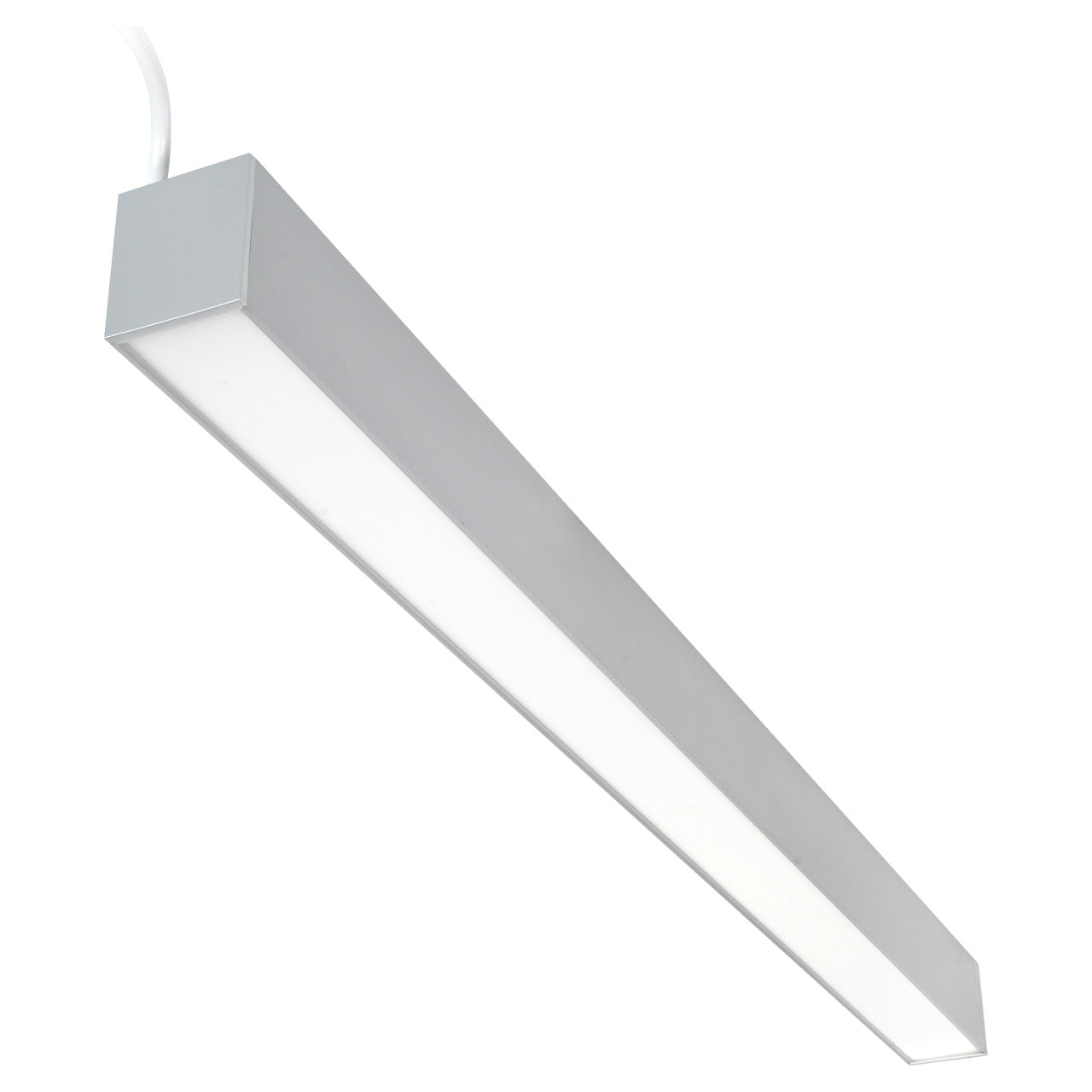

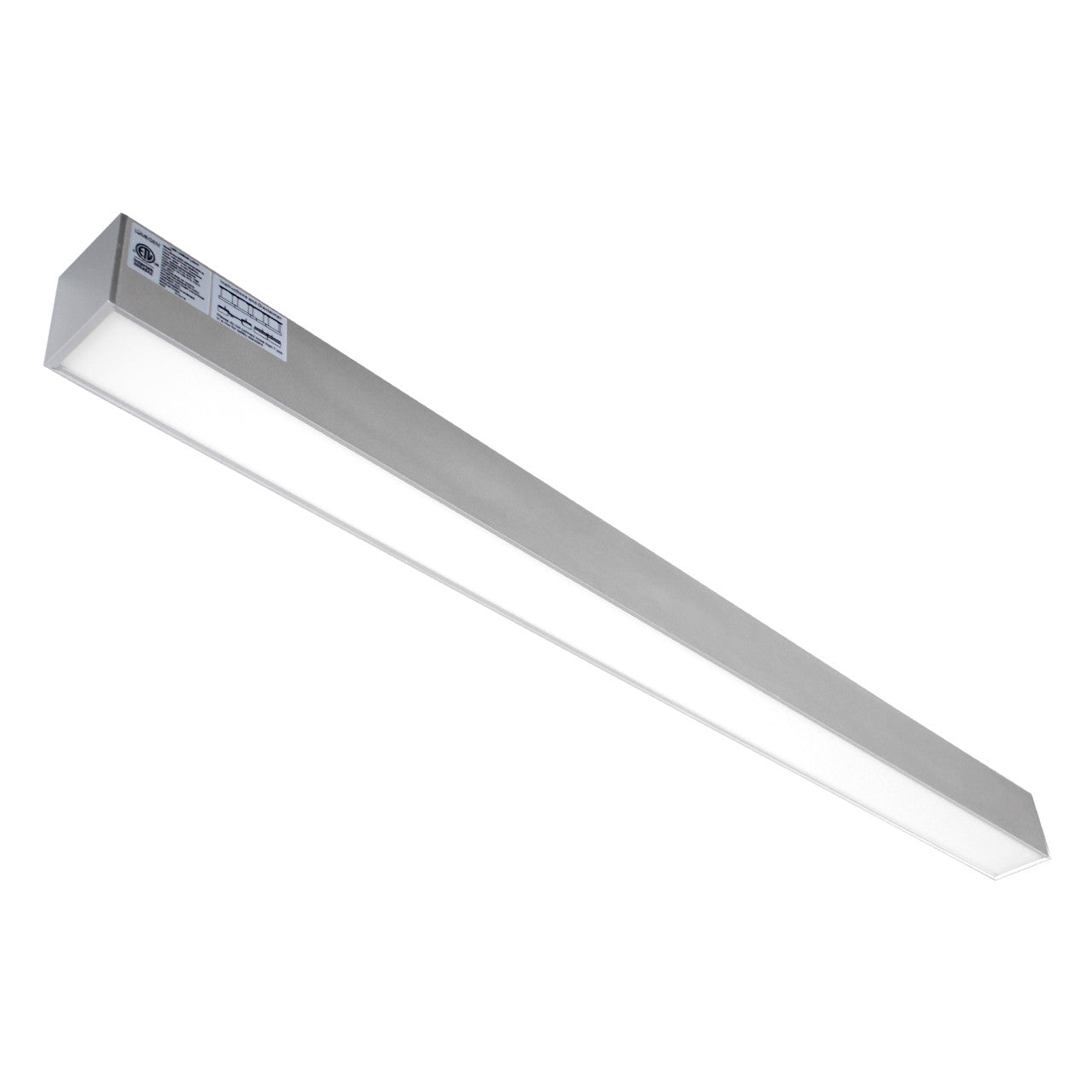

Improve the quality of lighting in your space with the 4ft. Suspended Linear Fixture. This LED fixture produces down lighting (direct) for task use and up lighting (indirect) for ambiance. This fixture is color selectable meaning it can be adjusted between 3000K, 4000K, and 5000K color temperatures allowing the user to select the desired color. It is available in 3 stylish finishes: Matte black, Silver, and Glossy White. The versatility of this light fixture is perfect for use in any commercial office, school, hotel, hospital and many other spaces.
This light uses 50W of total power split 70% down (35W) and 30% up (15W). The down light is 4000 Lumens and the up light is 1800 Lumens (Lumens ±10% depending on fixture finish). Long life span LEDs are rated to last at least 50,000 hours. It includes a 0-10V dimmable driver (0-10V dimmer sold separately).

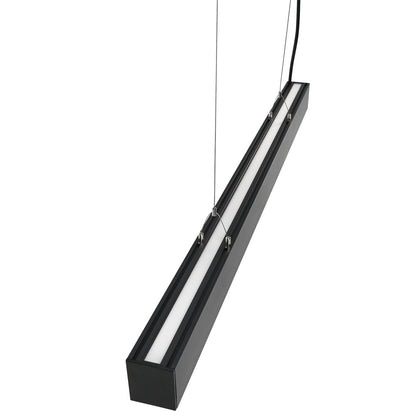

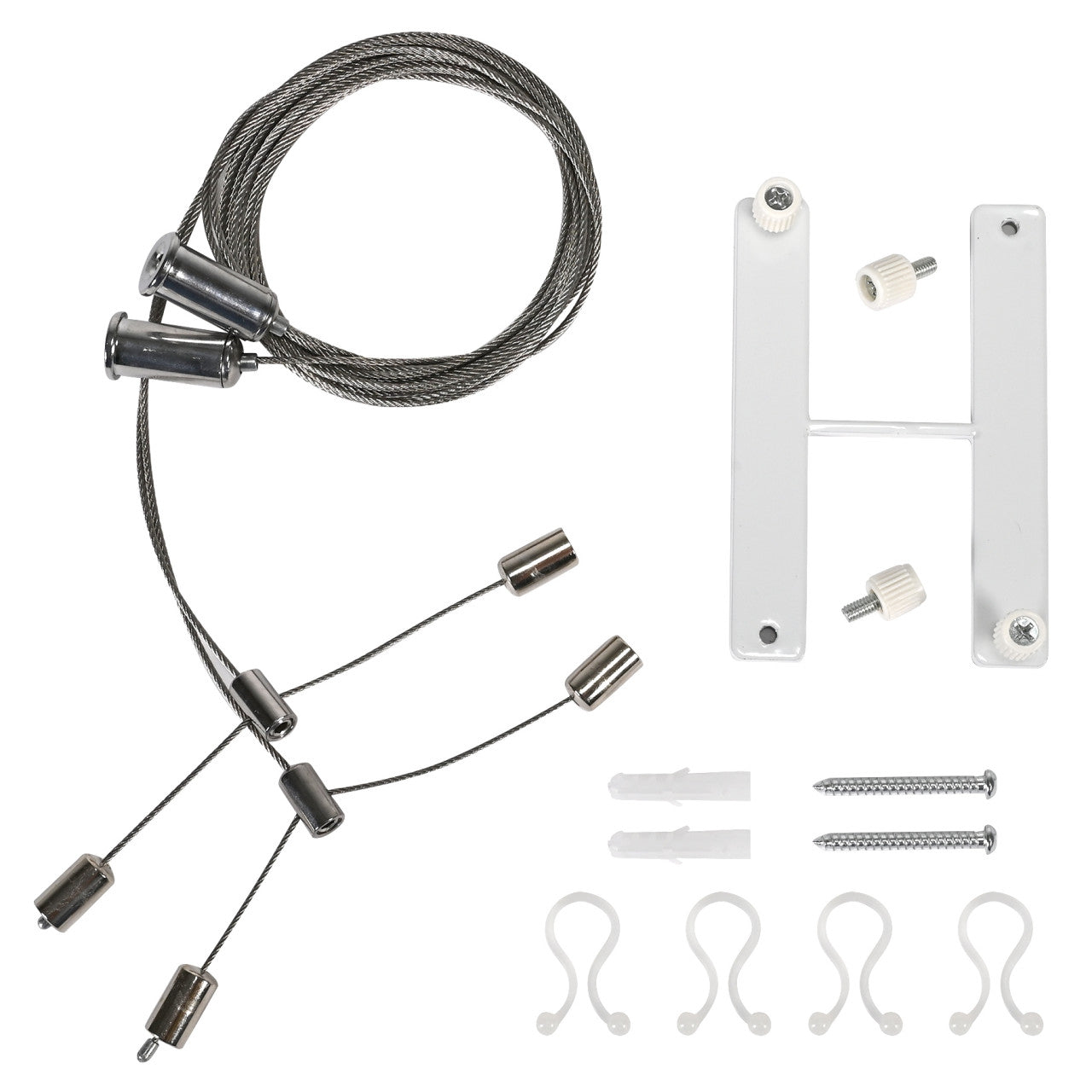

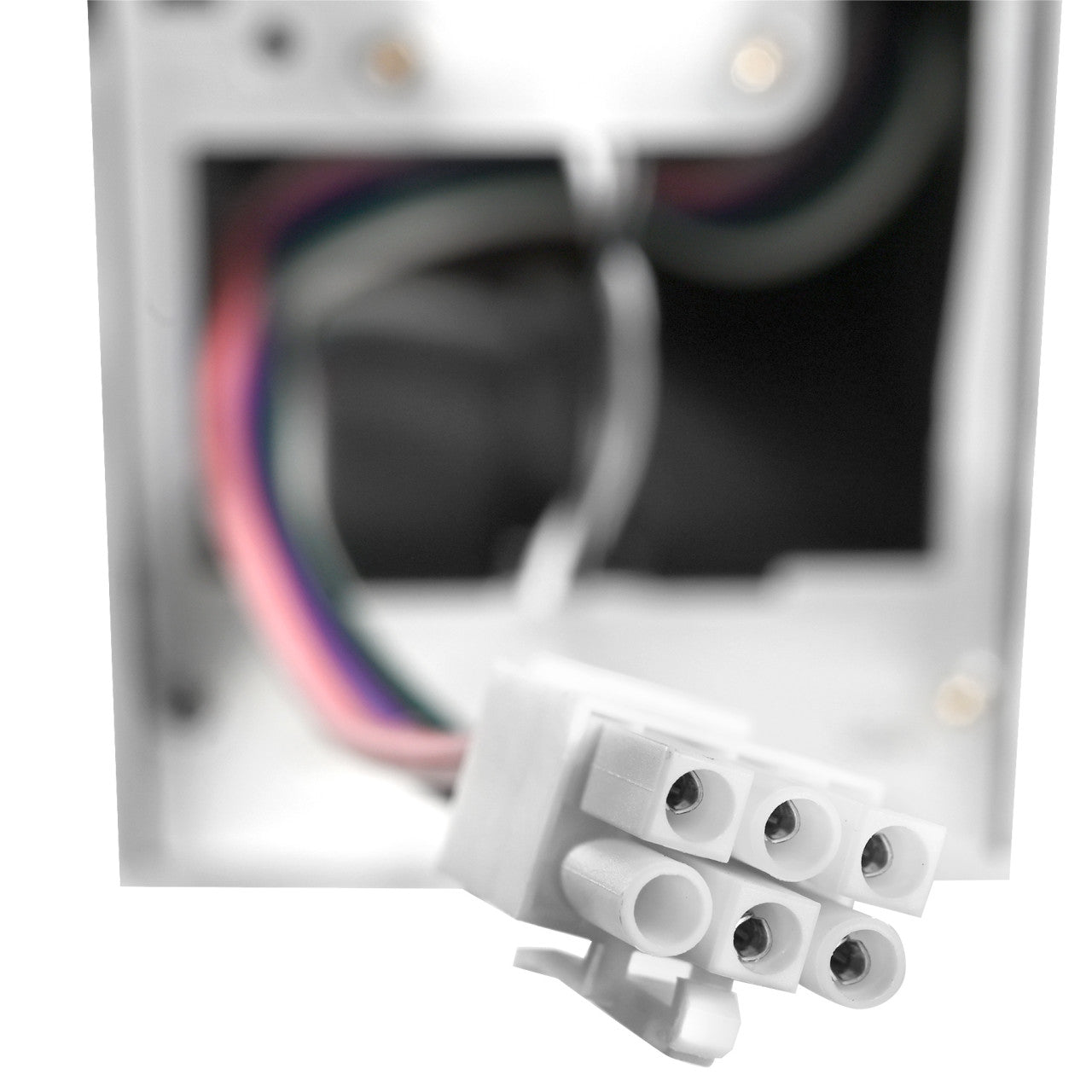

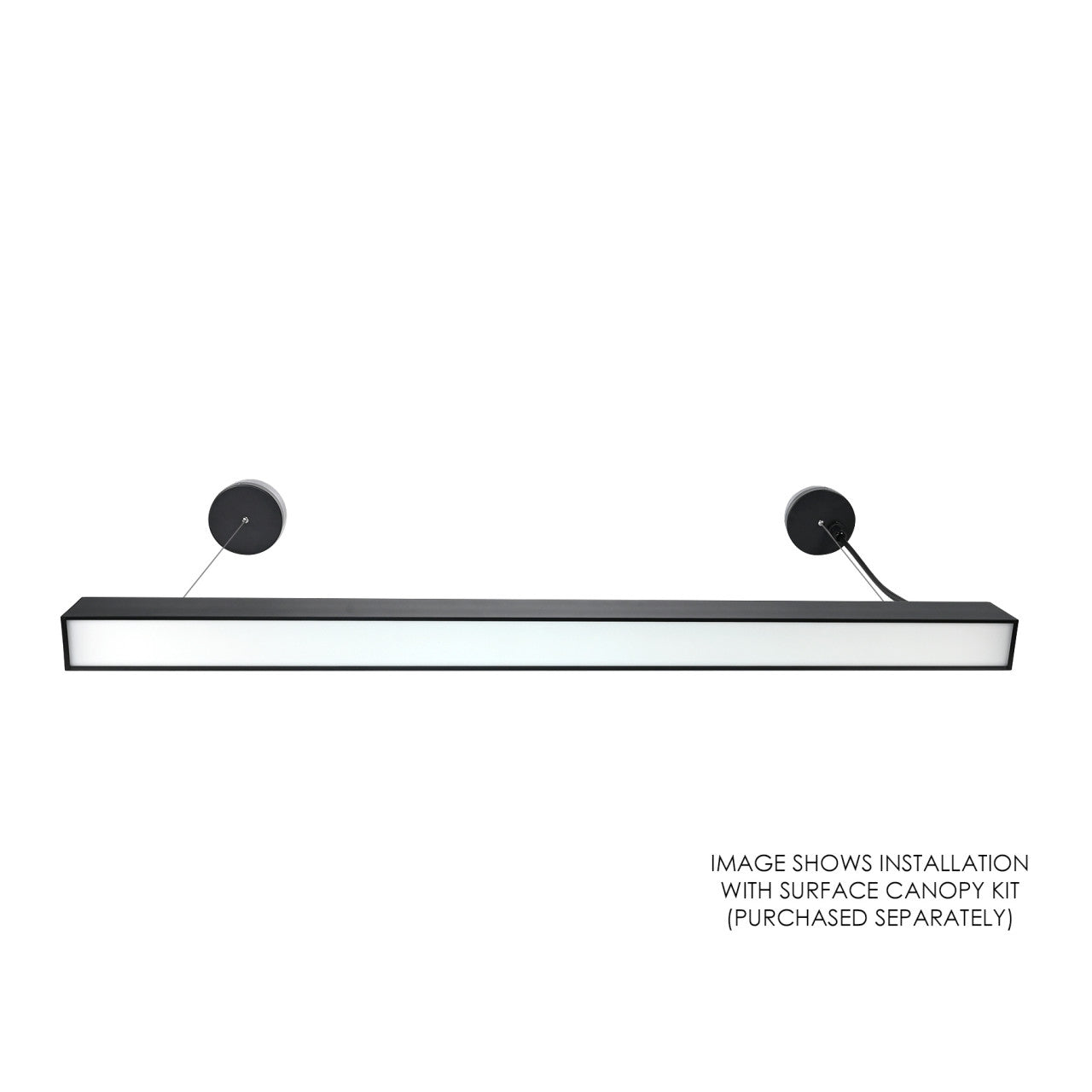

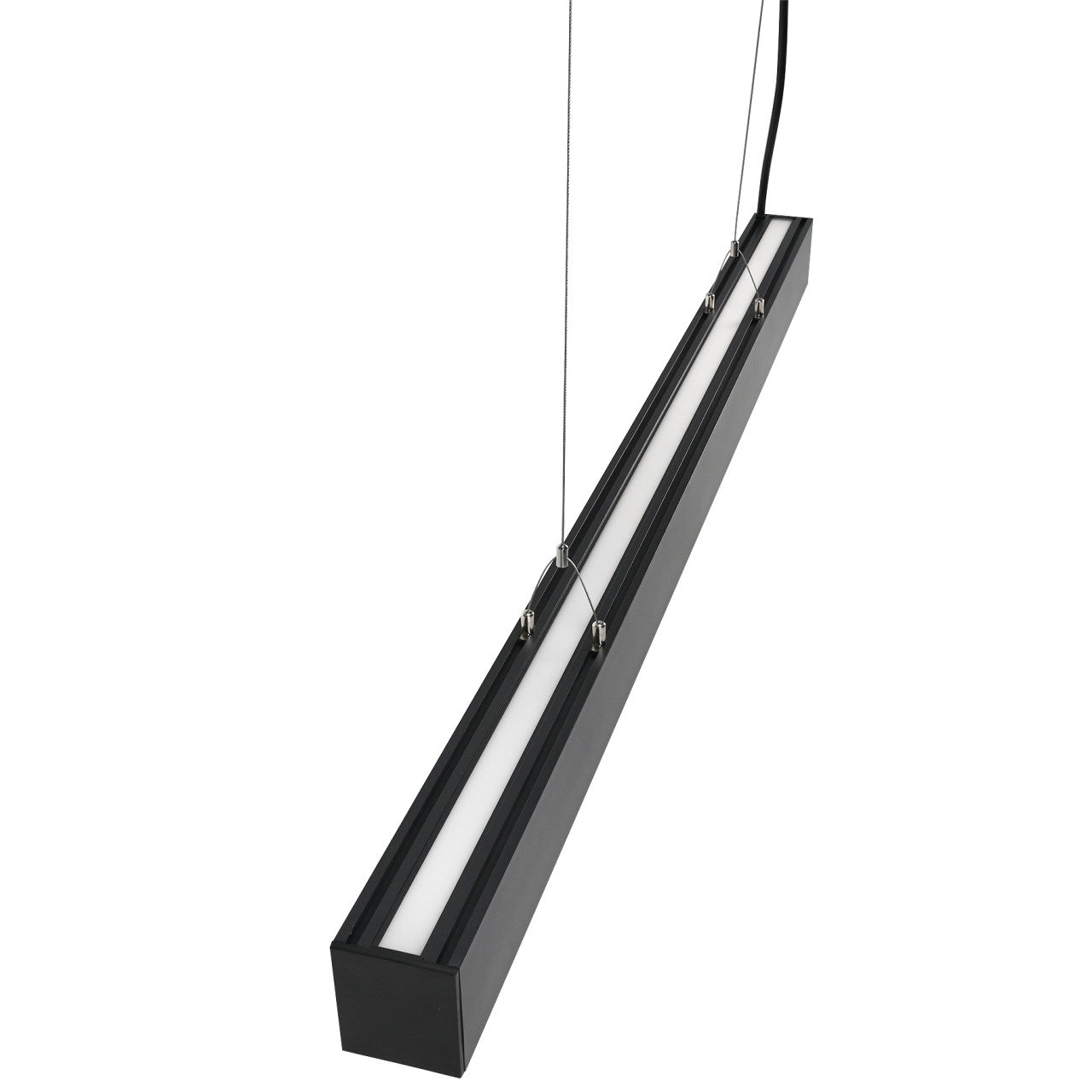

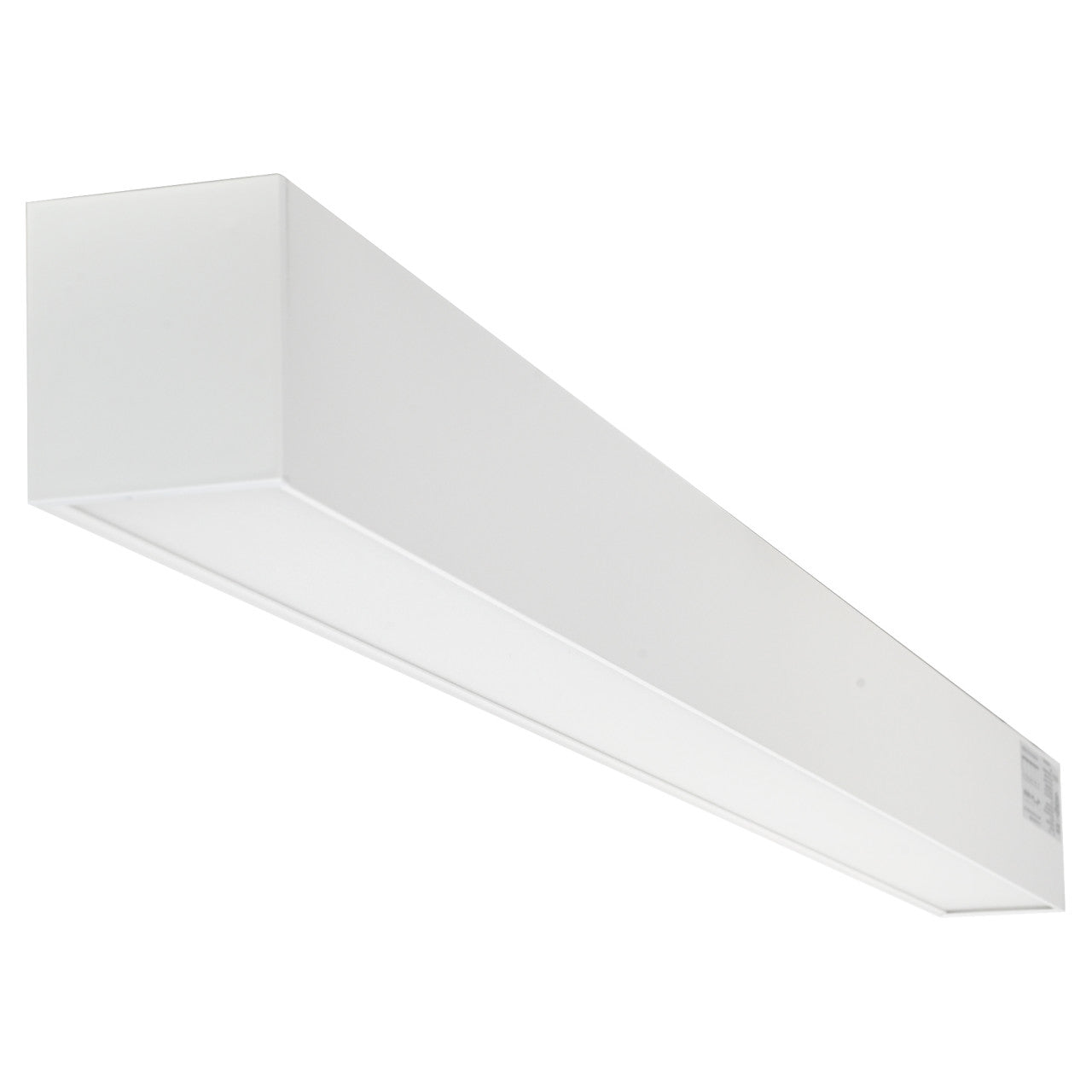

This LED strip light is constructed with an aluminum housing with removable K/O plates for easy wiring and end-to-end connections (linkable up to 7 fixtures). Installs flush to walls (wall bracket sold separately) or can be suspended from ceiling. A surface canopy box is also available (sold separately) for use to hide wiring and provide a finished appearance when used in suspension mounting applications. The cables for suspension mounting come with the LED fixture. They are not included within the surface canopy mount kit. It has a polycarbonate (PC) frosted shatterproof lens.
Specifications
- Wattage: 50W (35W Down | 15W Up)
- Lumens: 4000 Lumens Down | 1800 Lumens Up (±10% depending on fixture finish)
- Efficiency: 130 lm/w
- Input Voltage: 100-277V
- Power Factor: >0.9
- CRI: >80

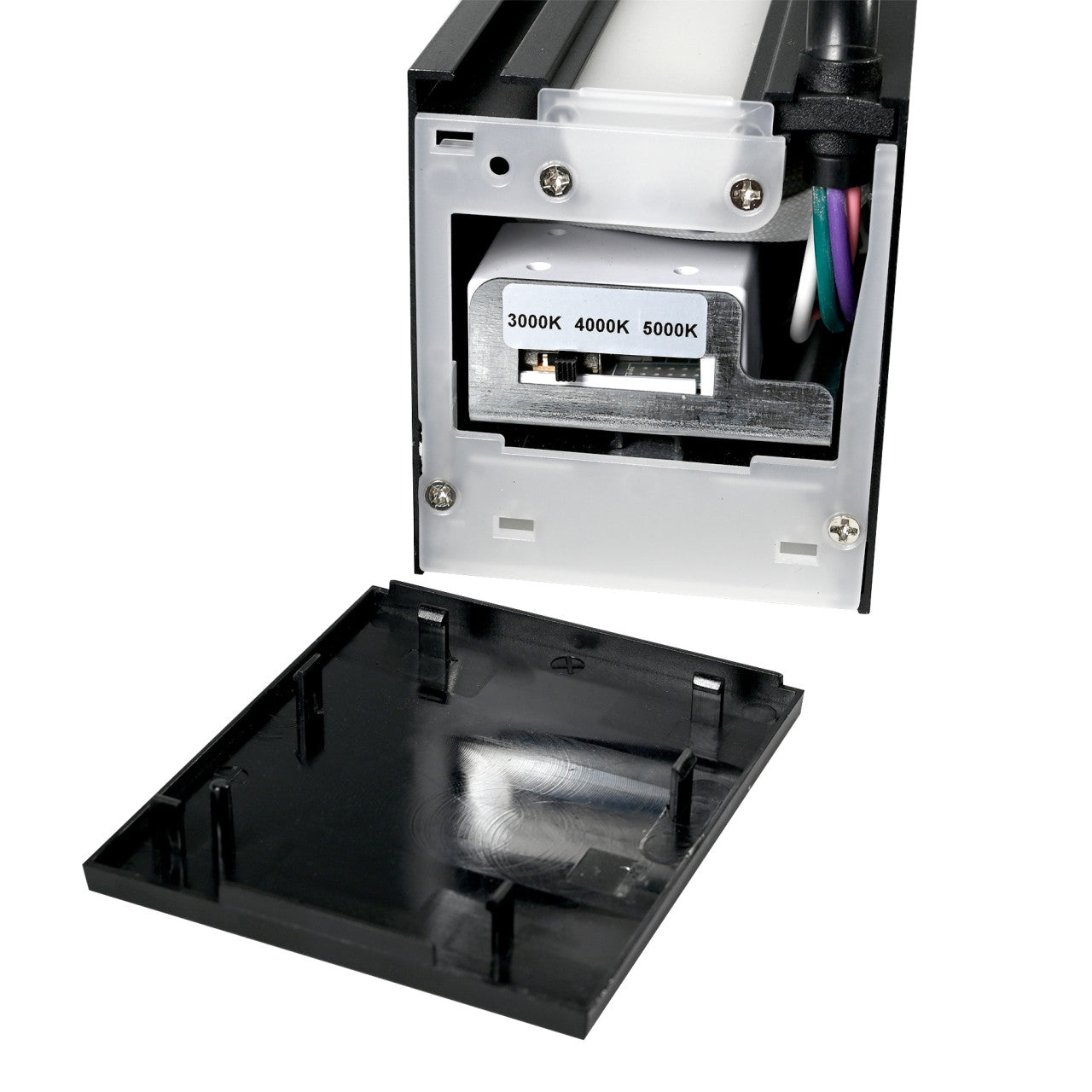

- CCT: 3000K/4000K/5000K Selectable
- Operating Temperature: -13°F ~ 122°F
- LED Life: >50,000 hours
- LED Beam Angle: 120°
- Surge Protection:5 kV

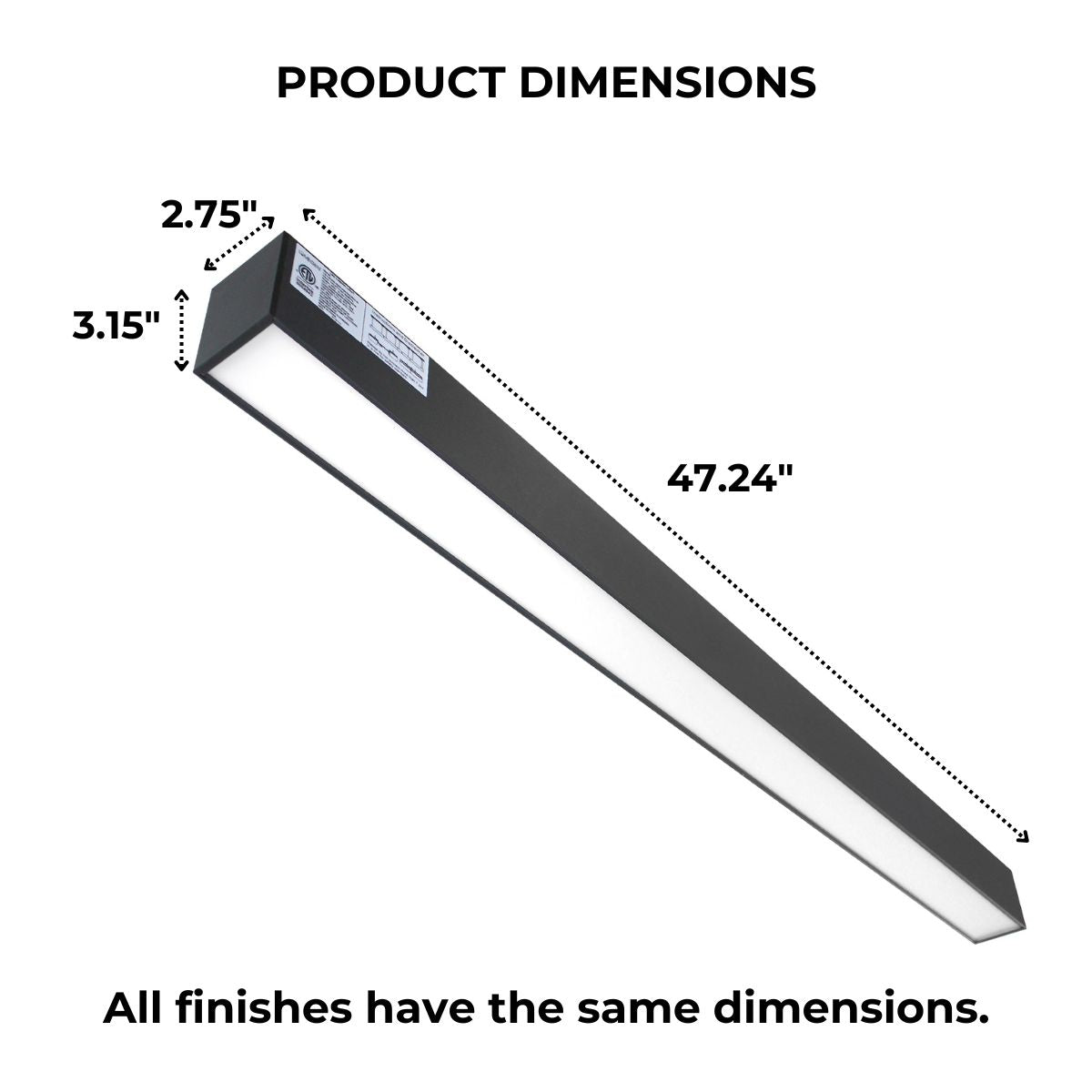

Product Dimensions - 47.24" L x 2.75" W x 3.15" D
Utility Rebates
This LED flat panel is also DLC Standard V5.1 listed meaning it is highly energy efficient and may qualify for utility rebates in certain areas. Learn more about LED Rebates.
Accessories
Optional Mounting Accessories:

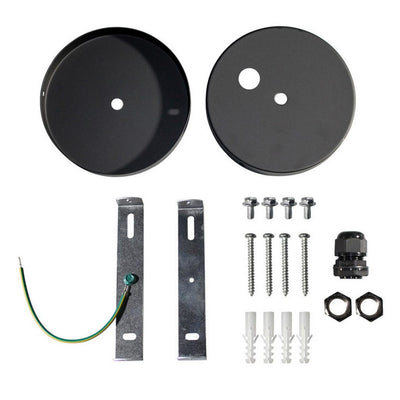

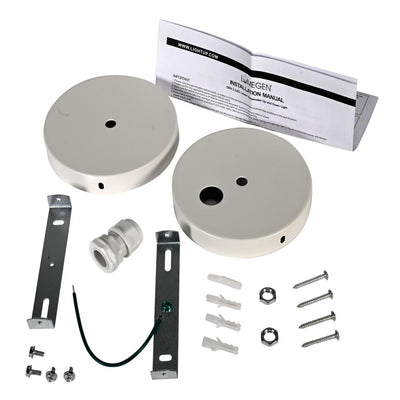

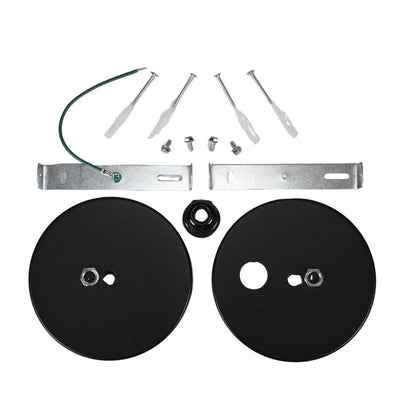

Surface Canopy Cover
- White - LEDMKLL1000051668
- Black - LEDMKLL1000051669
- Silver - LEDMKLL1000051670

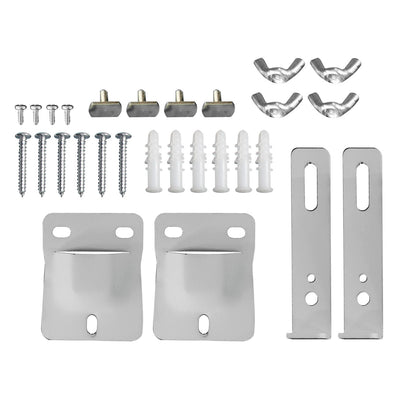

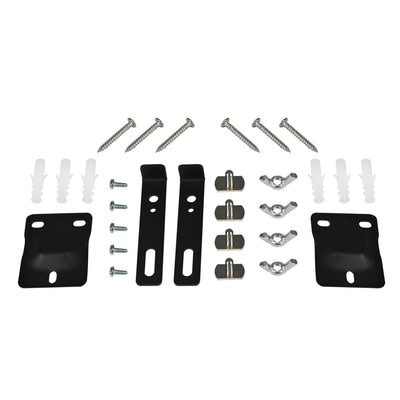

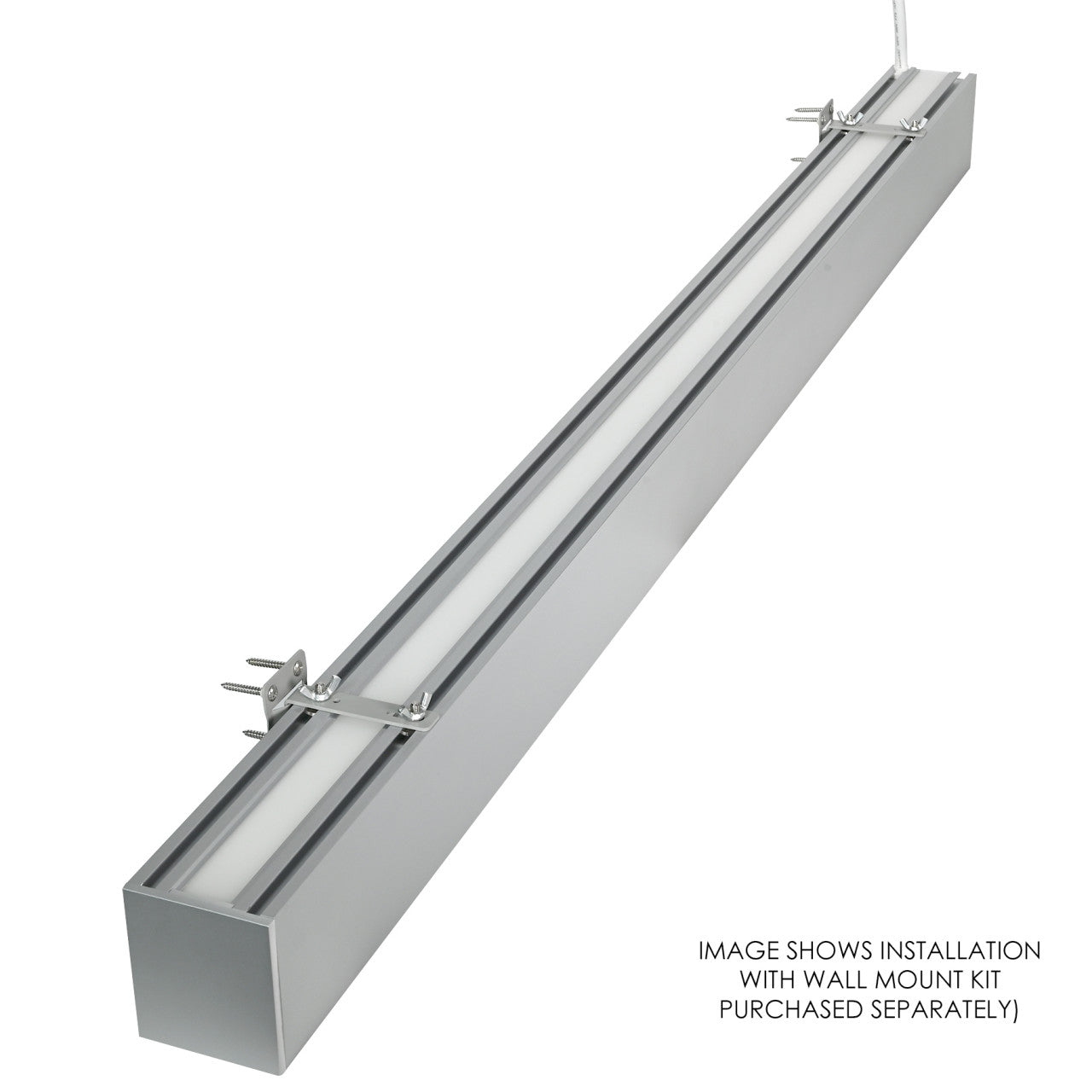

Wall Mount Bracket
- White - LEDMKLL1000051671
- Black - LEDMKLL1000051672
- Silver - LEDMKLL1000051673
Emergency LED Drivers
Emergency LED Driver SKUs LEDLEHD1000050403 & LEDLEHD1000050404 are sold separately and can be installed alongside the luminaire's normal driver and will kick into action when the emergency driver senses a power outage.
Need more lighting options? Explore flat panels, solar lighting, and more from LumeGen.
Product Specifications
| Certificate | Description |
|---|---|
ETL Listed |
ETL Listed refers to products that have been tested and cetified by global testing, inspection, and certification organization Intertek. Intertek is an OSHA recognized NRTL and the ETL mark is an approved listing for product that comply with North American safety standards. The ETL mark is one of the most prominent marks for lighting fixtures in the US besides UL. |
DLC Listed |
The DesignLights Consortium (DLC), sets criteria for energy-efficient LED products, ensuring they meet strict performance and efficiency standards. DLC Listed products meet baseline requirements and are eligible for rebates. |
