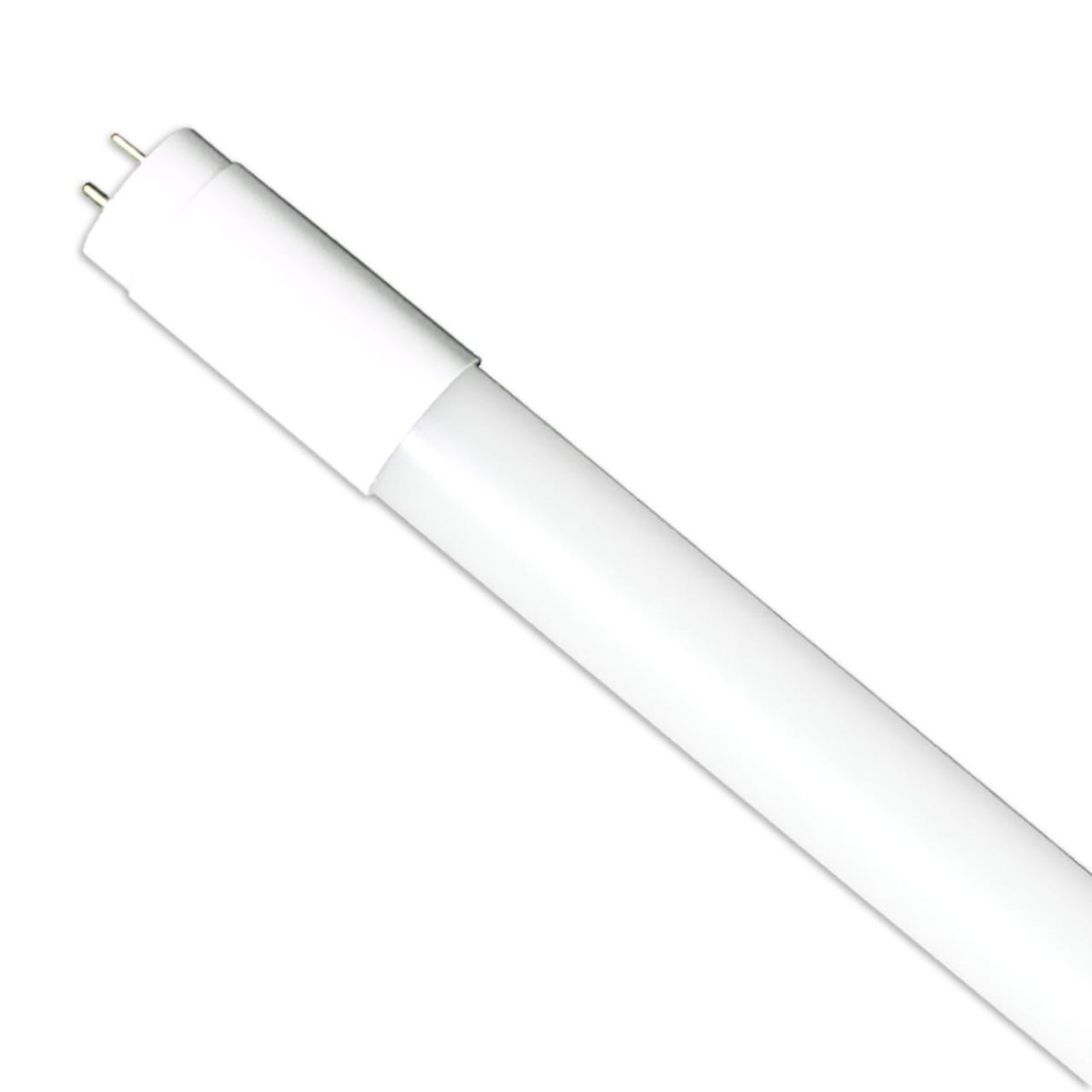

Replace those flickering fluorescent bulbs with this 4ft. LED T8 Type A Linear Tube. This energy-efficient LED tube comes in a case of 42 that makes it perfect for your next job or to upgrade the lighting at your business.
Please see the Ballast Compatibility List to verify your ballast is compatible with this tube .
Notable Specs:
- Type A
- 4ft. Length
- 14W
- 32W Fluorescent Tube Equivalent
- 1890 Lumens
- >80 CRI
- Dimmable
- Available in 4000K Color Temperature
- 320° Beam Angle
- 100-277VAC, 347 V Input Voltage with ballast
- Double Ended Power
- Nano All Plastic Lens
- RoHS Compliant, UL Listed, NSF, FCC Compliant
- Dimension (of one LED Linear Tube) - 48" L x 1" W x 1" H
Discover the Benefits of Plug and Play LED Tubes
Plug and Play LED Tubes are here to stay! They make it easy to replace fluorescent tubes and upgrade your space with bright LED light. Plug and play tubes are easy to install. The process is easy as Step 1, 2, and 3.*
- Turn off power to the light being changed before installation using the switch on the breaker panel.
- Remove the fluorescent tubes. Remember - Fluorescent tubes contain mercury and should be disposed of properly.
- Install the LED tubes and turn the power back on.
*Please make sure to read the instruction manual of the LED tubes and fixture the tubes are being installed into as the above instructions may not be 100% correct per the specific tubes or product.
Can you put led tube lights in a fluorescent fixture? Can I replace my fluorescent T8 linear bulbs with LEDs?
Yes! LED Tubes can be installed into a fluorescent fixture. When tubes are Type A + B. Type A or Type B, it is easy to replace those flickering fluorescents. A brief explanation of Type A and B LED linear tubes is below.
Type A LED Linear Tubes are often called "plug and play" tubes. This is because they can simply be installed into the existing fixture.
Type B LED Linear Tubes are often referred to as "ballast bypass." They work with all fluorescent fixtures including ballast-free fixtures. Type B linear tubes power goes directly to the lamp sockets and no longer through the ballast.
Type A + B can be used with or without a ballast. It is ultimately the buyer's preference what they want to do. Type A installation uses the LED Tube + Ballast power for more energy consumption compared to Type B installation only uses the raw tube power and is more energy-efficient.
What does ballast bypass mean? How does ballast bypass work?
Ballast bypass means when installing the LED linear tube, the fixture's ballast will need to be removed first. The power will then go directly to the lamp sockets and no longer through the ballast. The benefits of ballast bypass LED replacement tubes include lights not being shut down by a ballast failure, no more ballast replacements, and savings on the energy bill because energy is no longer drawing from the ballast.
Emergency Drivers: Constant-power emergency drivers with 90-minute run time are available to add on to your LED high bays to increase fire safety and comply with local fire safety codes. Check out our selection of LED emergency drivers.
Product Specifications
| Certificate | Description |
|---|---|
UL Listed |
UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US. |
NSF |
NSF rated lighting is a type of lighting that is tested and certified to meet the requirements of the National Sanitation Foundation including meeting certain safety requirements and providing proper levels of illumination. NSF rated fixtures and lamps are safe to use in food processing facilities and are tested to ensure they provide adequate light output for food preparation and storage areas, are completely shatterproof to ensure no broken glass over food or food equipment and are easily accessible and easy to clean to minimize the breeding of bacteria or mold. |
