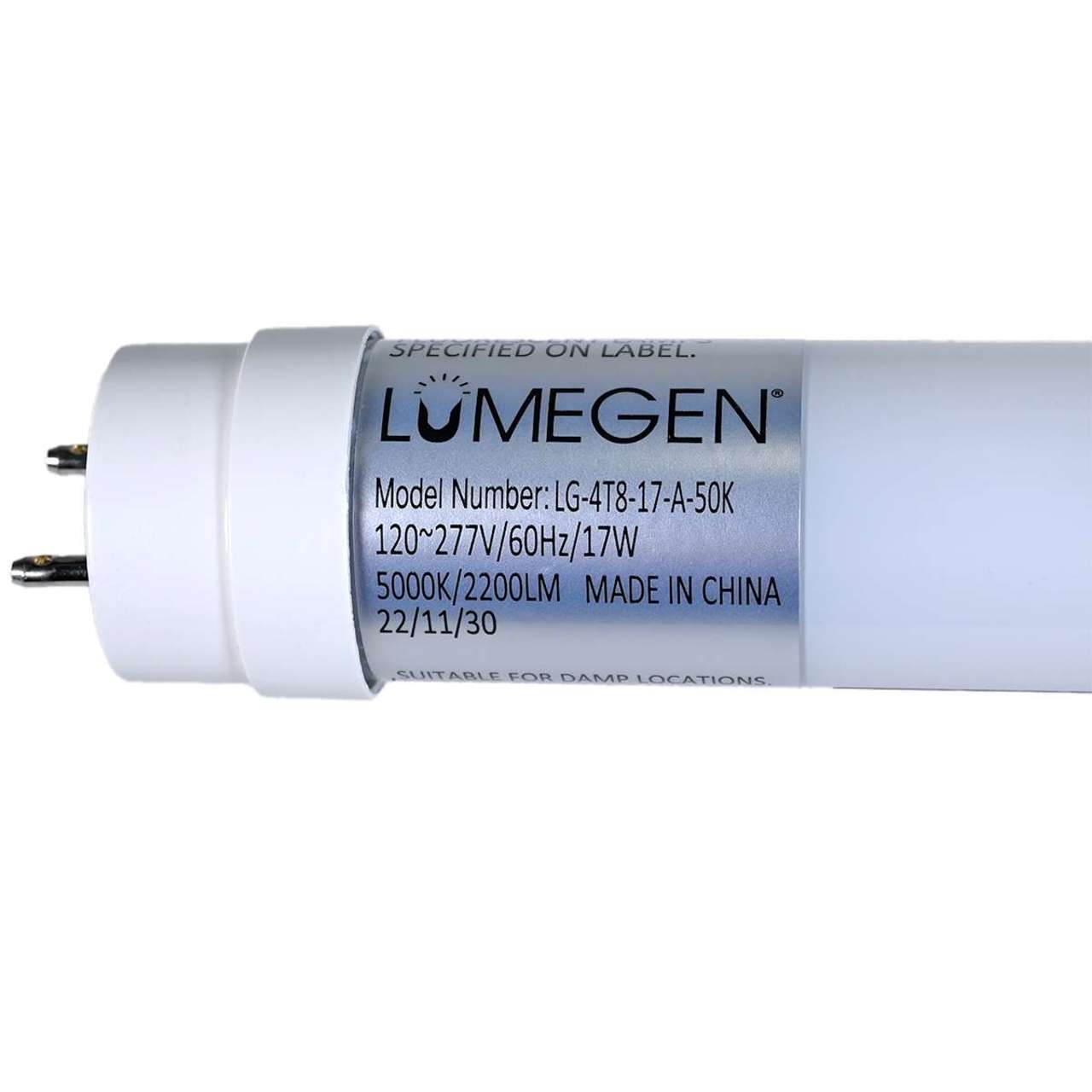

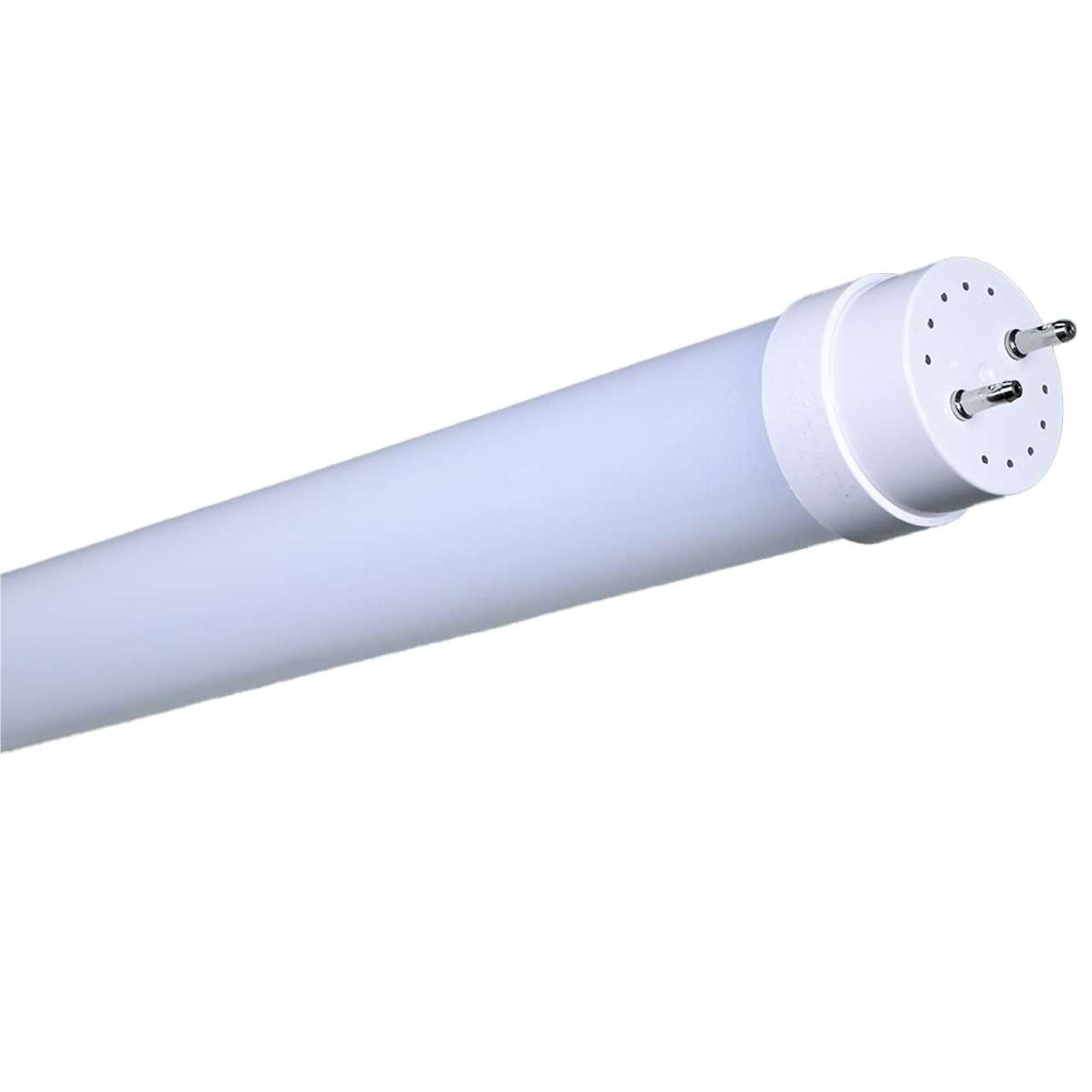

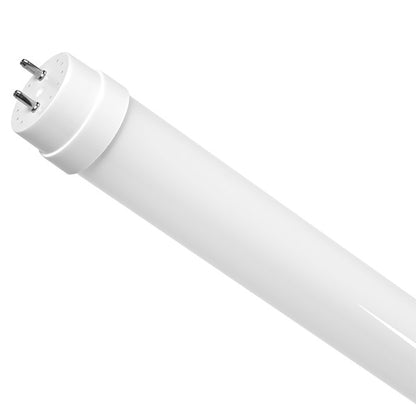

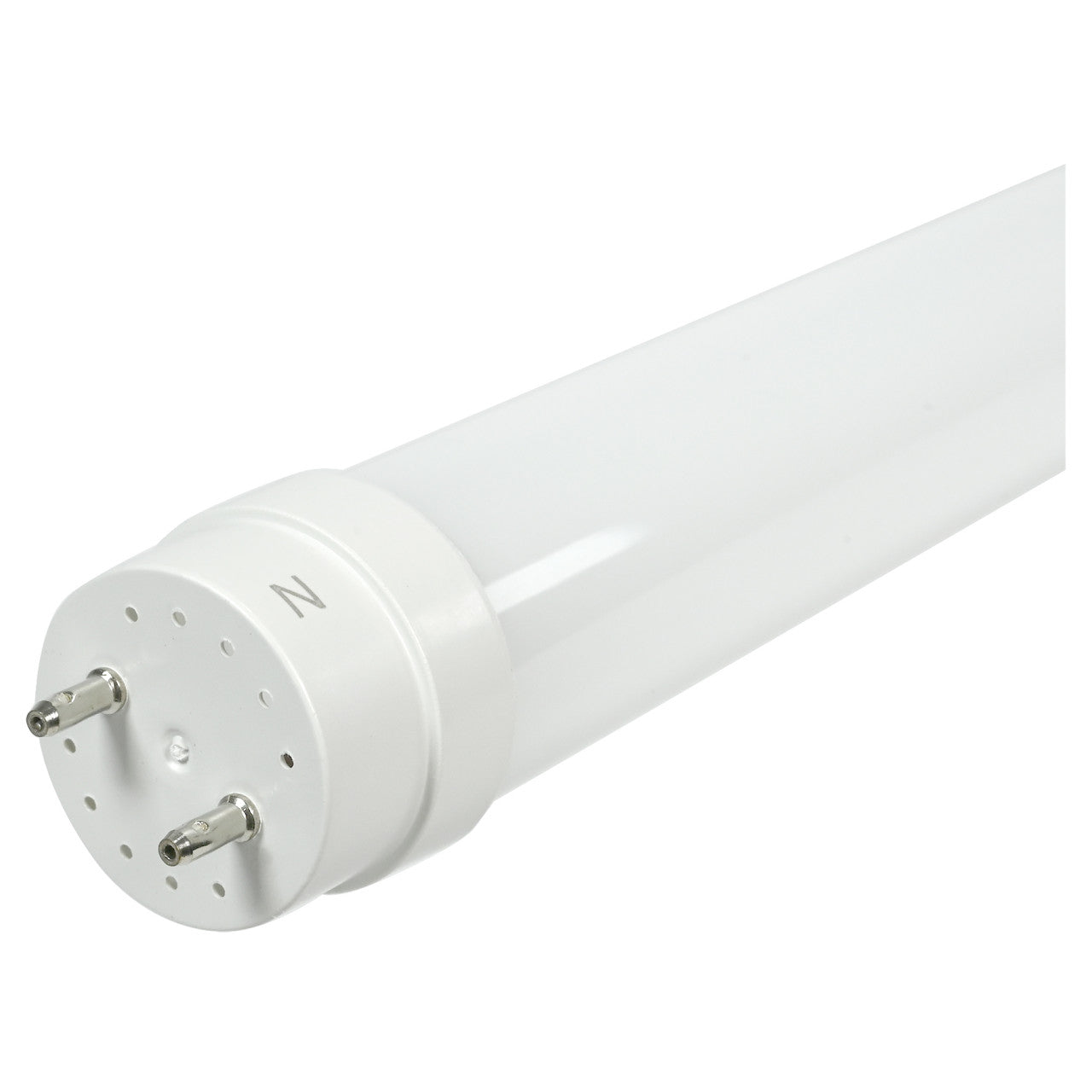

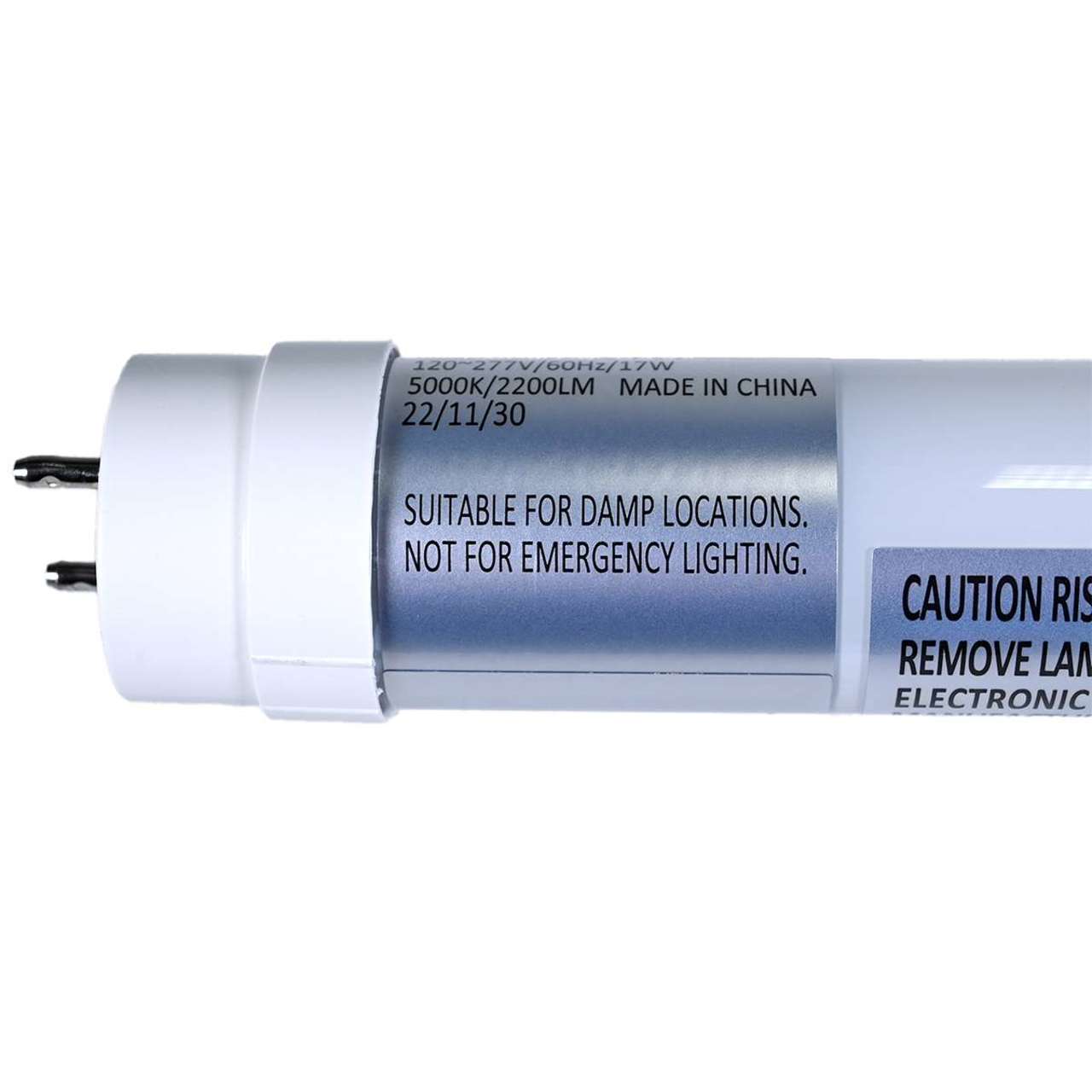

Case of 25 - 4ft LED T8 Tube - Type A - 17W - 2200 Lumens - LumeGen

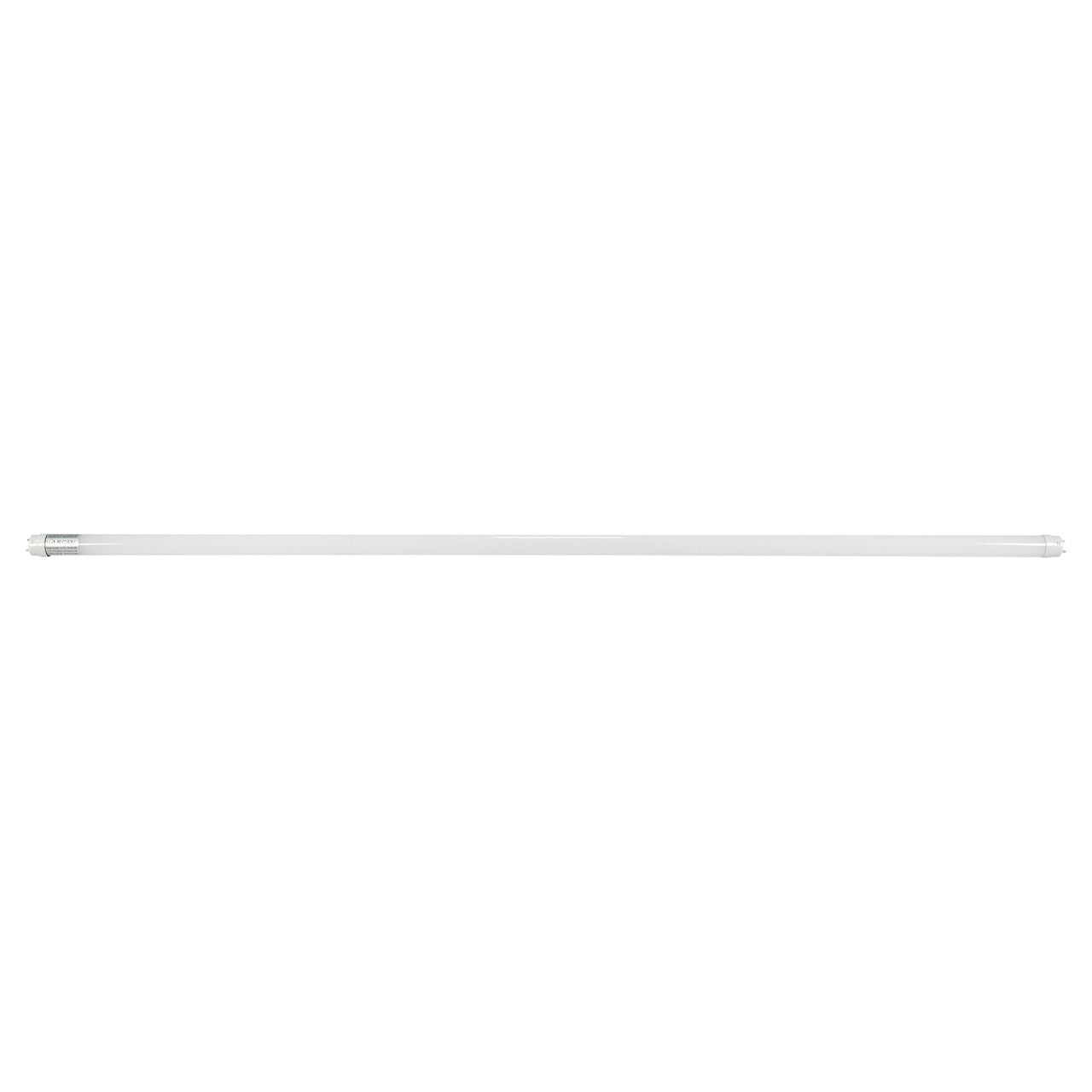

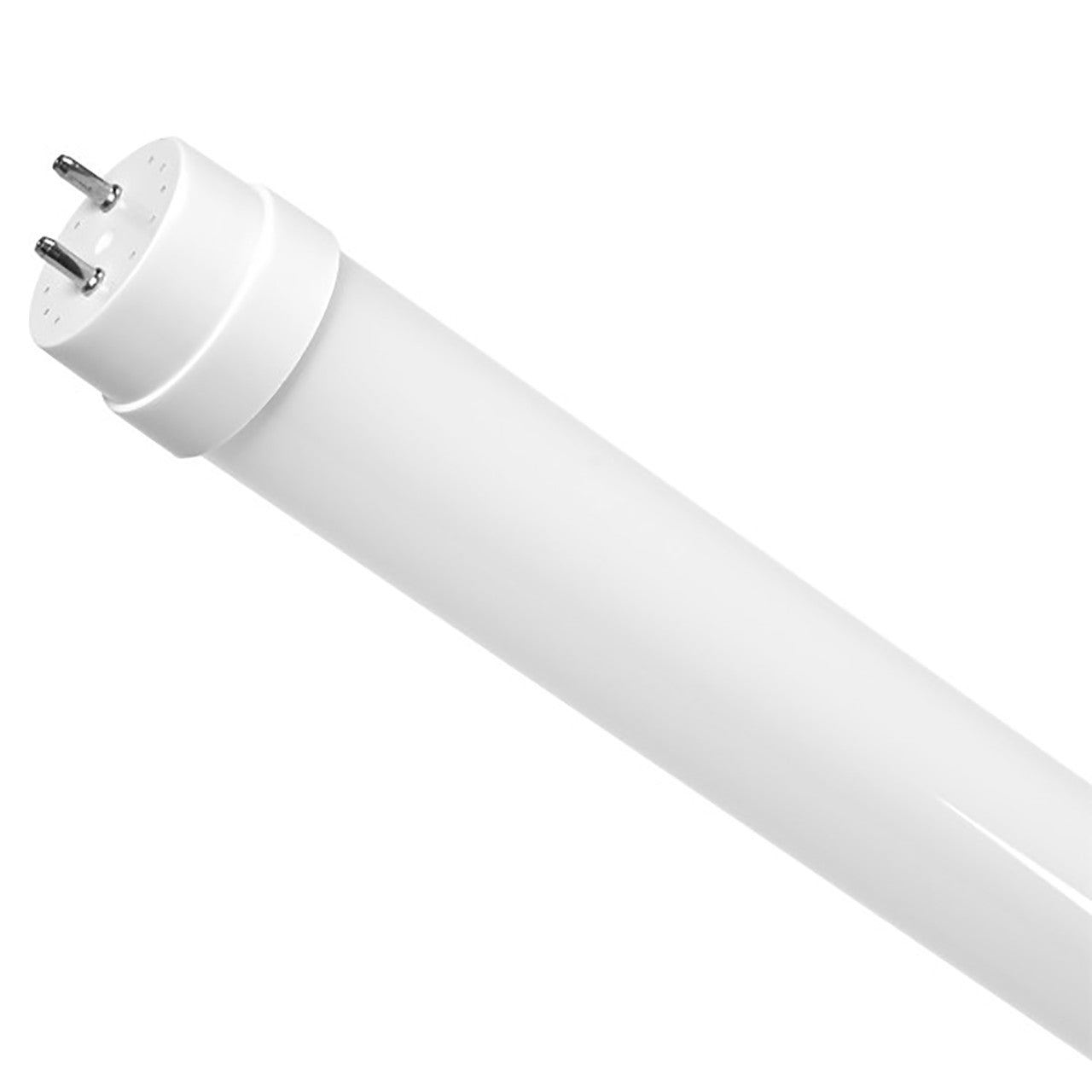

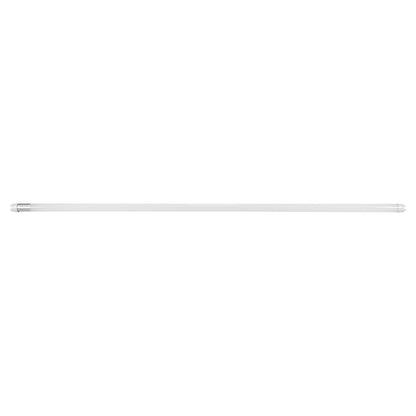

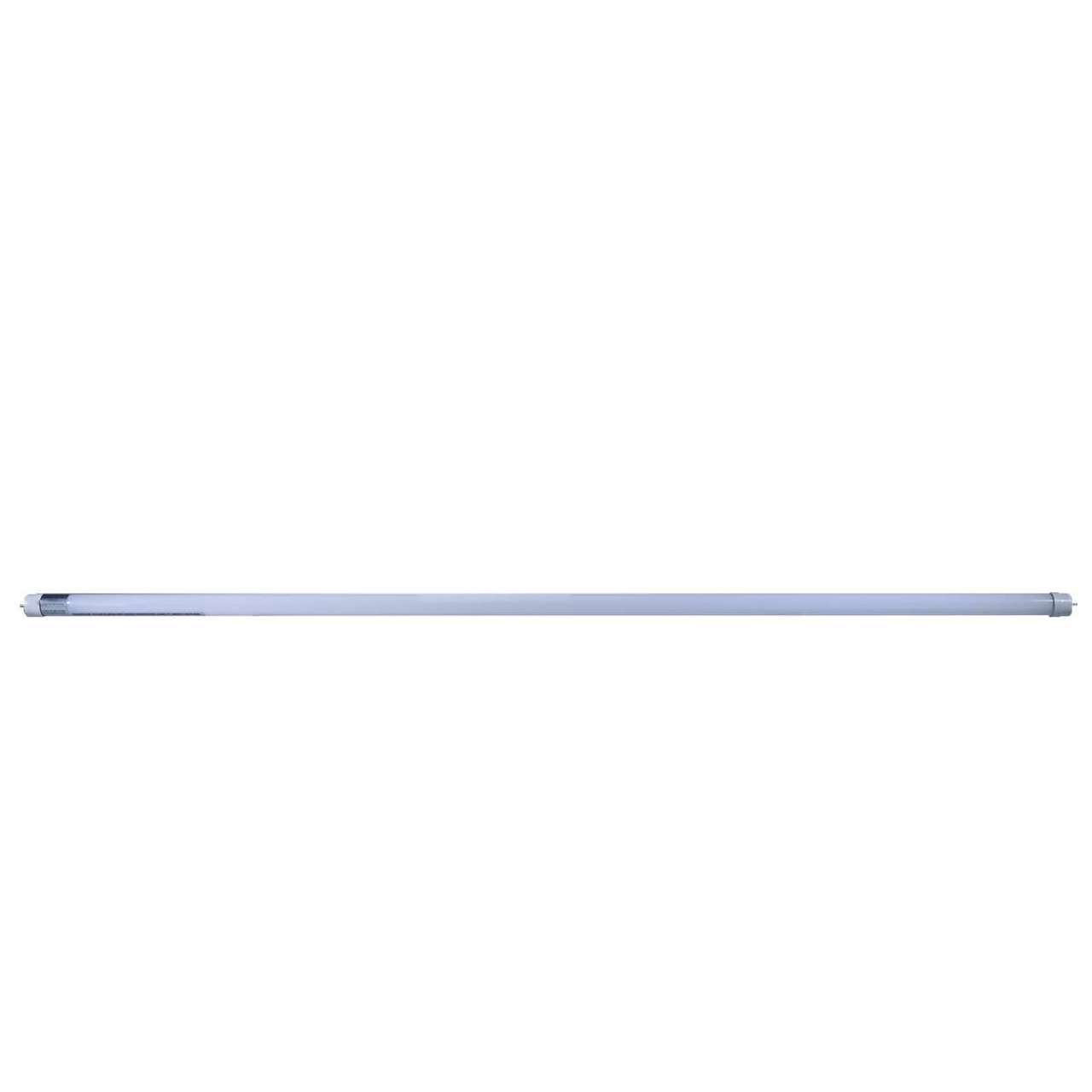

This 4ft LED T8 Ballast Compatible Tube is a perfect pick for any commercial or residential setting including supermarkets, factories, hotels, conference rooms, schools, and offices. Type A LED Tubes are plug and play with compatible fluorescent ballasts with no need to rewire the fixture! LED Tubes are more energy efficient and longer lasting than fluorescent tubes and contain no hazardous materials! This tube is made with frosted glass.
Specifications
- Type A

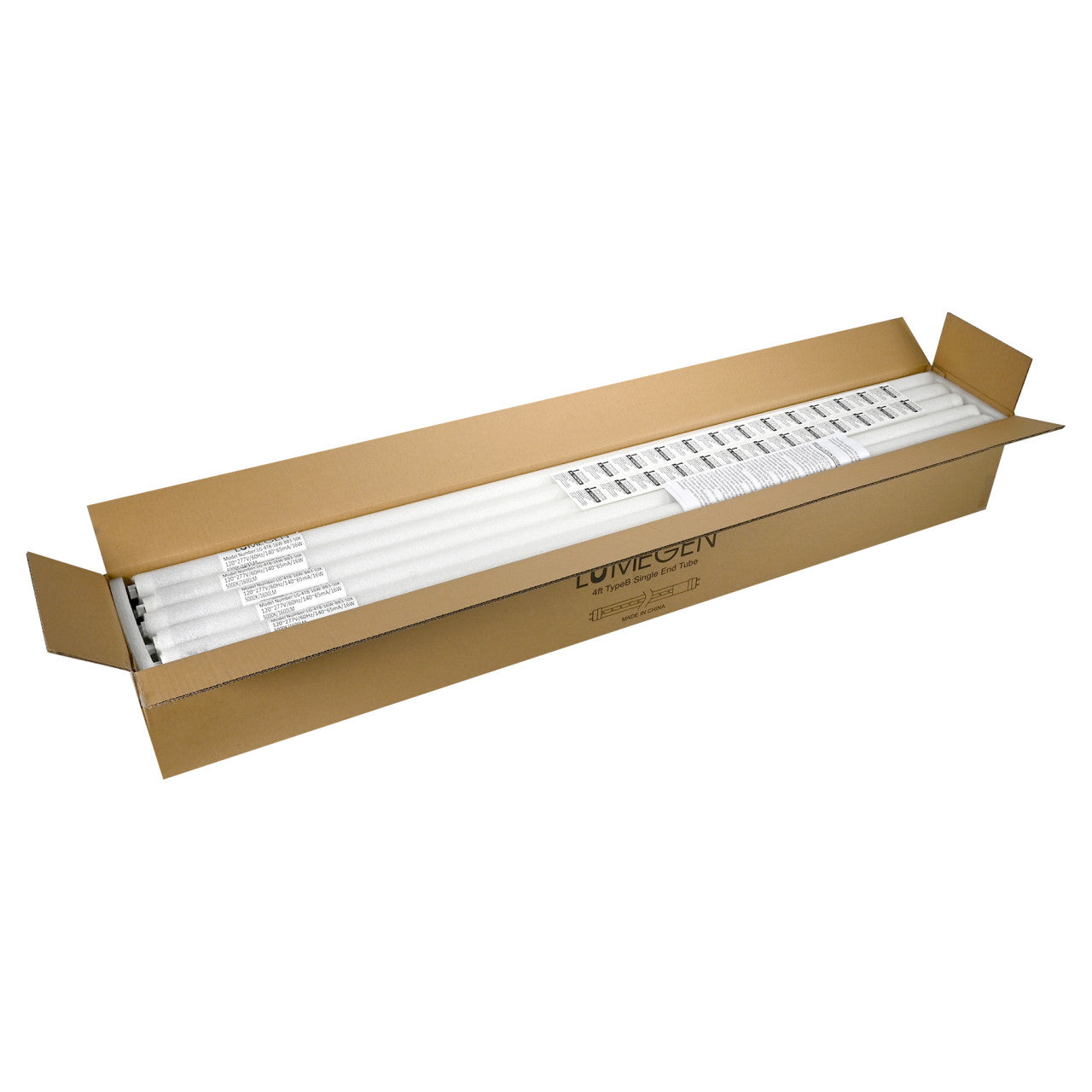

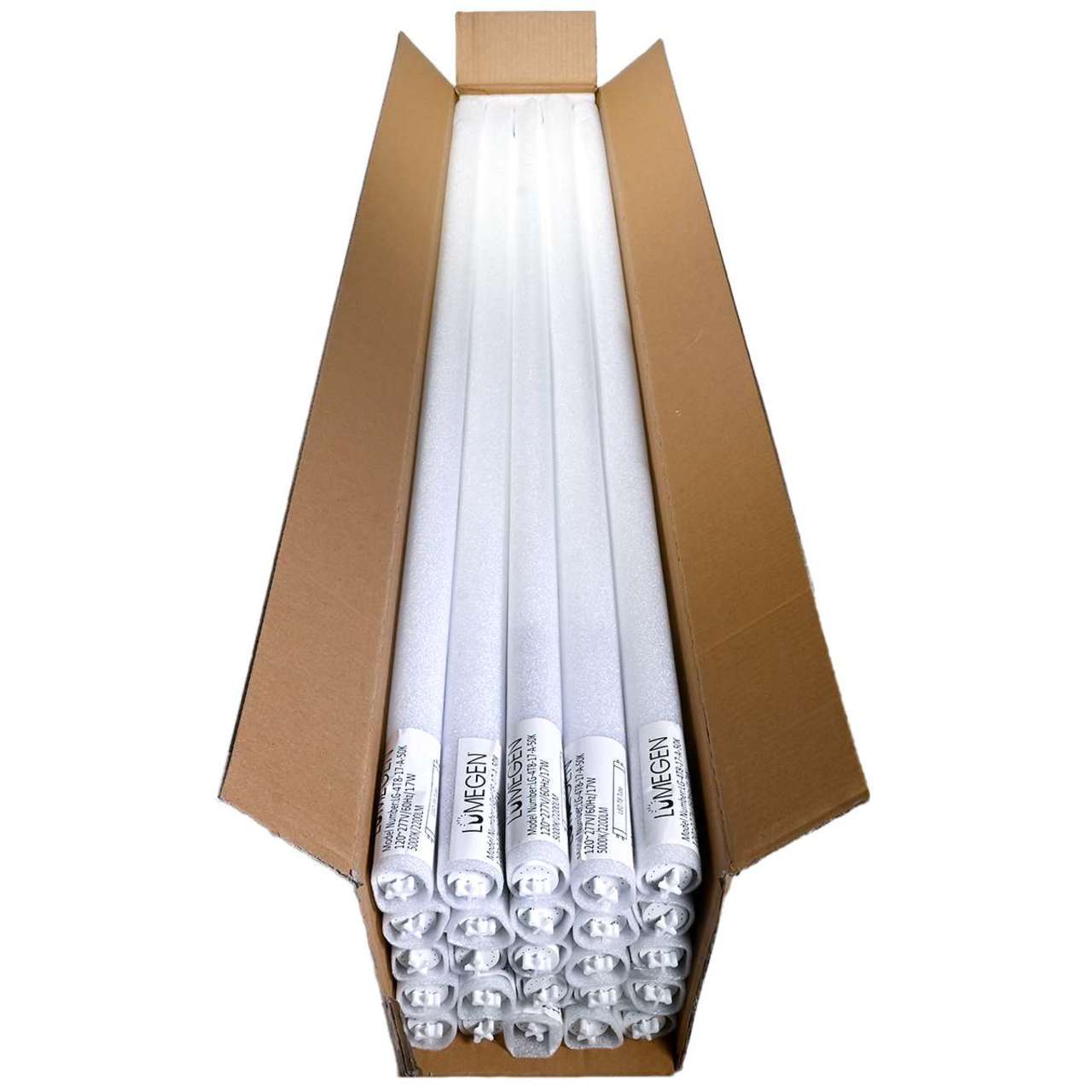

- Case of 25
- 4ft. Length
- 17W
- 32W Fluorescent Tube Equivalent
- 2200 Lumens
- 80 CRI
- Dimmable (0-10V) as long as fixture ballast is dimmable
- Available in 3500K, 4000K, and 5000K Color Temperature
- 240° Beam Angle
- AC120-277V Input Voltage
- Single & Double Ended Power
- Frosted Glass lens

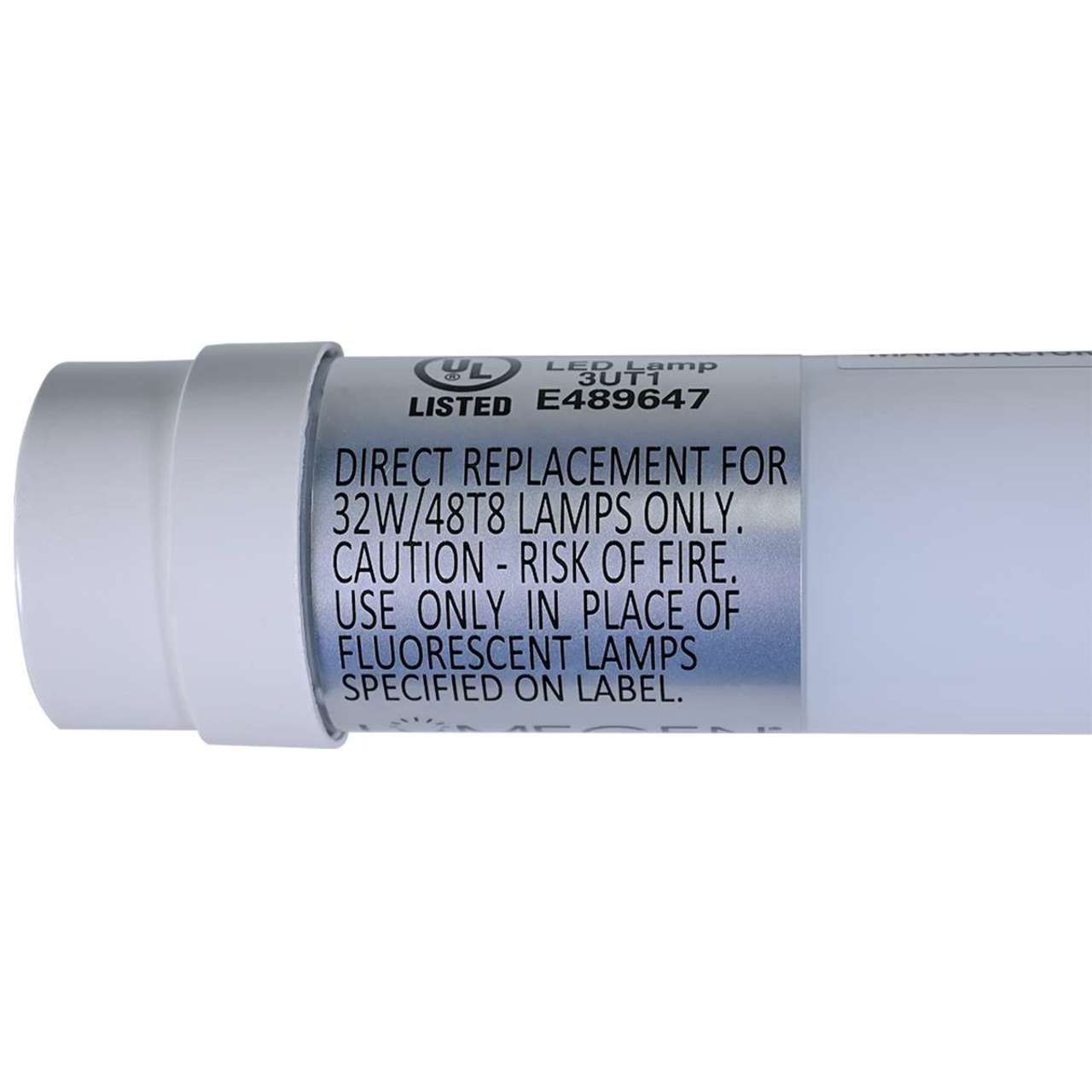

- UL Listed, DLC Standard V5.1
- DLC QPL IDs: 35K: S-JCNZFR | 40K: S-LO4HTD | 50K: S-P1HR89
Utility Rebates
This LED tube is DLC Standard 5.1 rated and may be eligible for additional utility rebates in certain areas. Learn more about LED Rebates.
Discover the Benefits of Plug and Play LED Tubes
Plug and Play LED Tubes (also known as Type A) are here to stay! They make it easy to replace fluorescent tubes and upgrade your space with bright LED light. Plug and play tubes are easy to install. The process is easy as Step 1, 2, and 3.*
- Turn off power to the light being changed before installation using the switch on the breaker panel.
- Remove the fluorescent tubes. Remember - Fluorescent tubes contain mercury and should be disposed of properly.
- Install the LED tubes and turn the power back on.
*Please make sure to read the instruction manual of the LED tubes and fixture the tubes are being installed into as the above instructions may not be 100% correct per the specific tubes or product.
FAQs
Can you put led tube lights in a fluorescent fixture? Can I replace my fluorescent T8 linear bulbs with LEDs?
Yes! LED Tubes can be installed into a fluorescent fixture. When tubes are Type A or Type A + B (Type A or Type B) it is easy to replace those flickering fluorescents. A brief explanation of Type A and B LED linear tubes is below.
Type A LED Linear Tubes are often called "plug and play" tubes. This is because they can simply be installed into the existing fixture.
Type B LED Linear Tubes are often referred to as "ballast bypass." They work with all fluorescent fixtures including ballast-free fixtures. Type B linear tubes power goes directly to the lamp sockets and no longer through the ballast.
Type A + B can be used with or without a ballast. It is ultimately the buyer's preference what they want to do. Type A installation uses the LED Tube + Ballast power for more energy consumption compared to Type B installation only uses the raw tube power and is more energy-efficient.
Need more lighting options? Explore flat panels, solar lighting, and more from LumeGen.
Product Specifications
| Certificate | Description |
|---|---|
UL Listed |
UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US. |
DLC Listed |
The DesignLights Consortium (DLC), sets criteria for energy-efficient LED products, ensuring they meet strict performance and efficiency standards. DLC Listed products meet baseline requirements and are eligible for rebates. |
