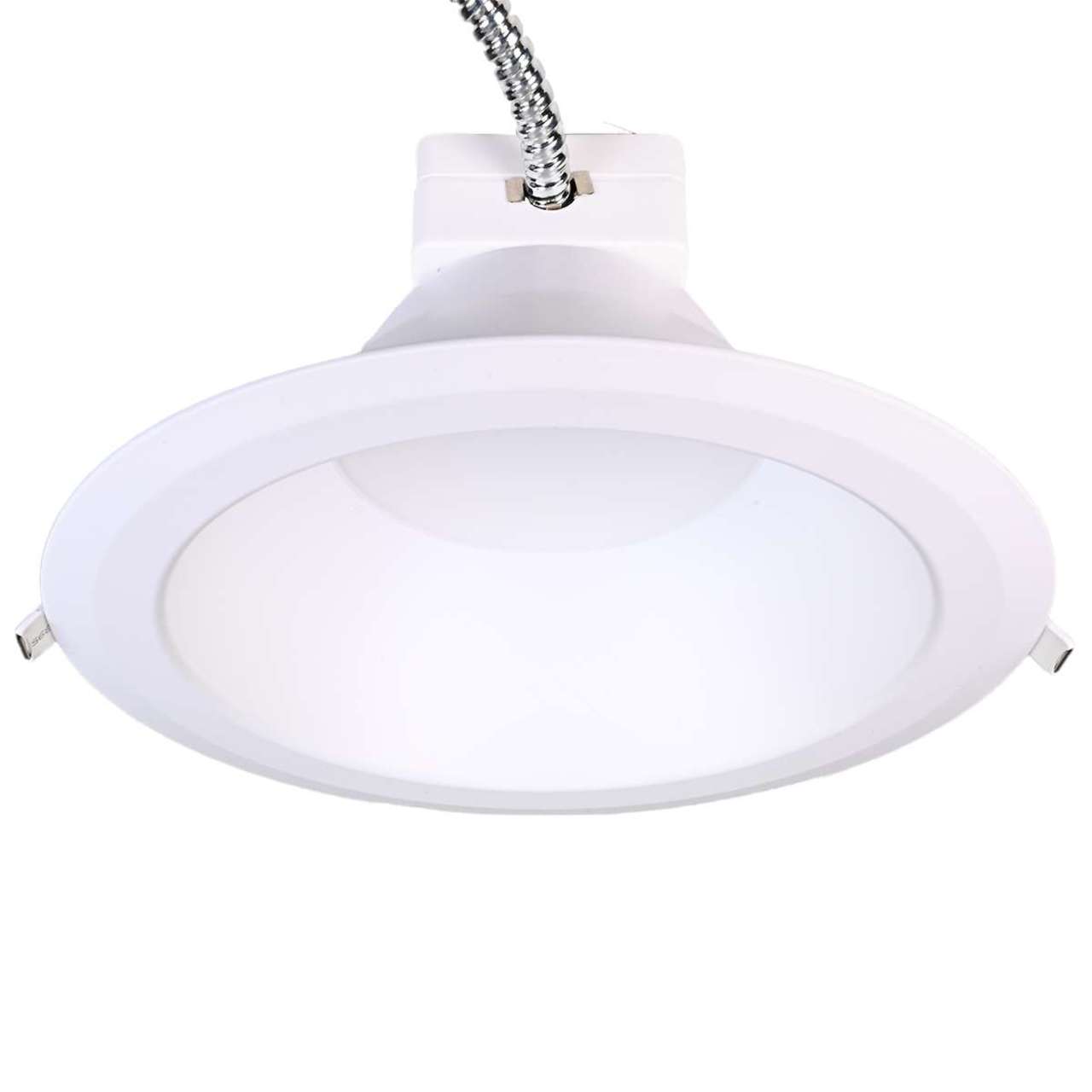

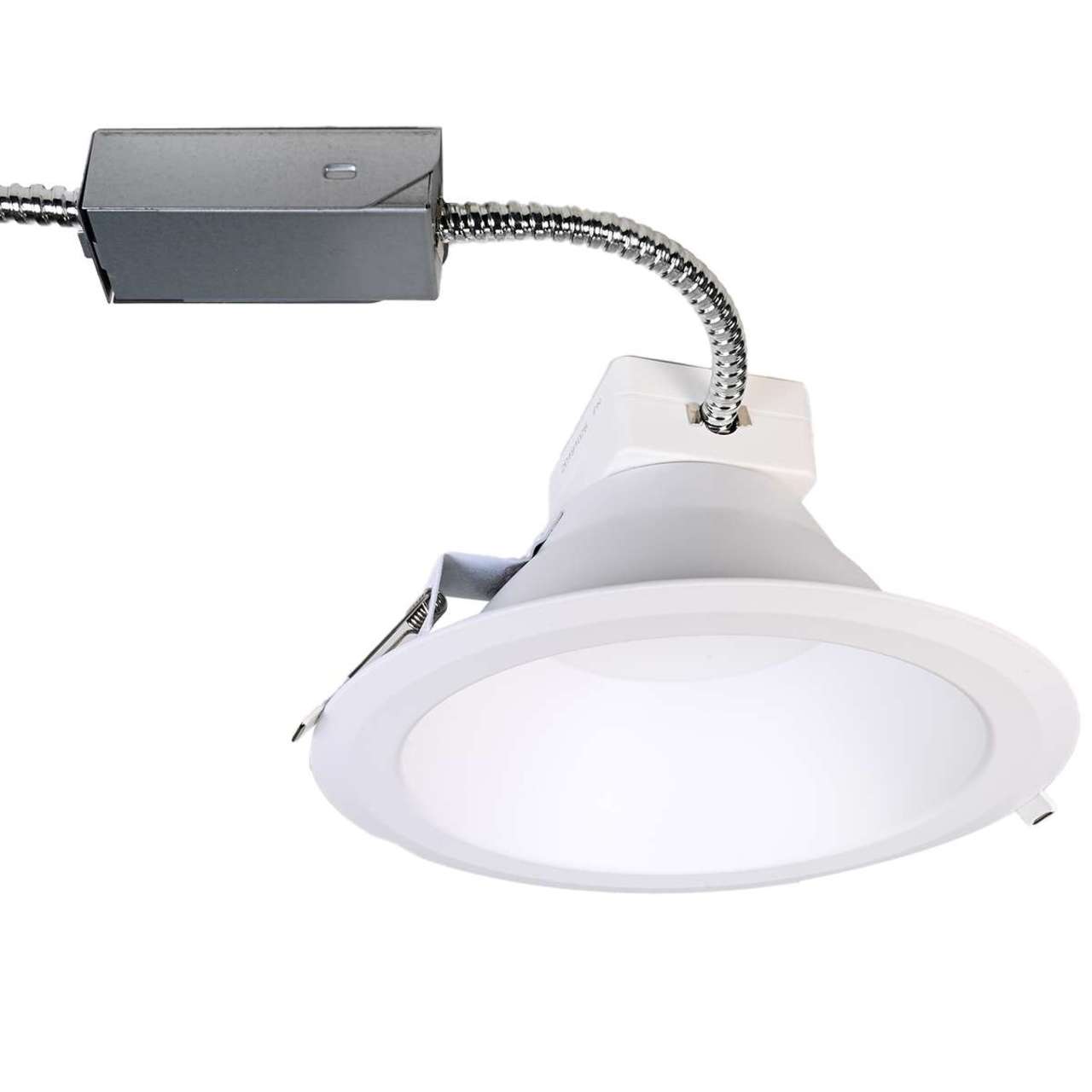

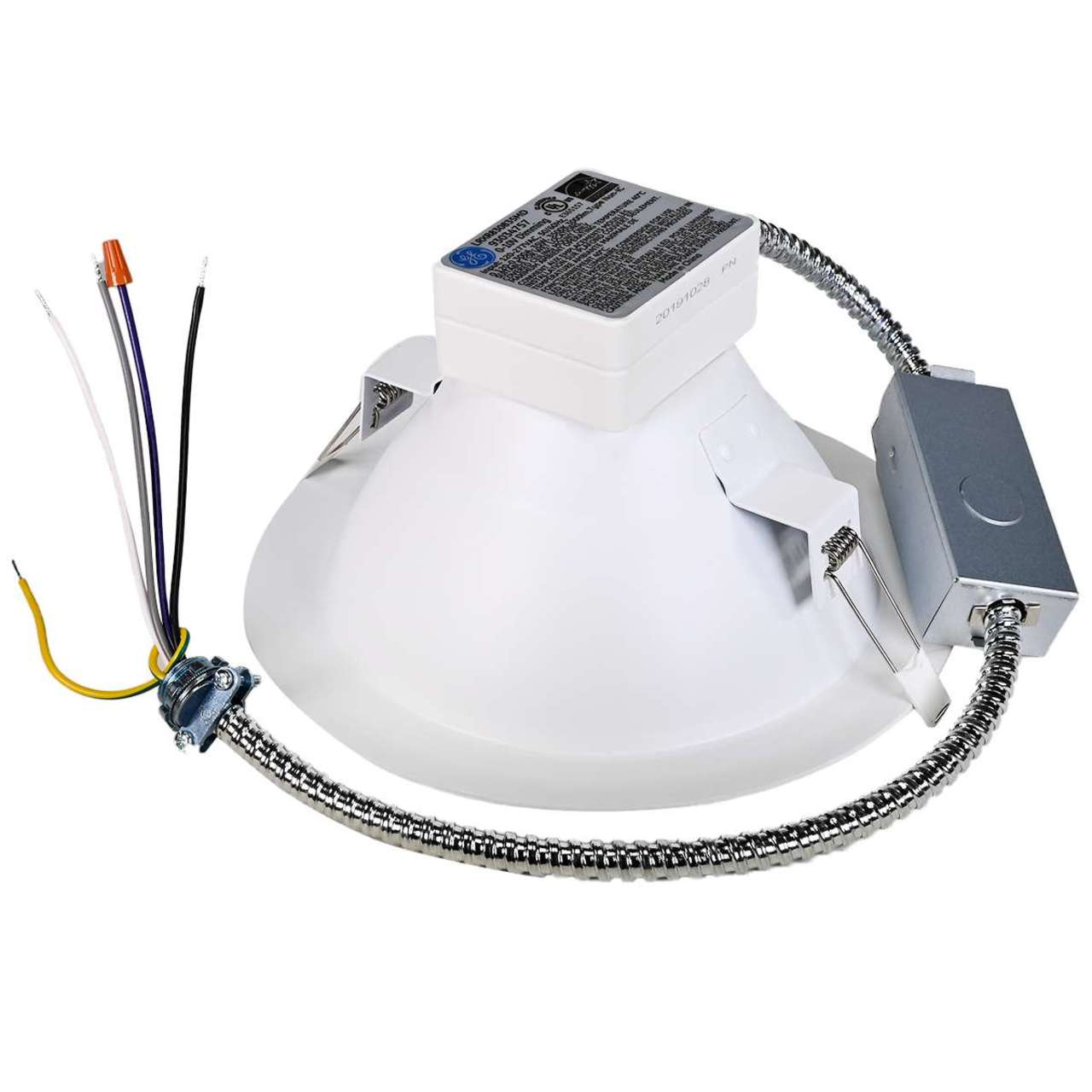

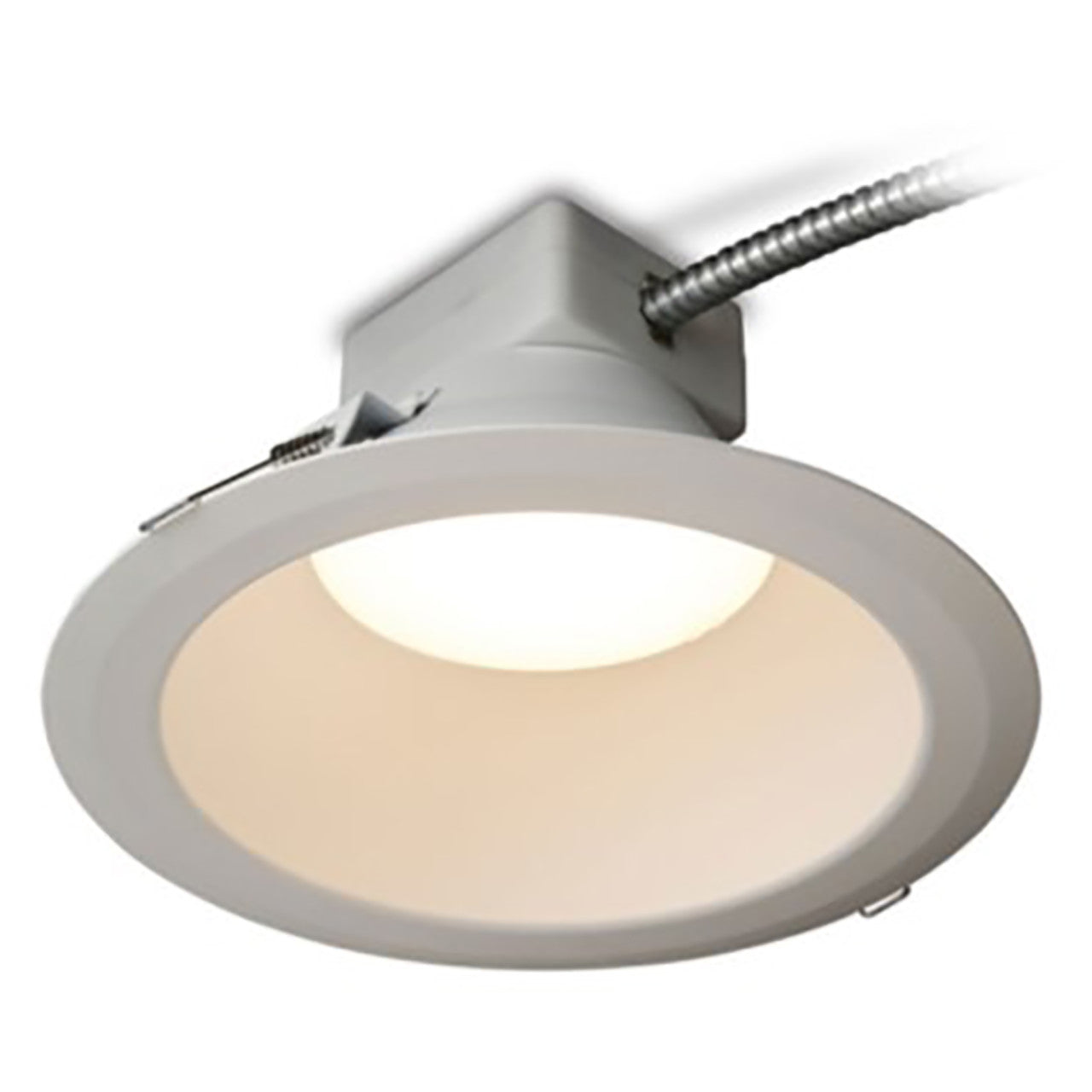

The Lumination LRX Series LED downlights are the ideal retrofit solution for traditional downlight fixtures. They install in just minutes into most 10-inch rough-in frames and bring a fresh look to the space. Unlike plug-in LED lamps, the LRX downlight gives you a new power supply and 50,000 hour life rating, so that you won't have to worry bout compatibility or maintenance issues with the original ballast. All downlights in the LRX family utilize a non-conductive polycarbonate trim perfect for wet rated applications. The LRX can also be used for new construction applications with a new fram kit (sold separately).
Construction:
- 16 gauge aluminum spinning reflector housing, powder coating
- Custom engineered heat sink flange for passive cooling
Installation:
- Fixture mounting to an existing metal frame, or install with a new frame kit (ordered separately), interior ceiling applications only.

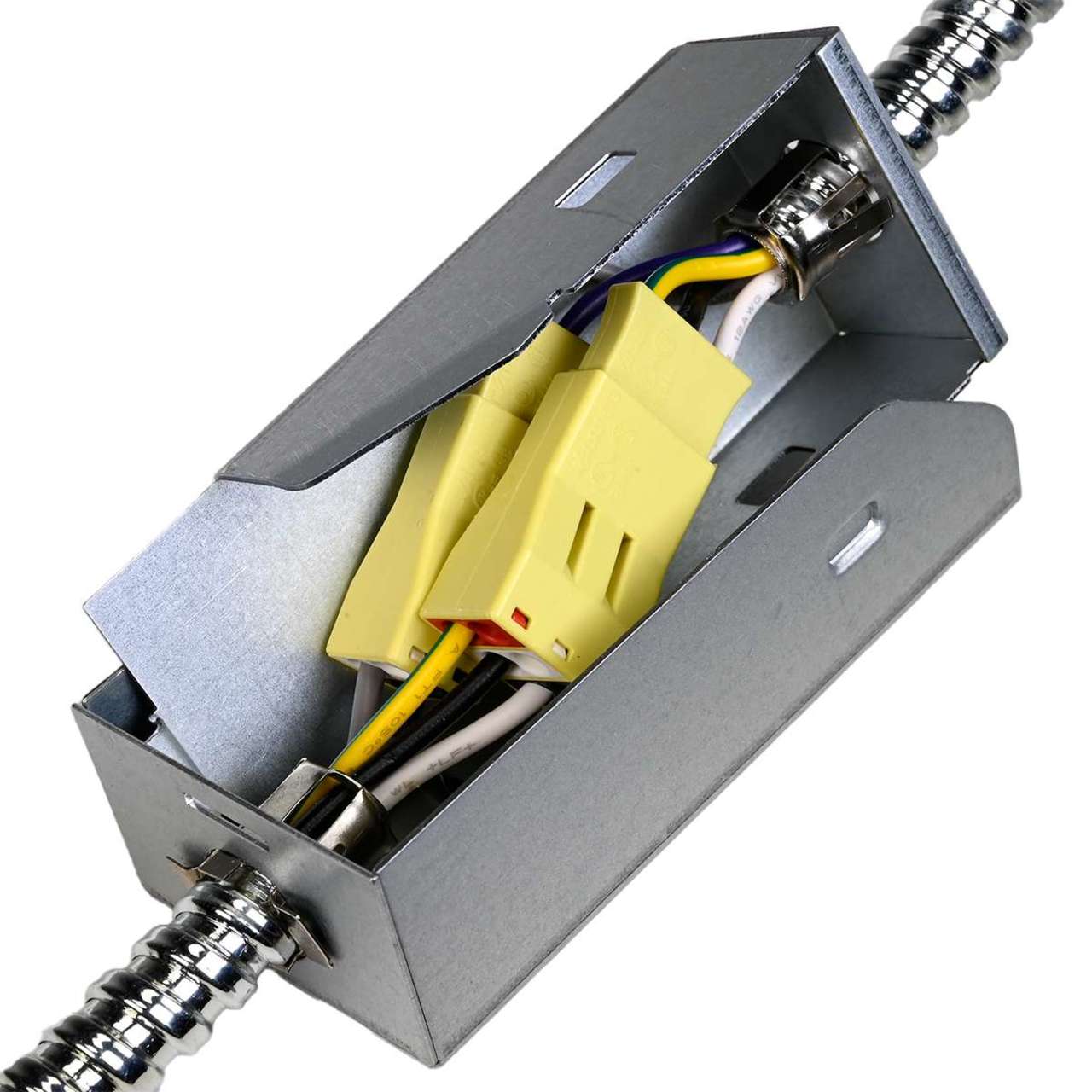

- Conduit connect to quick-disconnect for easy installation
Optical System:

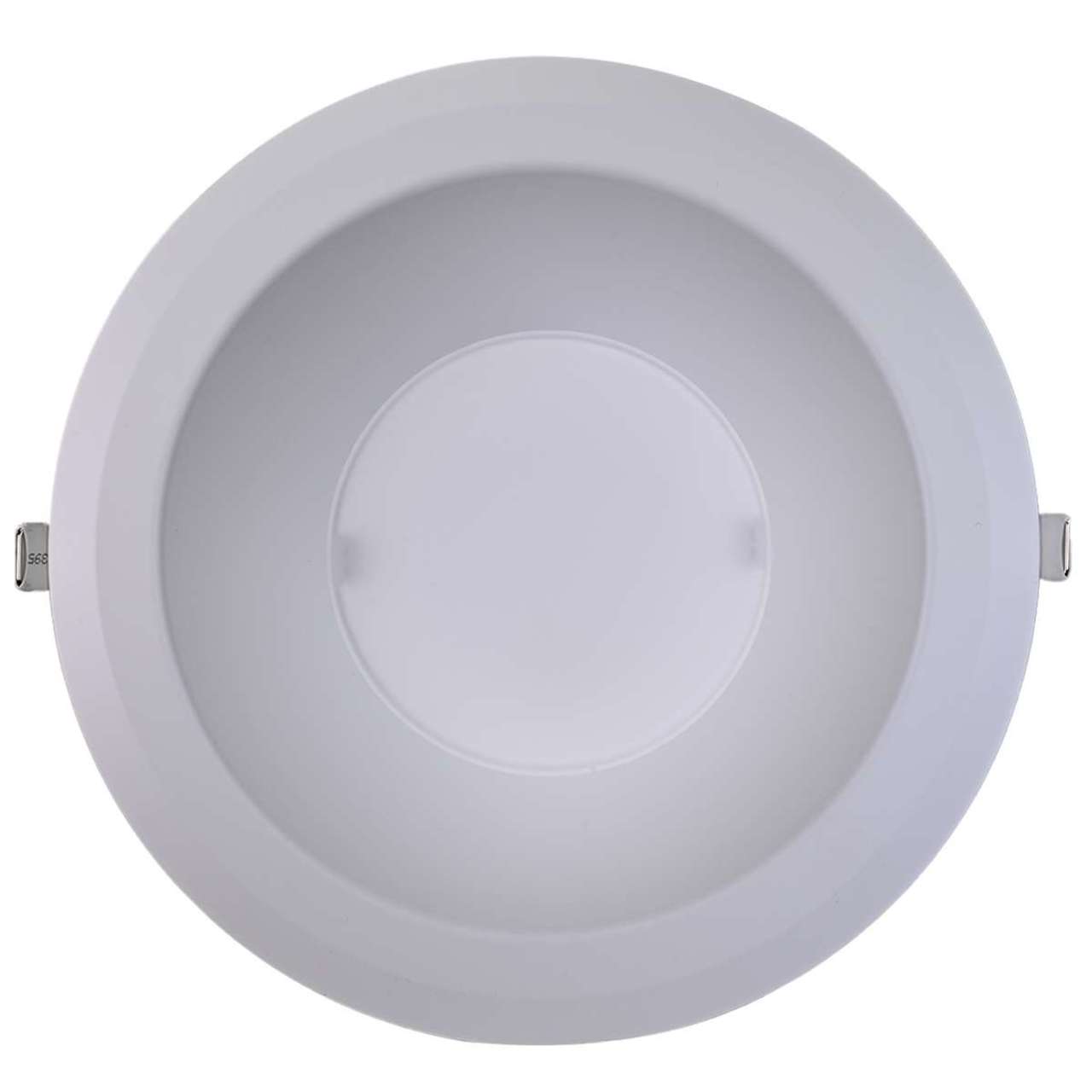

- Custom engineered reflectors for wide distributions
- Semi-diffuse diffuser for ideal combination of optical efficiency and uniformity
Electrical System:
- High efficiency, integrated driver with 01-V dimming

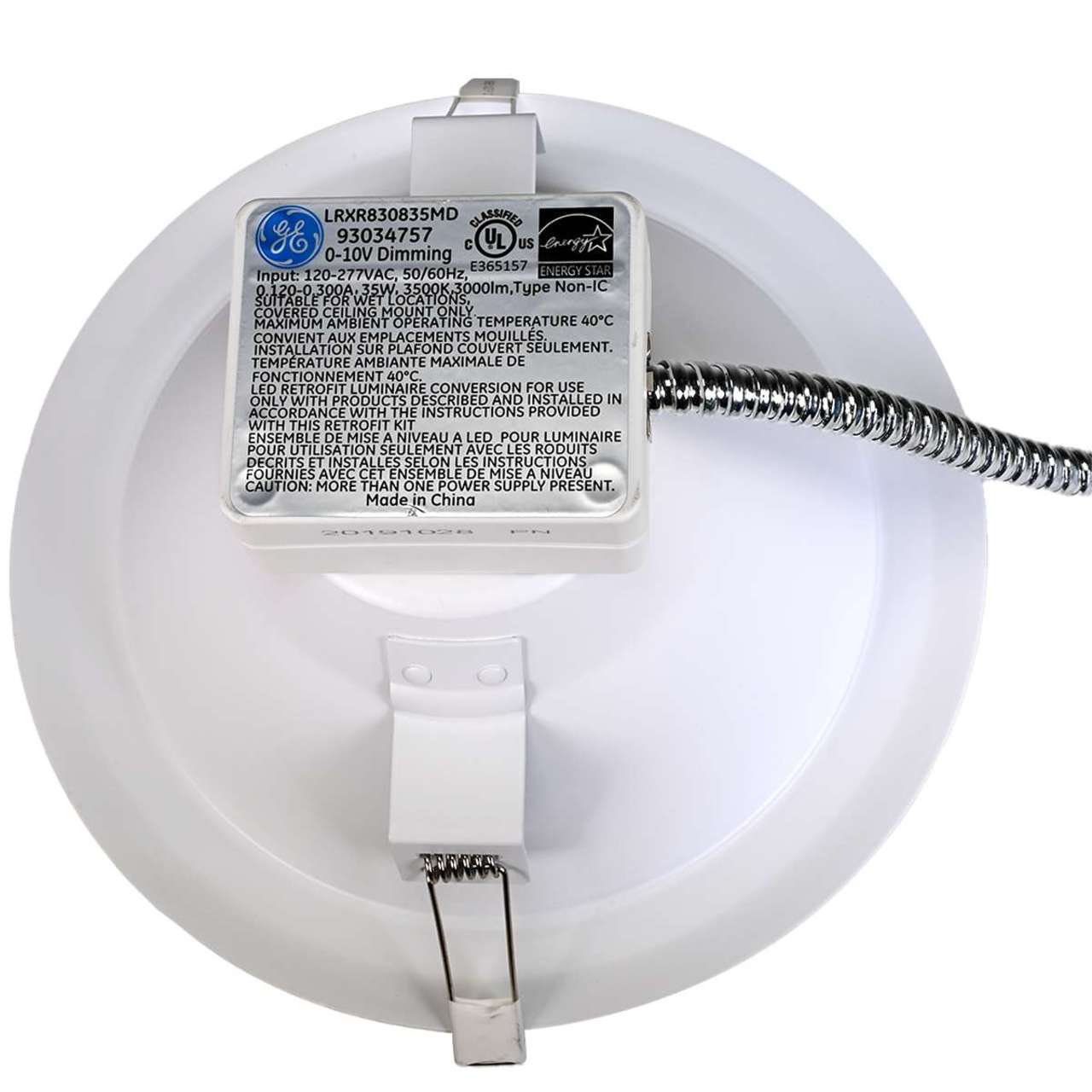

Specifications:
- Input Voltage: 120-277V
- Standard Dimming Controls: 0-10V down to 10%
- CCT: 3500K
- CRI: 82
- Lifetime Rating: L85 @ 50,000 Hours
- Input Frequency (Hz): 50/60Hz
- Power factor: >0.9

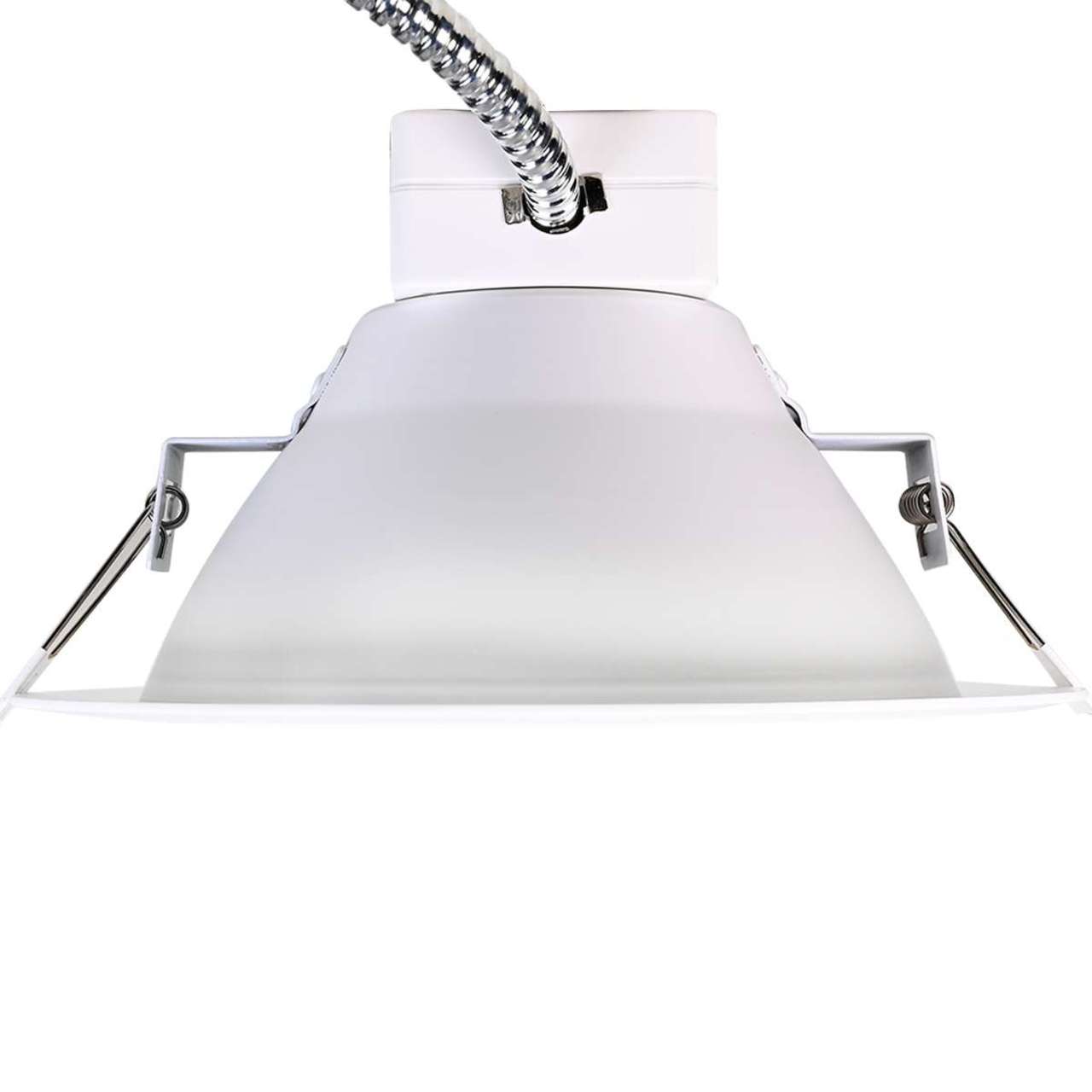

- Mounting Options: Spring clips clamp onto existing frame
- IC Rating: Non-IC Rating
- Limited Warranty: 5 years
- Operating temperature: -10C to 40C
- Listings: UL and cUL Listed
Dimensions:
- Ceiling Opening: 7.7" min
- Fixture Dimensions: 9.75" Dia x 5.1" D

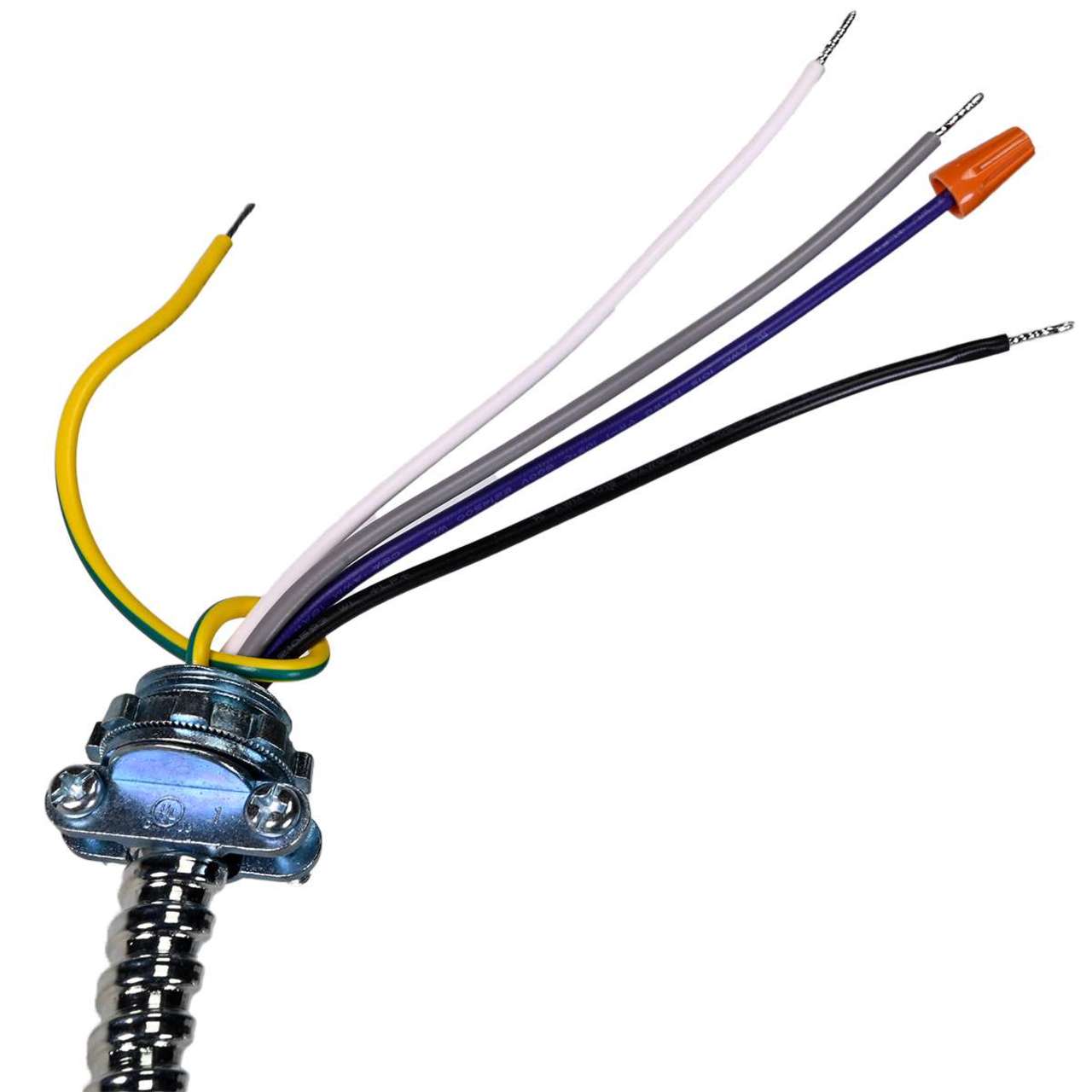

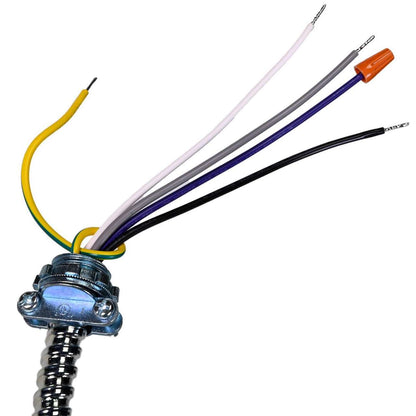

- Whip Length: 24"
Product Specifications
Brand: GE Lighting
Clearance: Clearance
Country of Origin: China
Beam Angle: 90 Degrees
CRI: 82
Life Hours: 50,000 Hours
Light Source: LED
Lumens per Watt: 94 lm/W
Voltage: AC120-277V
Warranty: 5 Year
Operating Temp - Low: -10C / 14F
Operating Temp - High: 40C / 104F
Lumens: 3000
Dimmable: Dimmable
Wattage: 35W
Nominal Recessed Downlight Size: 8 Inch
Light Fixture Type: Downlight (LED Recessed Retrofit)
Return Policy: Not Returnable
Ratings and Certifications:Energy Star
Ratings and Certifications:UL Listed
Ratings and Certifications:Wet Location
| Certificate | Description |
|---|---|
Energy Star |
Energy Star refers to products that meet energy efficient and performance standards established by the Environmental Protection Agency (EPA) and U.S. Department of Energy (DOE). These products promote energy conservation and environmental sustainability. |
UL Listed |
UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US. |
