Case of 4 - 1x4 LED Flat Panel Light - Wattage Adjustable 20W/25W/30W/35W/40W - 5 Color Tunable - LumeGen

This 1x4 Wattage Adjustable and Color Tunable LED Backlit Flat Panel is the perfect replacement for fluorescent troffers in new or remodel applications. Designed to fit in a conventional suspended grid ceilings for new construction or retrofit applications. They can be adjusted between 5 different wattages and 5 different color temperatures. LED flat panels will save you both energy and maintenance costs of replacing fluorescent tubes. They are perfect for areas where you need bright, even light such as schools, universities, offices, hospitals, hotels, or any other indoor areas with a drop ceiling.

This 1x4 LED Backlit Flat Panel is easy to install, just wire the fixture and lift into place in the drop t-grid ceiling. The LED panel weights less and has a more compact design compared to fluorescent troffers which will save you time installing the fixture. The integrated LEDs mean you no longer have to change bulbs as the LEDs will last the life of the fixture. LEDs last 2-3 times longer than old fluorescent tubes and contain no harmful chemicals! Plus LED flat panels do not have a hinged door meaning no more dead bugs or debris in the lens!

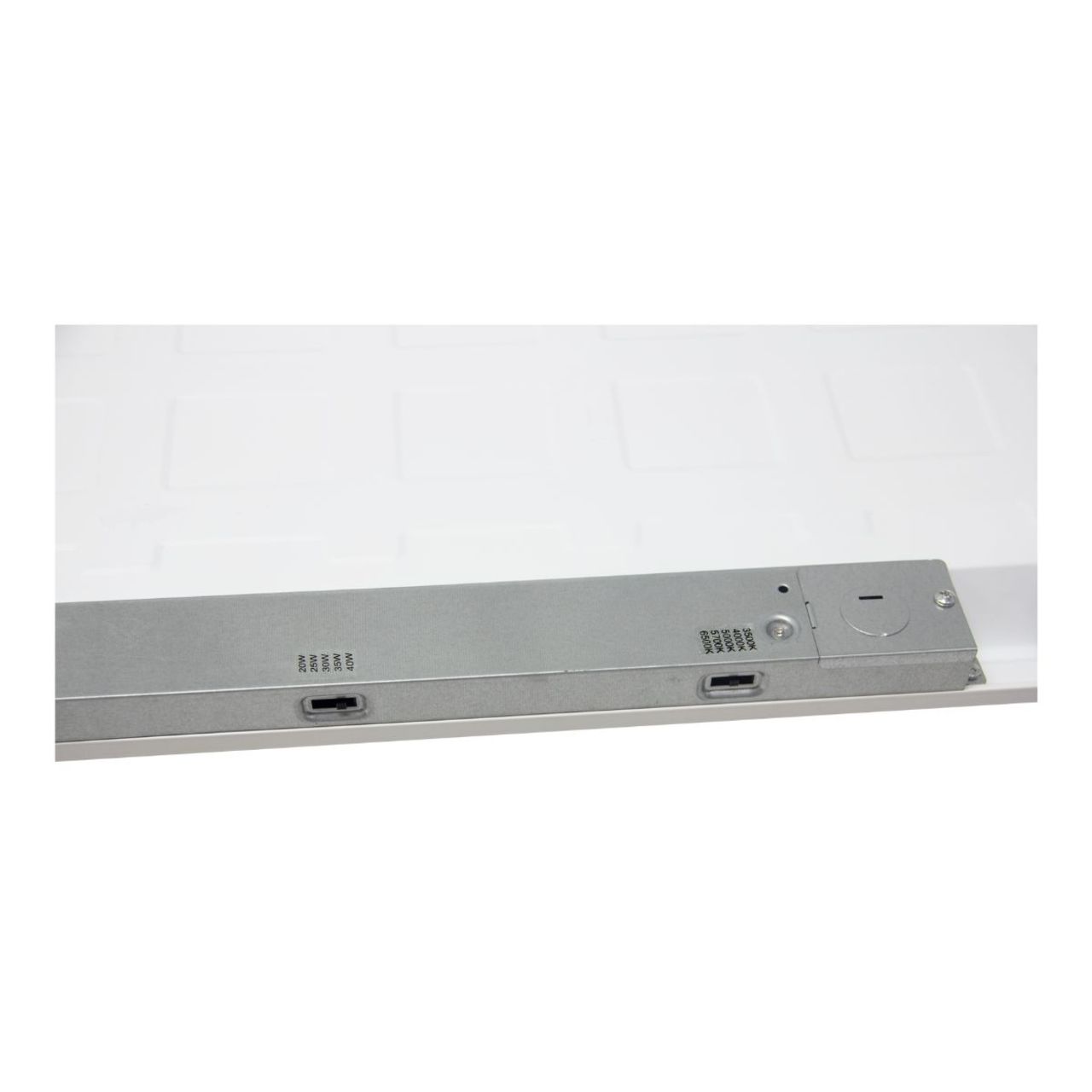

This LED panel light is wattage selectable meaning you can select between 20W, 25W, 30W, 35W, and 40W. At 125 lumens per watt, each wattage provides approximately the following amount of light:

• 20W = 2500 Lumens
• 25W = 3125 Lumens
• 30W = 3750 Lumens
• 35W = 4375 Lumens
• 40W = 5000 Lumens

In addition to being wattage selectable, this LED panel light is also color tunable allowing you to select between 3500K, 4000K, 5000K, 5700K, and 6500K. With all of the different configurations available in this one light, it is extremely versatile to many different applications or customer preferences.

Product Dimensions - 47.72" W x 11.85" L x 1.17" D

Accessories

This LED panel requires a 0-10V dimmer in order to dim the fixture.

0-10V LED Dimmer (sold separately):

LEDDMMR1000050000 - 0-10V LED Dimmer - 120-277V - 60Hz - 600W Max - Single Pole/3-Way - Paddle Switch Slide Dimmer - LumeGen

There are surface (flush) mount kits available (sold separately) which will allow you to install this fixture flush to the ceiling rather than recessed in a drop t-grid ceiling. Visit our surface kits category to shop for LED flat panel surface mount kits.

Optional Accessories (sold separately):

LEDMKFP1000051818 - Surface Mount Kit for Drywall Flange Kit

LEDMKFP1000058818 - Surface Mount Kit

LEDMKFP1000051820 - 60in. Safety Rope

LEDLHED1000050314 - 4-Pack Earthquake Clips

Utility Rebates

This LED flat panel is also DLC Premium V5.1 listed meaning it is highly energy efficient and may qualify for utility rebates in certain areas. Learn more about LED Rebates.

Emergency Drivers

Constant-power emergency drivers with 90-minute run time are available to add on to your LED panels to increase fire safety and comply with local fire safety codes. Check out our selection of LED emergency drivers.
