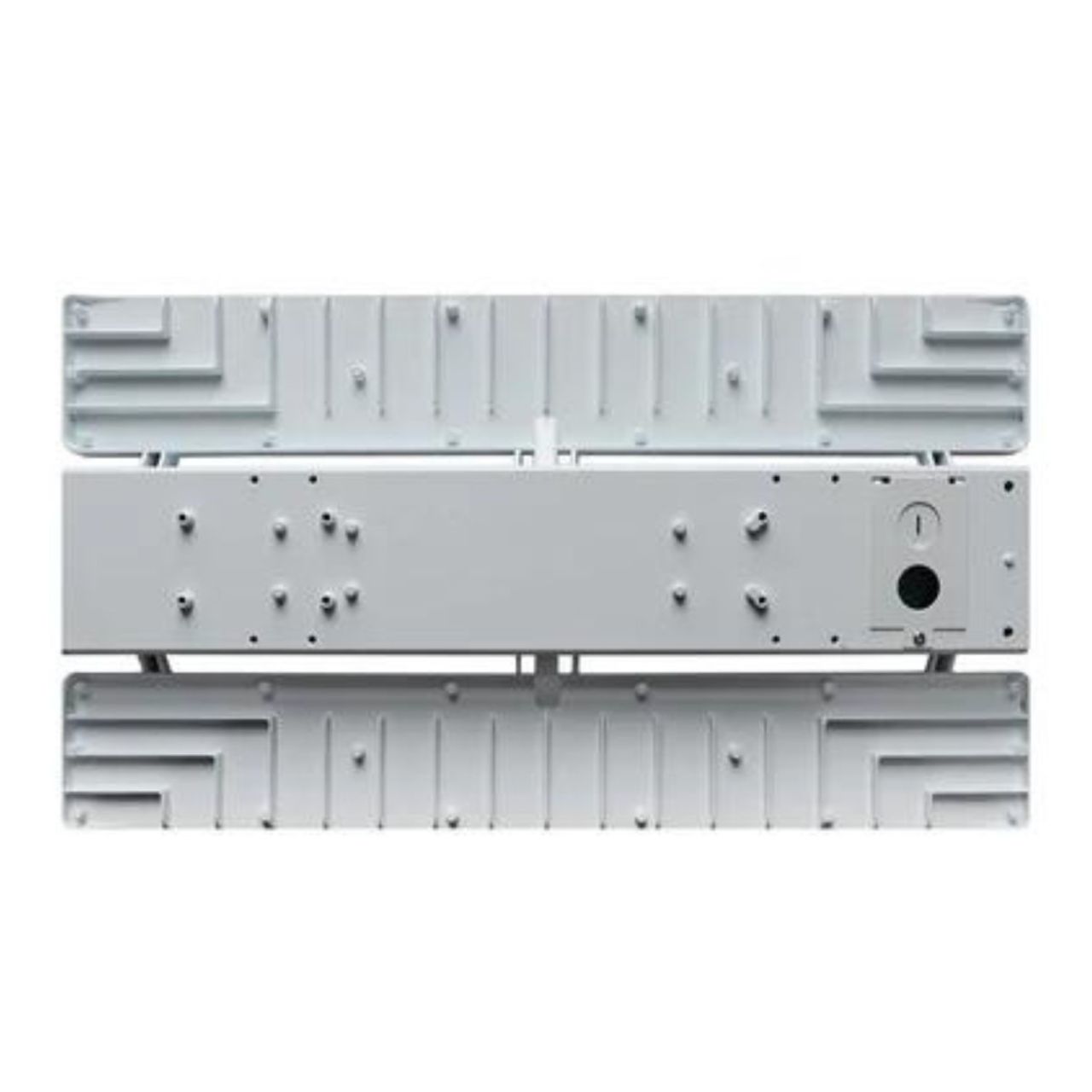

LOYA 2nd Gen LED Linear High Bay - 480V - Wattage Adjustable 240W/270W/310W - Color Tunable 40K/50K - Beyond LED

LEDLHBY1000055669-HV
156748
$324.99
Availability:
In Stock: Ships in 5 to 7 business days
Certified/Rated for Dlc Premium Certified/Rated for Ul Listed

LOYA 2nd Gen LED Linear High Bay - 480V - Wattage Adjustable 240W/270W/310W - Color Tunable 40K/50K - Beyond LED

LEDLHBY1000055669-HV
156748
Certified/Rated for Dlc Premium Certified/Rated for Ul Listed

Description

LOYA 2nd Gen Linear High Bay - High Voltage - Wattage Adjustable and Color Tunable

The LOYA 2nd Gen Linear High Bay is designed to deliver outstanding performance in a sleek, compact form. Engineered with die-cast housing and polycarbonate lens, this linear high bay is not only easy to install (standard chain mount included) but has a high efficiency of 150 lm/W making it an ideal choice for warehouses, storage facilities, industrial facilities, sports facilities, and gyms.

Key Specifications:

  • 240W/270W/310W Wattage Adjustable
  • 4000K/5000K CCT Adjustable
  • Up to 150 Lumens per Watt
  • Built-In 10kV Surge Protection
  • 0-10V Dimmable
  • 277-480V Input Voltage
  • UL & DLC Certifications

Product Dimensions - 20.5" L x 11.5" W x 2.1" D

Optional Accessories (Sold Separately)

  • Optional Motion Sensor: Pre-installed sensor base allows for the addition of an optional screw-in motion sensor SKU LEDLHLS1000055669.
  • Remote Control for Motion Sensor: Remote Control SKU LEDRMTC1000055669 is compatible with motion sensor SKU LEDLHLS1000055669.
  • Emergency Battery Backup: Emergency LED Driver SKU LEDLEHD1000055669 is an optional feature that has a 90 Minute Backup Time to help provide peace of mind during power outages.

Shop more commercial lighting from Beyond LED Technology.

Specifications

Brand:
Beyond LED Technology
Case Qty:
1
Clearance:
Non-Clearance
Country Of Origin:
China
Beam Angle:
110 Degrees
Color Temp / CCT:
Color Tunable 4000K-5000K
CRI:
80
Life Hours:
50,000 Hours
Light Source:
LED
Lumens per Watt:
150 lm/W
Operating Temp - Low:
-40C / -40F
Operating Temp - High:
50C / 122F
Voltage:
AC277-480V
Warranty:
5 Year
Wattage:
240W/270W/310W
Color:
Color Tunable 4000K-5000K
Ratings and Certifications:
DLC Premium
Ratings and Certifications:
UL Listed
Recommended Uses:
Recommended Uses:
_MPN:
156748
LED Chip Type:
E-Lite SMD 2835
Lens Material:
Polycarbonate
HR-mail-only:
true
__badge:
New
_PDF:
ies-ledlhby1000055669|ies|IES File
_PDF:
loya-lhb-ledlhby1000055669-spec-im|pdf|Specification Sheet and Instruction Manual
Lumens Range:
40,000 Lumens or more
Ratings and Certifications:
IP40
Dimmable:
Dimmable
_wattage_range:
200W-249W
_wattage_range:
250W-299W
_wattage_range:
300W-349W
