LED Wattage Adjustable & Color Tunable Canopy Light- 120W/96W/72W - 3000K/4000K/5000K - LumeGen

LED Wattage Adjustable & Color Tunable Canopy Light- 120W/96W/72W - 3000K/4000K/5000K - LumeGen

LEDCNPY1000051293
LG-CP-72/96/120W-3CCT
UPC:
190140036950
$98.99
Availability:
In Stock

LED Wattage Adjustable & Color Tunable Canopy Light- 120W/96W/72W - 3000K/4000K/5000K - LumeGen

LEDCNPY1000051293
LG-CP-72/96/120W-3CCT
190140036950
Certified/Rated for Ul Listed Certified/Rated for Dlc Premium

Description

The Wattage Tunable and Color Selectable LED Canopy Light is an outdoor lighting solution often used for gas stations, underpasses, loading docks, or any other outdoor ceilings or canopies. This LED canopy light replaces traditional metal halide fixtures up to 400W while saving up to 70% in energy savings and save on the maintenance of replacing light bulbs over the life of this LED fixture. The LED canopy light can be installed flush to ceiling or by pendant mount (sold separately).

This fixture is wattage adjustable allowing the user to select between 72W, 96W, and 120W for different brightness to accommodate various mounting heights. At 130 lumens per watt, this fixture produces the following lumens:

  • 72W = 9360 Lumens
  • 96W = 13,000 Lumens
  • 120W = 15,600 Lumens

This fixture is also color tunable allowing the user to select between 3000K, 4000K, or 5000K depending on user preference.

The die-cast aluminum alloy housing with white finish is IP65 rated meaning it is protected again water and dust ingress making it the perfect option for outdoor areas where a lot of light is needed. It has a clear, UV-resistant polycarbonate lens with great light spread. It includes a junction box on the back for easy surface or pendant mount installation.

It includes a dimmable 100-277V LED driver with 4kV surge protection. Requires 0-10V dimmer for dimming applications.  This fixture uses LUMILEDS 2835 LED chips rated for 50,000 hours.. Includes built-in photocell to automatically turn the light on when it's dark and off during the day.

This product is DLC Premium V5.1 Listed meaning it may be eligible for utility rebates. Find out more about rebates on our LED Rebates page.

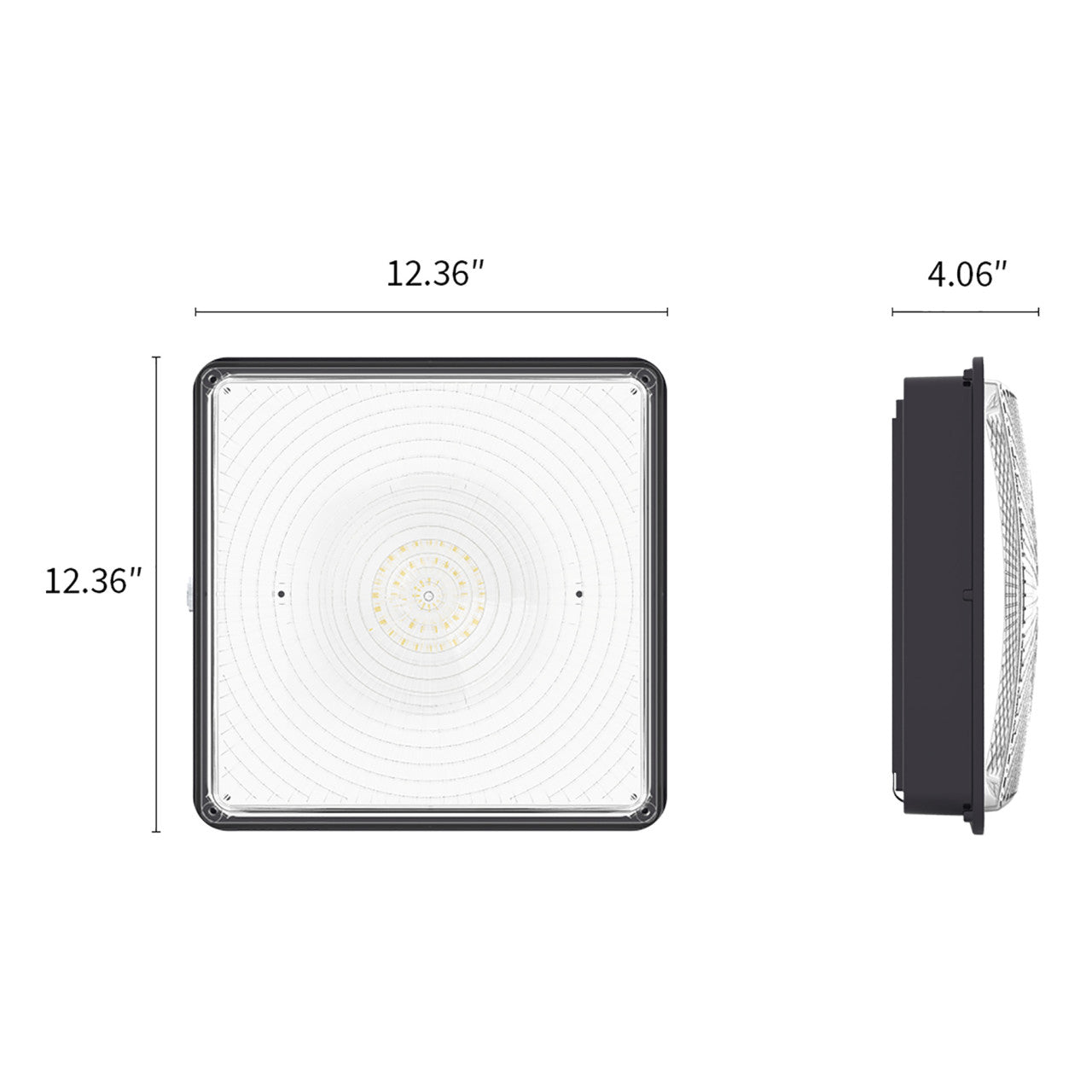

Product Dimensions - 12.36" L x 12.36" W x 4.06" H

Check Out these Photocell Options

Specifications

Brand:
LumeGen
Case Qty:
1
Clearance:
Non-Clearance
Country Of Origin:
China
Color Temp / CCT:
Color Tunable 3000K/4000K/5000K
CRI:
70
Life Hours:
50,000 Hours
Light Source:
LED
Lumens per Watt:
130 lm/W
Lumens Range:
5,000 - 10,000 Lumens
Operating Temp - Low:
-40C / -40F
Voltage:
AC120-277V
Warranty:
5 Year
Color:
Color Tunable 3000K/4000K/5000K
Recommended Uses:
_MPN:
LG-CP-72/96/120W-3CCT
Operating Temp - High:
50C / 122F
Recommended Uses:
_PDF:
ledcnpy1000051293-120w-3k-ies|ies|IES File - 120W 3K
_PDF:
ledcnpy1000051293-120w-4k-ies|ies|IES File - 120W 4K
_PDF:
ledcnpy1000051293-120w-5k-ies|ies|IES File - 120W 5K
_PDF:
ledcnpy1000051293-ledcnpy1000051294-im|pdf|Instruction Manual
_PDF:
lg-canopylights-spec-sheet-ledcnpy1000051293-ledcnpy1000051294-final-alt|pdf|Specification Sheet
Lumens:
9360/13,000/15,600
Wattage:
72W/96W/12W Adjustable
Ratings and Certifications:
DLC Premium
Ratings and Certifications:
FCC Compliant
Ratings and Certifications:
RoHS Compliant
Ratings and Certifications:
Wet Location
Ratings and Certifications:
UL Listed
_PDF:
lumegen-ledcnpy1000051293-dlc-qpl|pdf|LumeGen PLDV4PXR7A02 DLC QPL
Lowest Bulk Price:
98.99
Dimmable:
Dimmable
_wattage_range:
70W-79W
_wattage_range:
90W-99W
_wattage_range:
100W-149W
