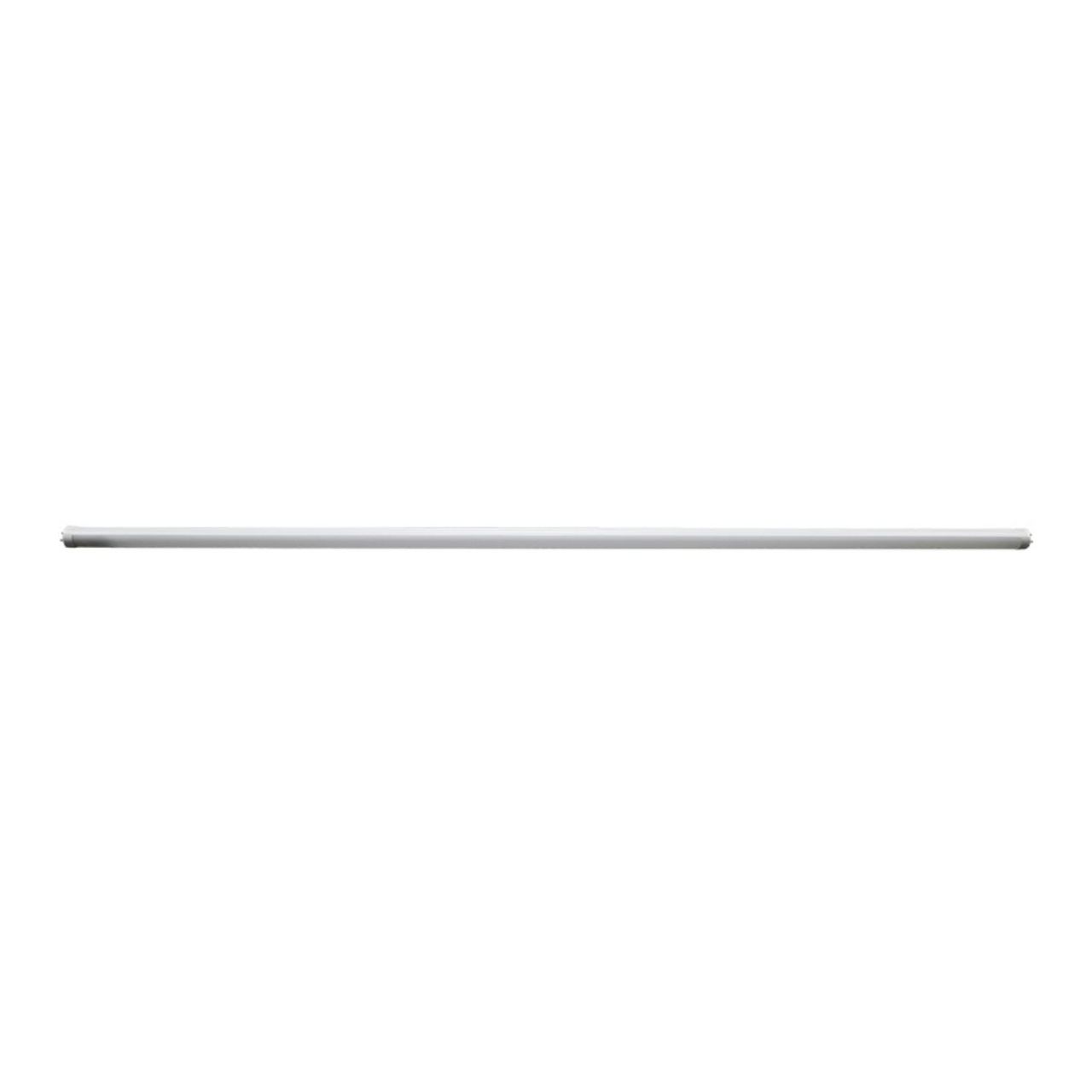

Euri Lighting's 4ft. Bypass Ballast LED T8 lamps are perfect for offices, conference rooms, hotels, academic buildings, medical facilities, and commercial stores. With these lamps being available in 4000K Bright White and 5000K Cool White, these lamps offer bright illumination for many different settings. These tubes are Type B tubes (ballast bypass) that have a built-in driver eliminating the need for ballast operation and reducing maintenance costs. Installation should be done by a licensed electrician.

Specifications:

• Case of 25
• Type B (Ballast Bypass)
• 4ft. Length
• 15W
• 32W Fluorescent Tube Equivalent
• 2200 Lumens
• 80 CRI
• 1-10V Dimmable
• G13 Base
• Single & Double Ended Power
• Available in 4000K and 5000K Color Temperatures
• 180° Beam Angle
• AC120-277V Input Voltage
• Damp Rated, UL, DLC

Product Dimension (of one LED Linear Tube) - 47.75" L x 1.04" W

Can you put led tube lights in a fluorescent fixture? Can I replace my fluorescent T8 linear bulbs with LEDs?

Yes! LED Tubes can be installed into a fluorescent fixture. When tubes are Type A + B. Type A or Type B, it is easy to replace those flickering fluorescents. A brief explanation of Type A and B LED linear tubes is below.

Type A LED Linear Tubes are often called "plug and play" tubes. This is because they can simply be installed into the existing fixture.

Type B LED Linear Tubes are often referred to as "ballast bypass." They work with all fluorescent fixtures including ballast-free fixtures. Type B linear tubes power goes directly to the lamp sockets and no longer through the ballast.

Type A + B can be used with or without a ballast. It is ultimately the buyer's preference what they want to do. Type A installation uses the LED Tube + Ballast power for more energy consumption compared to Type B installation only uses the raw tube power and is more energy-efficient.

What does ballast bypass mean? How does ballast bypass work?

Ballast bypass means when installing the LED linear tube, the fixture's ballast will need to be removed first. The power will then go directly to the lamp sockets and no longer through the ballast. The benefits of ballast bypass LED replacement tubes include lights not being shut down by a ballast failure, no more ballast replacements, and savings on the energy bill because energy is no longer drawing from the ballast.

This LED tube is DLC Listed and may be eligible for additional utility rebates in certain areas. Check out our Rebate Assistant tool to find if this product qualifies for you!
