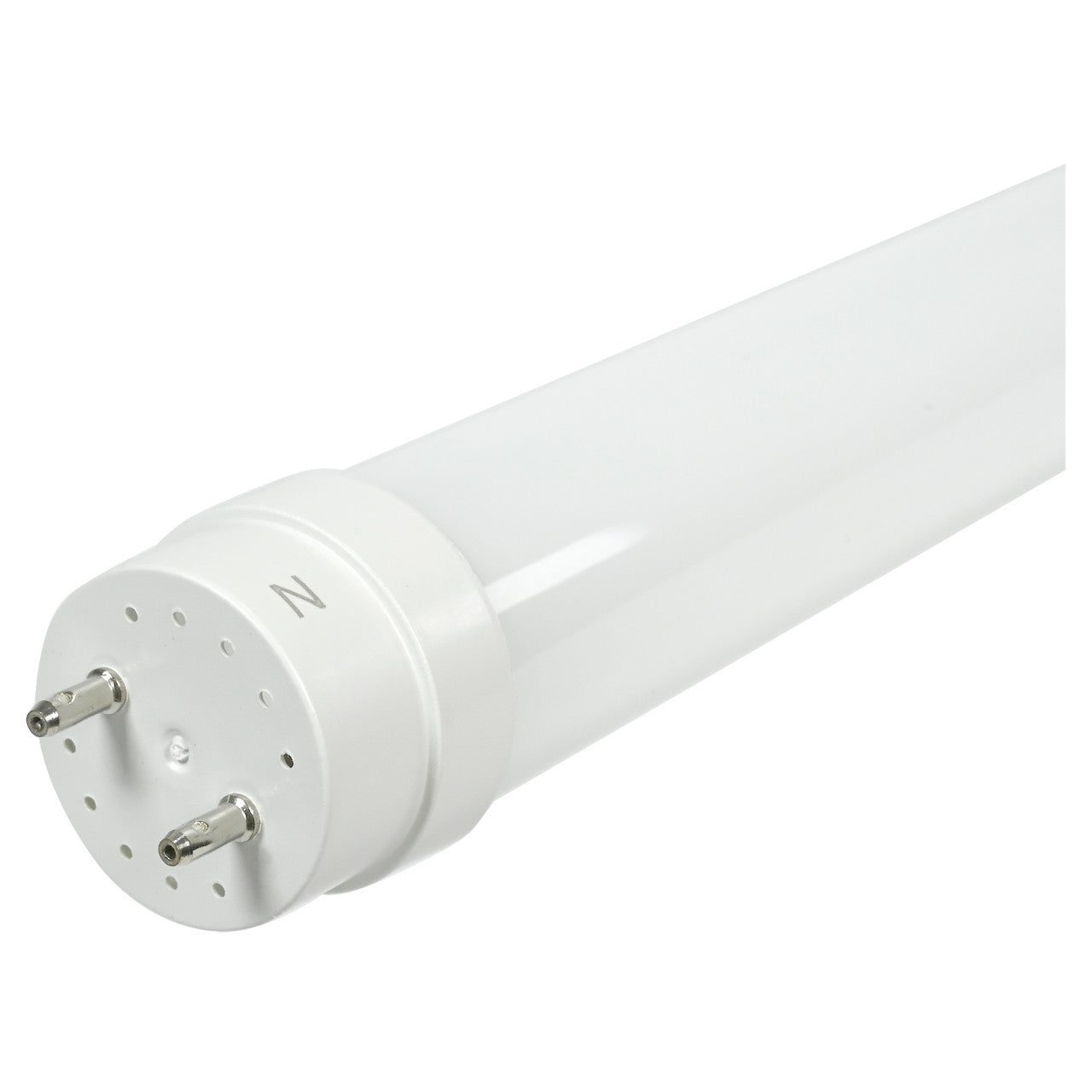

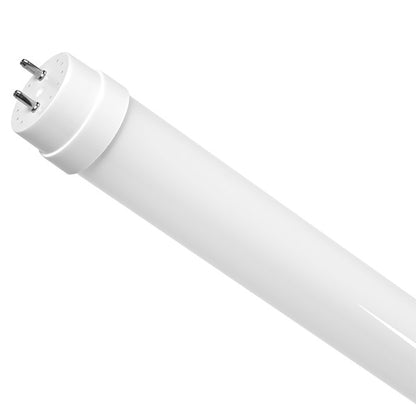

Case of 25 - 4ft LED T8 Tube - Type A+B - 15W - 2200 Lumens - LumeGen

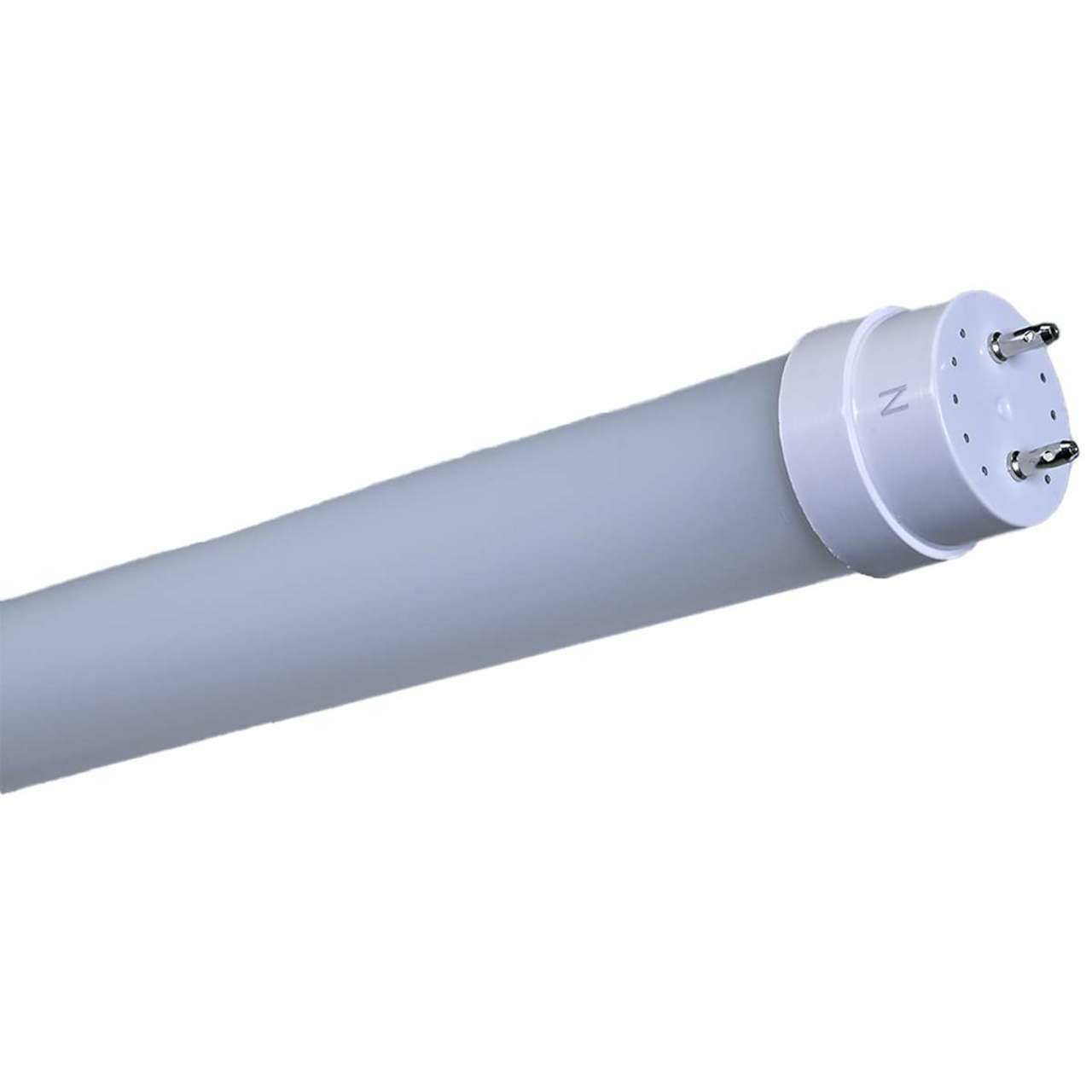

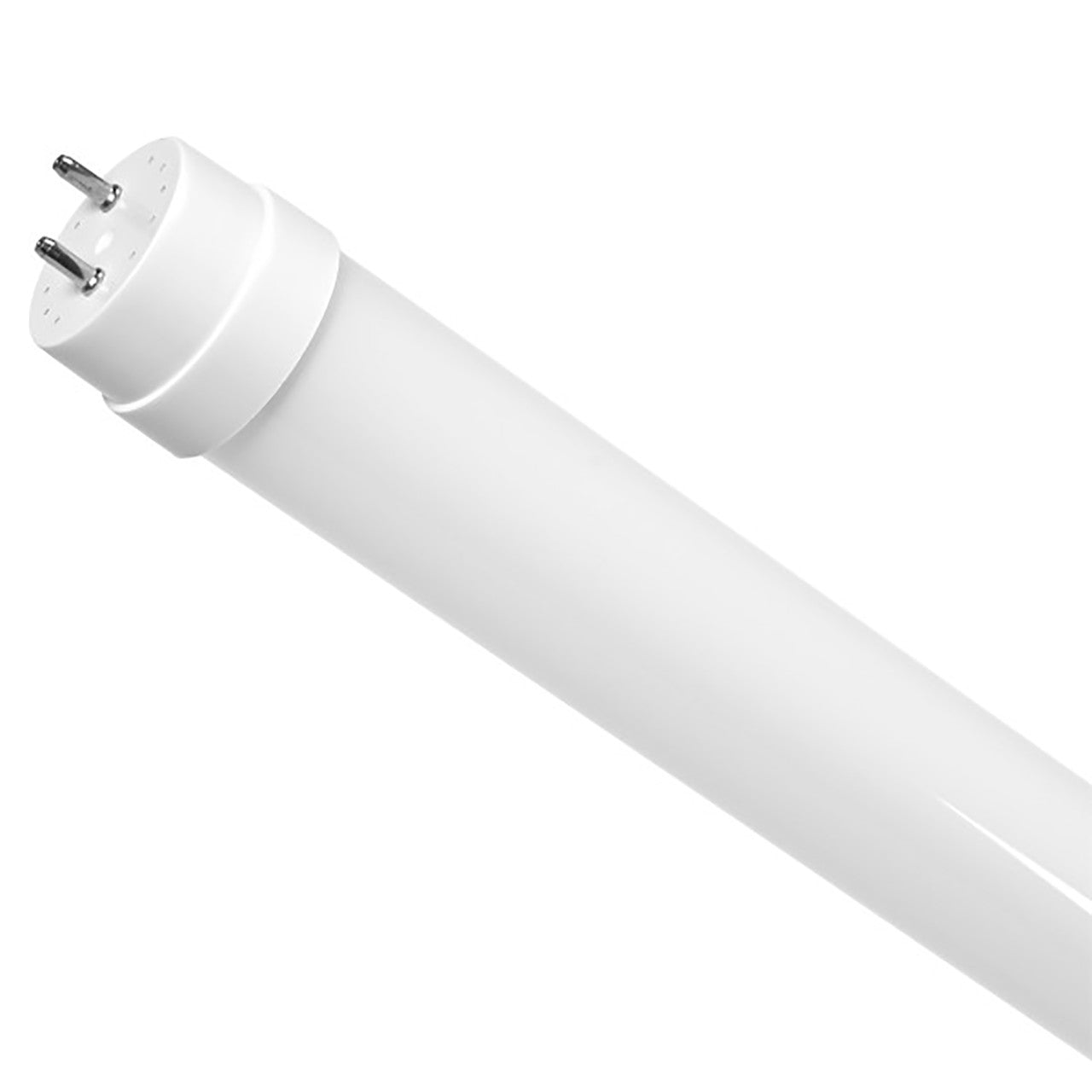

This 4ft LED T8 Universal Tube is a perfect pick for any commercial or residential setting including supermarkets, factories, hotels, conference rooms, schools, and offices. Type A+B (Universal) LED Tubes are the easiest to use and can replace fluorescent lamps with no extra parts required for the retrofit. LED Tubes are more energy efficient and longer lasting than fluorescent tubes and contain no hazardous materials! Made with frosted glass.
Type A+B tubes have the ability to operate off of the compatible fluorescent ballast and can also operate off line voltage as long as the fluorescent ballast is bypassed. Installation is plug & play with Type A as long as the fluorescent ballast is compatible otherwise, simply rewire the fixture to bypass the ballast for a Type B installation. Wattage when used as Type A installation is 17W (tube + ballast) while wattage when used as Type B installation is 15W (tube only).

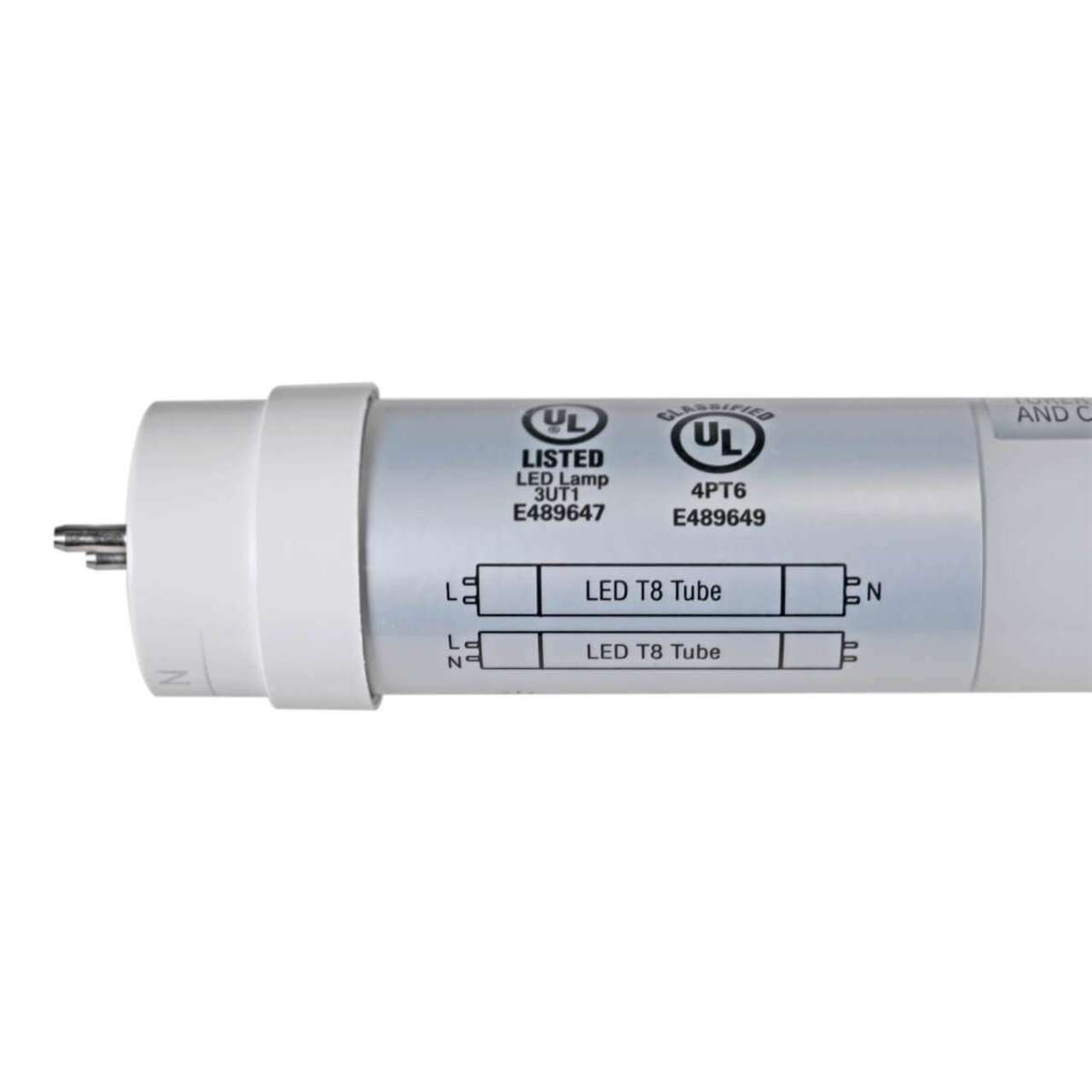

This LED Tube is configured for Double-Ended or Single-Ended Power when used as Type B and can utilize shunted or non-shunted sockets so you won't have to worry about changing lamp holders.

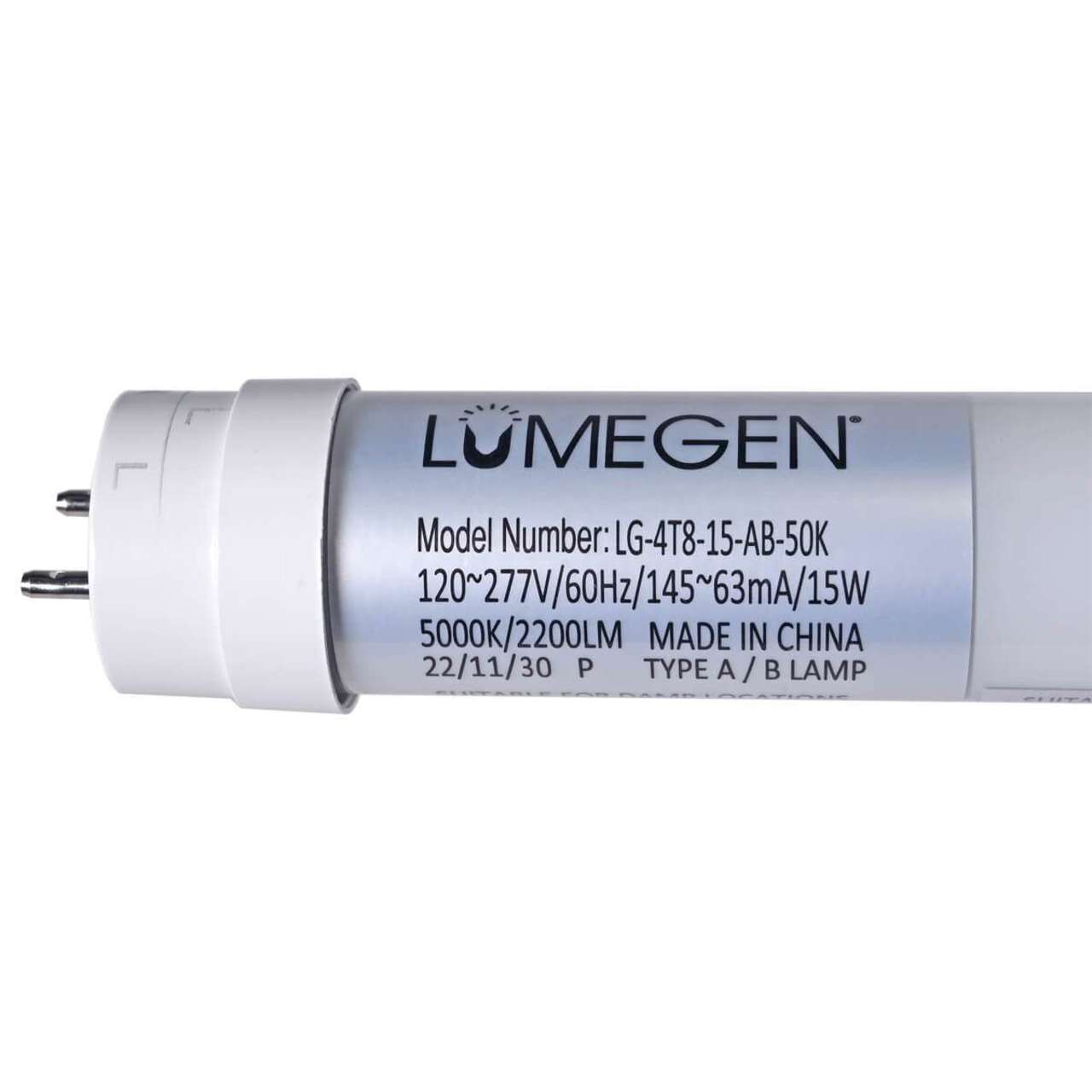

Specifications

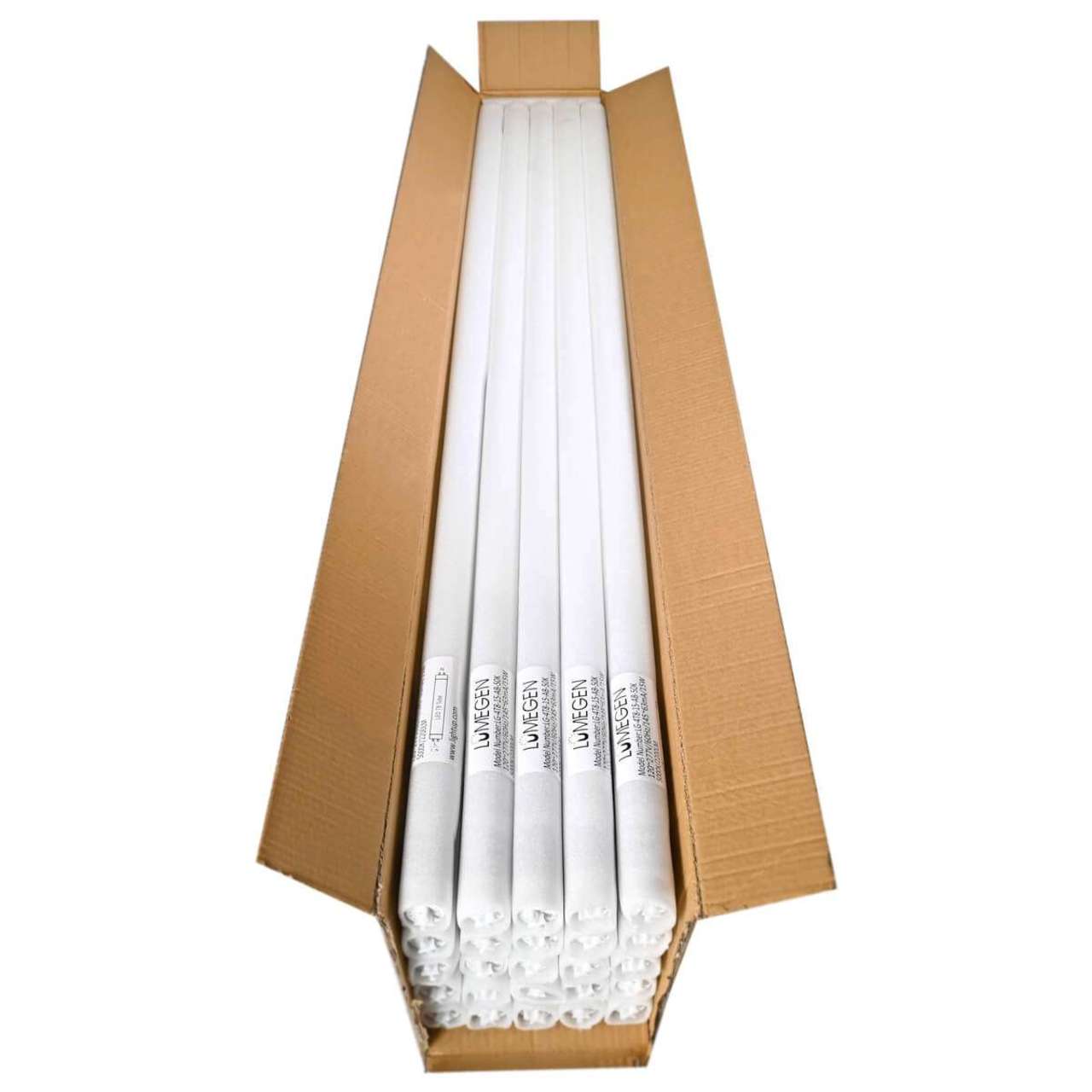

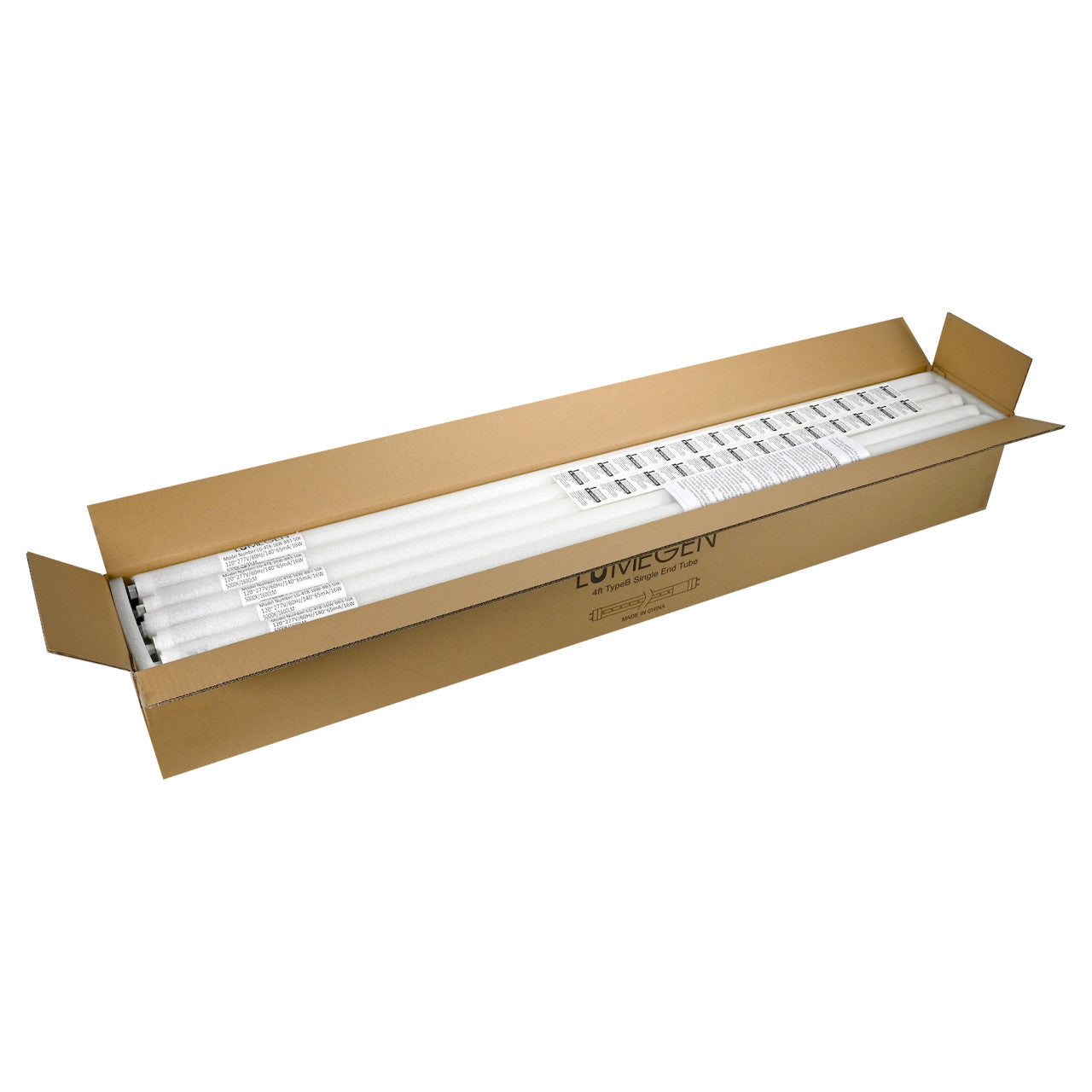

- Case of 25

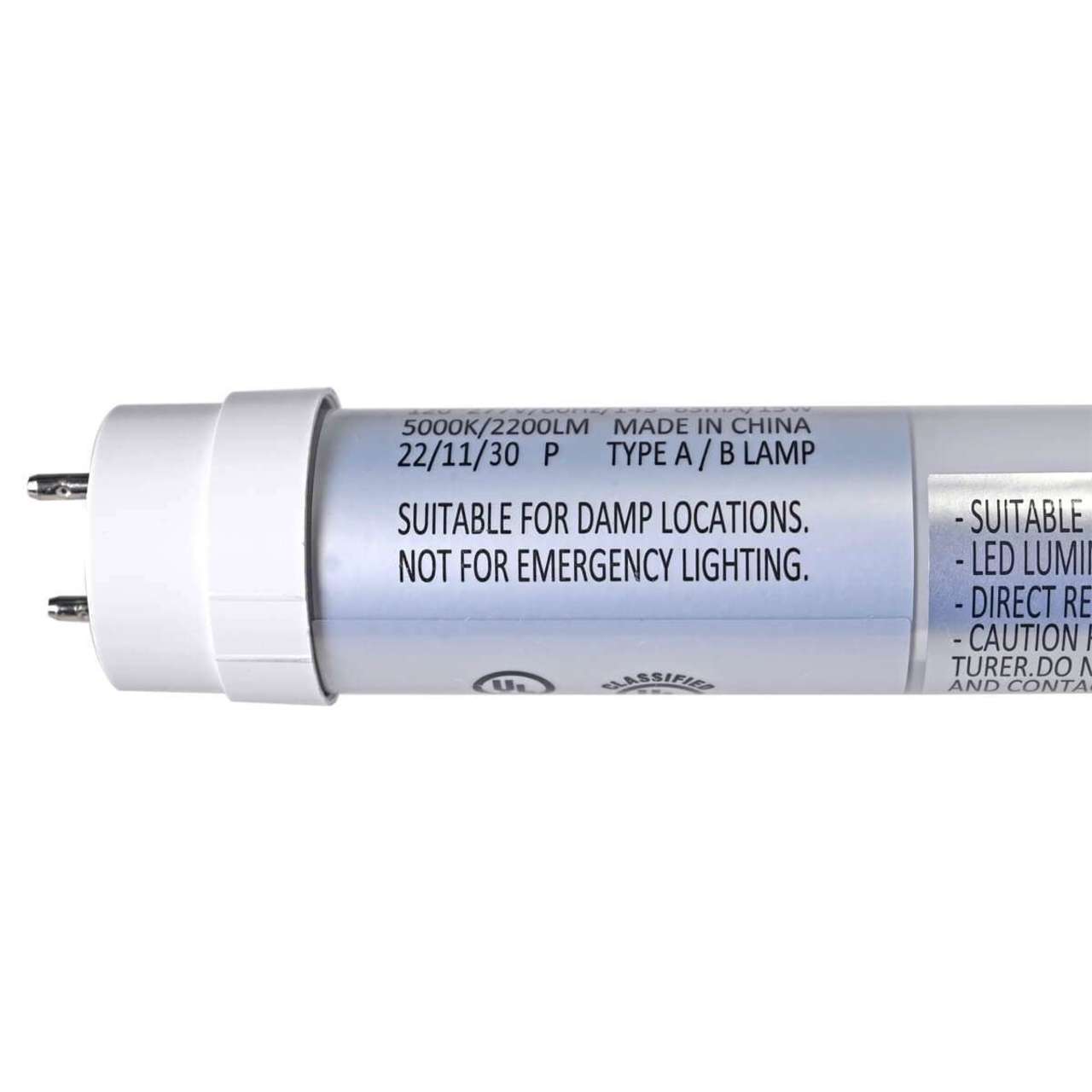

- Type A+B

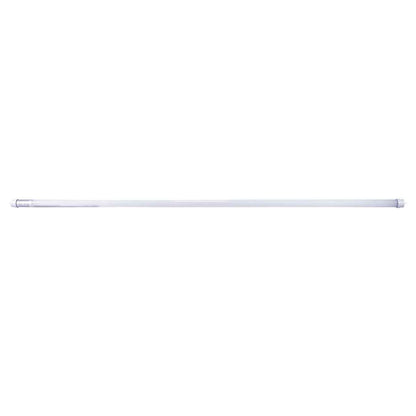

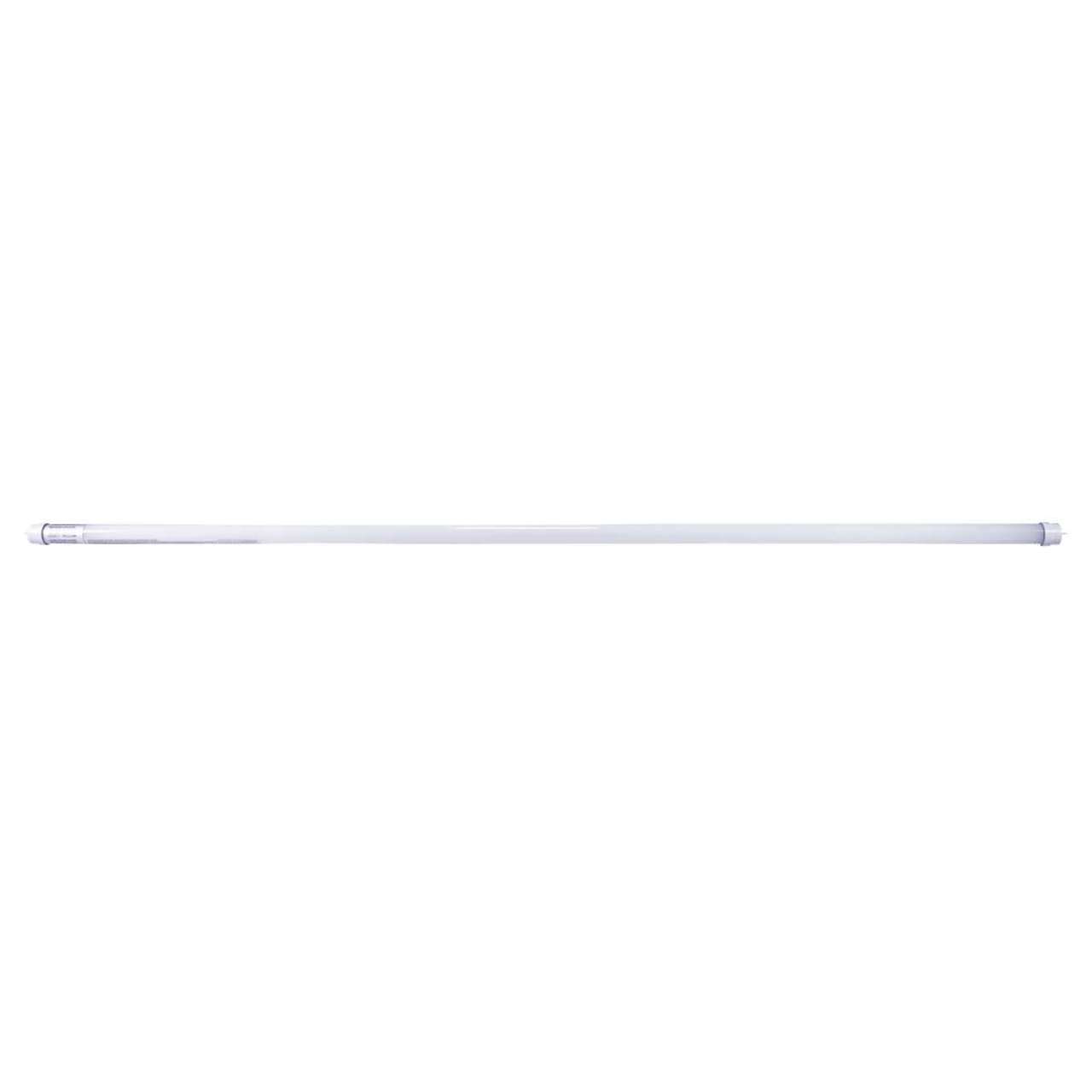

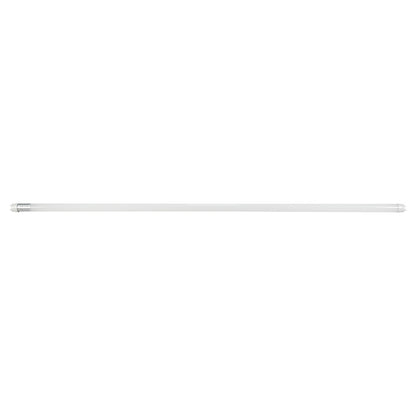

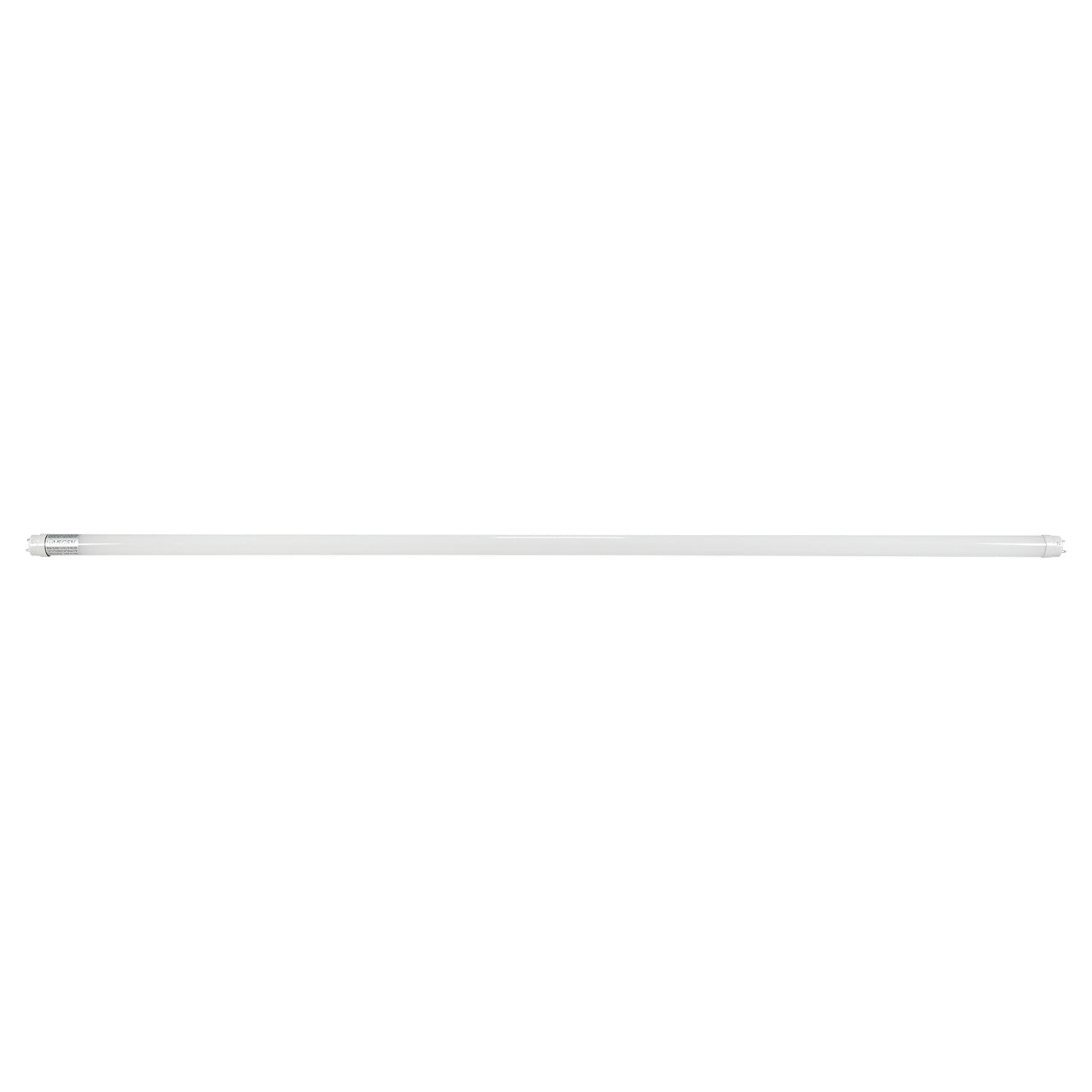

- 4ft. Length
- 15W
- 32W Fluorescent Tube Equivalent
- 2200 Lumens
- Dimmable (Phase-Cut) - requires specific dimmers - see spec sheet for more info
- Available in 3500K, 4000K, and 5000K Color Temperatures
- 240° Beam Angle
- AC120-277V Input Voltage
- Single & Double Ended Power
- Frosted Glass lens
- UL Listed, DLC Standard V5.1
- DLC QPL ID: 35K: S-DBLYFI | 40K: S-ER4BLA | 50K: S-TBC4IS
Utility Rebates
This LED tube is DLC Standard 5.1 rated and may be eligible for additional utility rebates in certain areas. Learn more about LED Rebates.
Discover the Benefits of Plug and Play LED Tubes
Plug and Play LED Tubes are here to stay! They make it easy to replace fluorescent tubes and upgrade your space with bright LED light. Plug and play tubes are easy to install. The process is easy as Step 1, 2, and 3.
- Turn off power to the light being changed before installation using the switch on the breaker panel.
- Remove the fluorescent tubes. Remember - Fluorescent tubes contain mercury and should be disposed of properly.
- Install the LED tubes and turn the power back on.
Please make sure to read the instruction manual of the LED tubes and fixture the tubes are being installed into as the above instructions may not be 100% correct per the specific tubes or product.
FAQs
Can you put led tube lights in a fluorescent fixture? Can I replace my fluorescent T8 linear bulbs with LEDs?
Yes! LED Tubes can be installed into a fluorescent fixture. When tubes are Type A + B. Type A or Type B, it is easy to replace those flickering fluorescents. A brief explanation of Type A and B LED linear tubes is below.
Type A LED Linear Tubes are often called "plug and play" tubes. This is because they can simply be installed into the existing fixture.
Type B LED Linear Tubes are often referred to as "ballast bypass." They work with all fluorescent fixtures including ballast-free fixtures. Type B linear tubes power goes directly to the lamp sockets and no longer through the ballast.
Type A + B can be used with or without a ballast. It is ultimately the buyer's preference what they want to do.
What does ballast bypass mean? How does ballast bypass work?
Ballast bypass means when installing the LED linear tube, the fixture's ballast will need to be removed first. The power will then go directly to the lamp sockets and no longer through the ballast. The benefits of ballast bypass LED replacement tubes include lights not being shut down by a ballast failure, no more ballast replacements, and savings on the energy bill because energy is no longer drawing from the ballast.
Need more lighting options? Explore flat panels, solar lighting, and more from LumeGen.
Product Specifications
| Certificate | Description |
|---|---|
UL Listed |
UL Listed refers to products that have been tested and certified by Underwriters Laboratories (UL). UL Listed LED lighting products have undergone meticulous testing to confirm compliance with standards like electrical safety and fire resistance. UL is recognized by OSHA as a NRTL and UL mark for lighting fixtures is the most prominent marks for lighting in the US. |
DLC Listed |
The DesignLights Consortium (DLC), sets criteria for energy-efficient LED products, ensuring they meet strict performance and efficiency standards. DLC Listed products meet baseline requirements and are eligible for rebates. |
